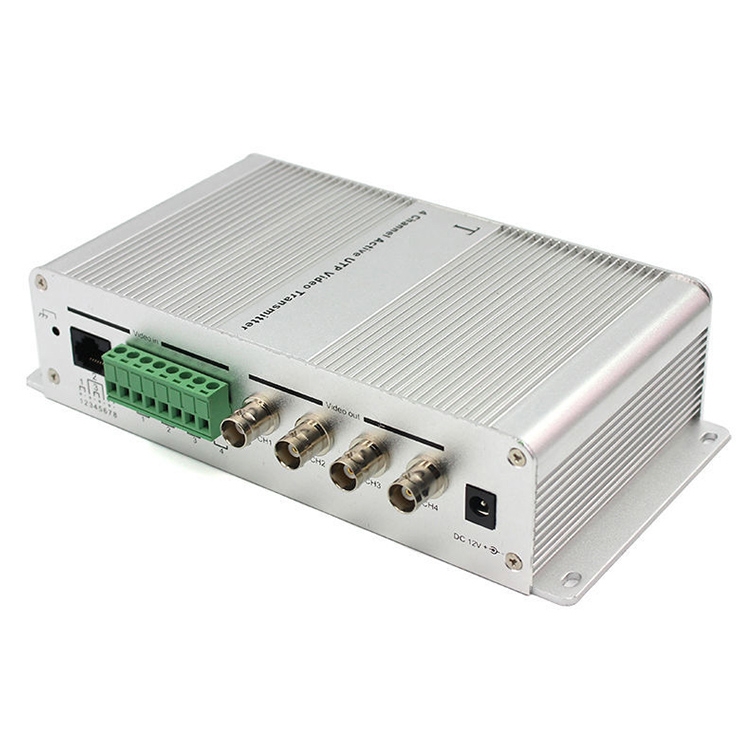

4 Channel Active UTP Video Transmitter
AED 283.94 AED 283.94
Description
1. Applicable to NTSC, PAL, SECAM and CCIR system.
2. Full motion CCTV video at distance up to 7200ft(2400m).

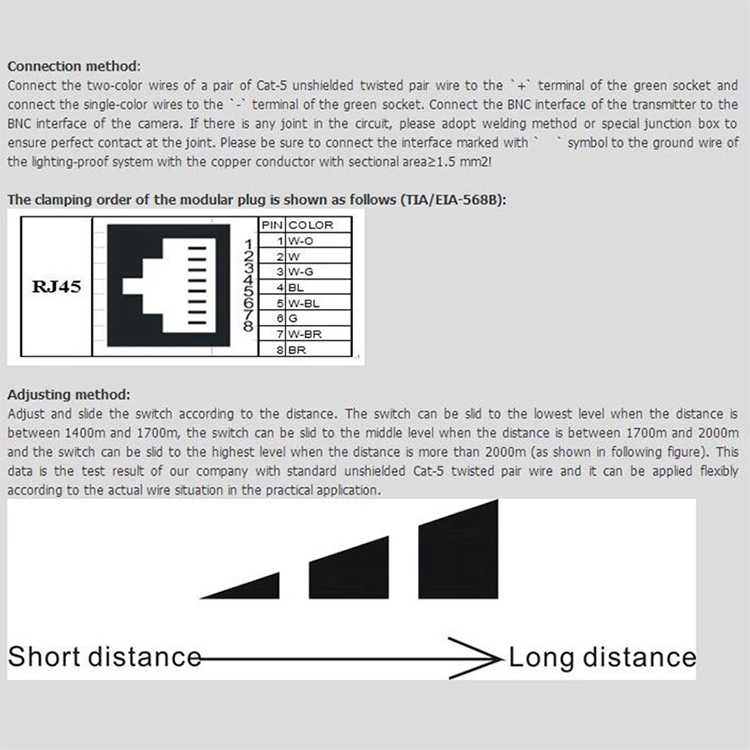

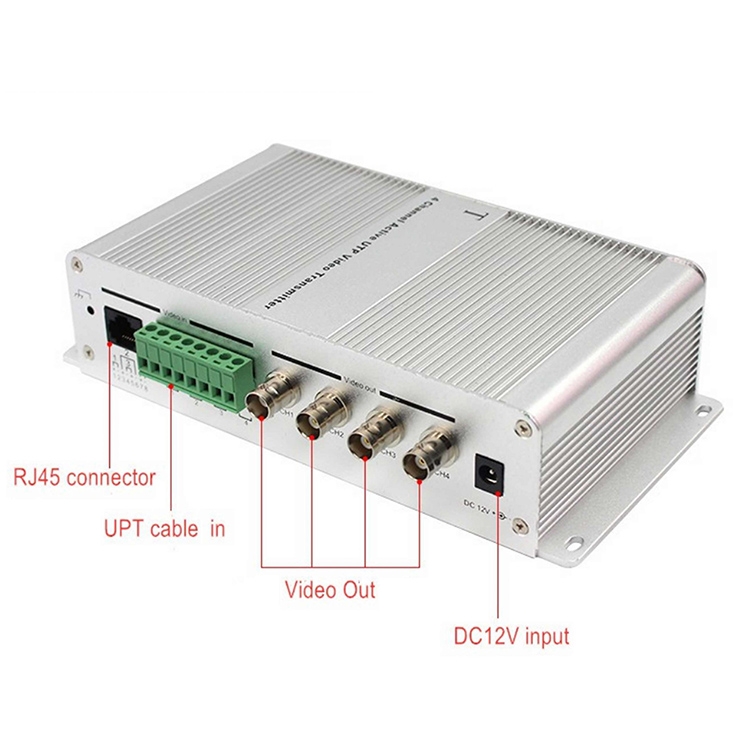

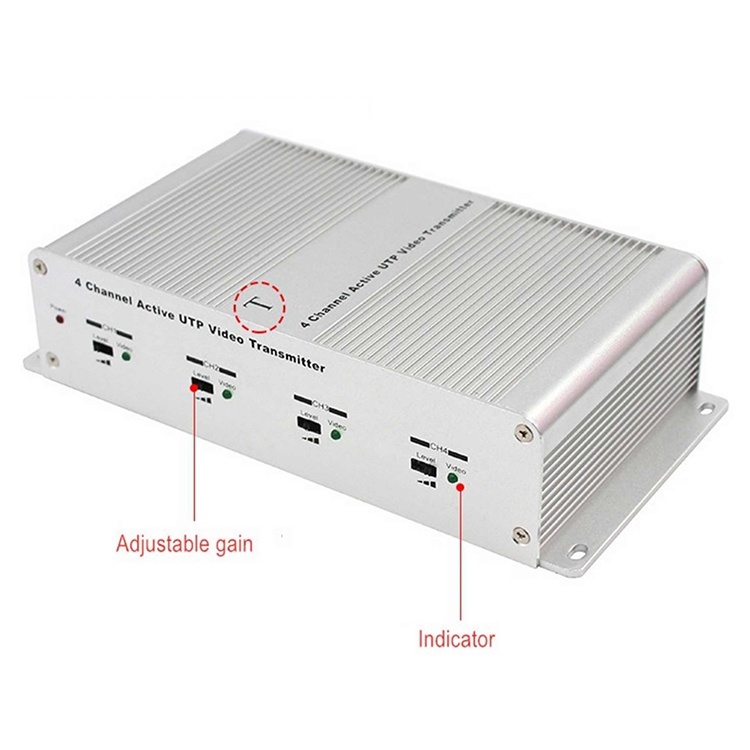

3. 18 pin RJ 45 socket, 8 position green terminal block, 4 BNC port, 4 “brightness”adjustable knob, 4 “sharpness” adjustable knob.
4. Applied for the occasions such as video monitoring and video meeting, can transmit four channels of video signal via 8 core cat-5 unshielded twisted pair wire.
5. Can receive balanced signal to convert it into unbalanced signal, and raise the receive signal with receiving effect well.
Specifications:
1. Product Name: 4 Channel UTP Video Transmitter
2. Channel: 4
3. Material: Metal
4. Frequency Response: DC-8MHz
5. CMRR: 60db
6. Impendance: BNC Terminal: 75Ohm; Connection Terminal: 100Ohm
7. Working Temperature: -10-70 degree C
8. Voltage: DC 12V
9. Current: Max.200mA
10. Characteristic Impendance: 100+/-20 Ohm
11. DC Loop Resistance: 18Ohm/100m
12. Size: 20 x 7 x 4.3cm
13. Color: Silver Tone
14. Weight: 579g
Specifications
Additional information
| Weight | 0.010 kg |
|---|---|
| Dimensions | 0.0 × 0.0 × 0.0 cm |
| Option | LLT-204, UTP101P, X202P, X202P-C, Video Transceiver, UL101P, 206C, D204, A213B-C, Transceiver, 203A, QC204, 411T, X204A, B101, A213A, UTP Transceivers, 351TR |
