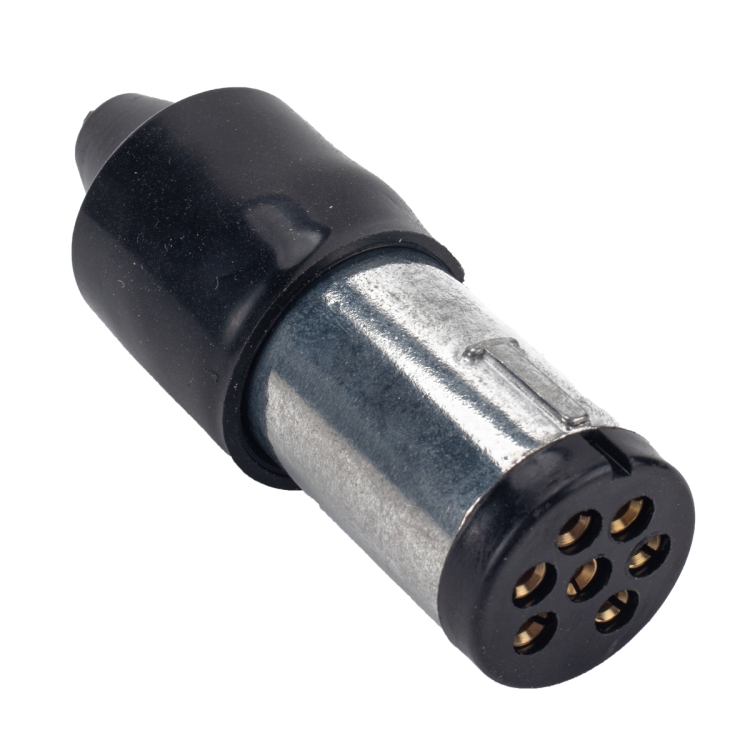

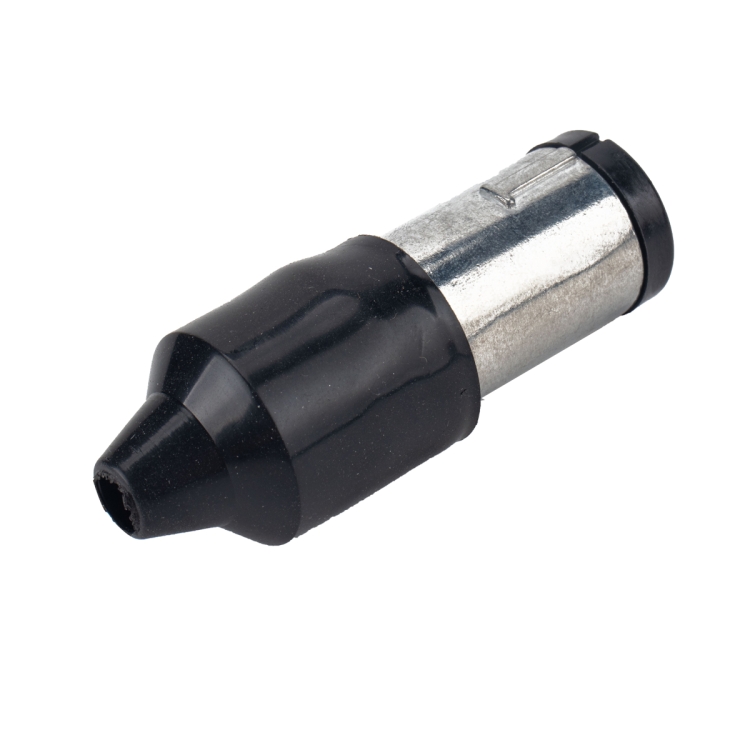

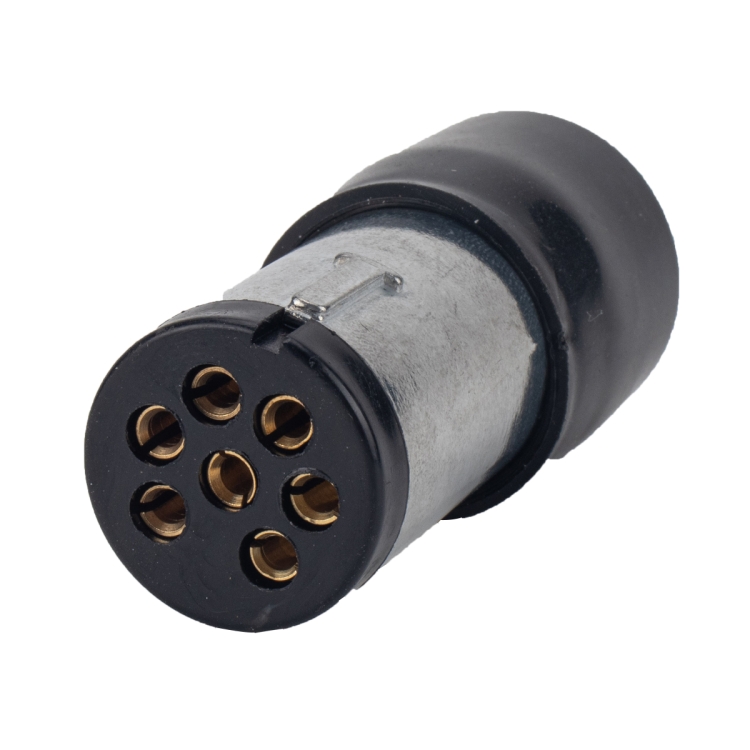

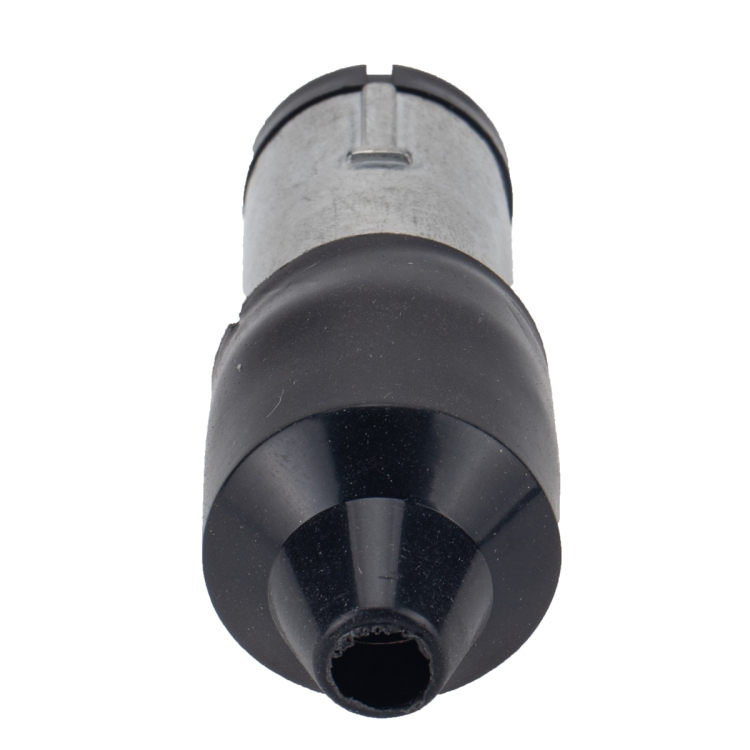

A4059 12V 7Pin Aluminum AU Plug Socket Wiring Connector Adapter Plug Socket for Trailer / RV
Roll over image to zoom in
Click to open expanded view

A4059 12V 7Pin Aluminum AU Plug Socket Wiring Connector Adapter Plug Socket for Trailer / RV

    AED 121.12 AED 121.12

    In stock

    Estimated Delivery: 24 Jun – 26 Jun (5–7 working days)
    SKU: EDA0013968 Category: Tags: , ,

    AED 121.12 AED 121.12

    Description

    1. Function: connect and transmit the electric signal between the tractor and the towed vehicle
    2. Installation position: between the conductive tractor and the towed vehicle
    3. Scope of application: commercial vehicles/trailers/RVs/cars/ships, etc.
    4. Parameters:
    Material: Aluminum + Copper
    Voltage: 12v
    Power: 2w
    Waterproof rating: IP67
    Number of needles: 7
    5. Connection method:
    PIN 1-yellow wire (left turn signal light display)
    PIN 2-black wire (reversing signal light display)
    PIN 3-White wire (ground)
    PIN 4-green wire (right turn signal light display)
    PIN 5-blue line (service brake display)
    PIN 6-red wire (brake light display)
    PIN 7-brown wire (rear light, illuminator and side light display)

    Specifications

    Additional information

    Weight0.104 kg

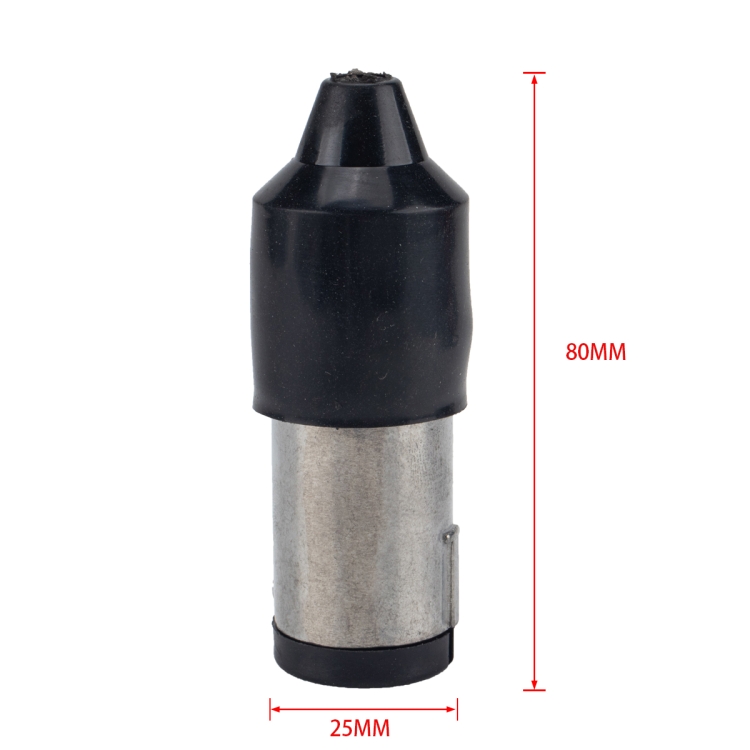

    Dimensions8.0 × 4.0 × 4.0 cm
