Expand your laptop into a fully functional workstation with the Thunderbolt™* 5 dock that supports the fastest bandwidth speeds of up to 80Gbps with 120Gbps†Bandwidth Boost​, triple displays up to 4K@144Hz**, and up to 140W Power Delivery to your host device. Designed for your most demanding creative or productivity needs, it provides 14 ports to expand your laptop's capabilities for video, data, charging and Ethernet.
Estimated Delivery: 10 Aug – 12 Aug (5–7 working days)

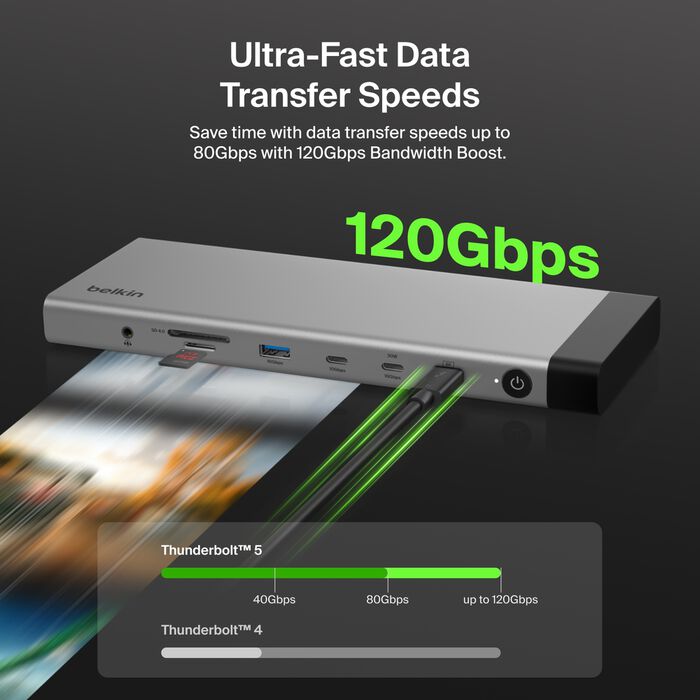

Experience Thunderbolt 5 certified ultra-fast bandwidth speeds up to 80Gbps with 120Gbps Bandwidth Boost†for your data transfer and video needs
Expand your laptop’s capabilities up to 14 ports for video, data, charge and Ethernet
Work in crystal clear definition with triple extended displays** up to 4K@144Hz and 8K@60Hz

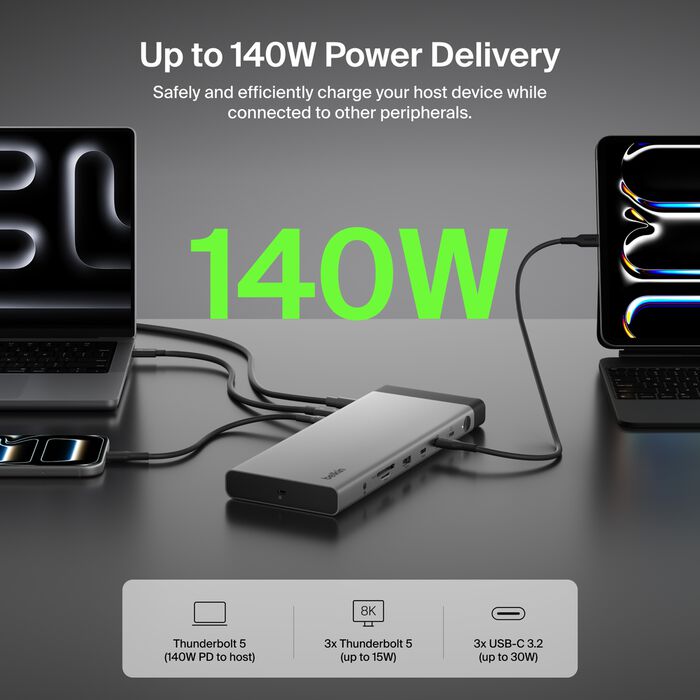

Deliver up to 140W Power Delivery to your host device and other devices simultaneously

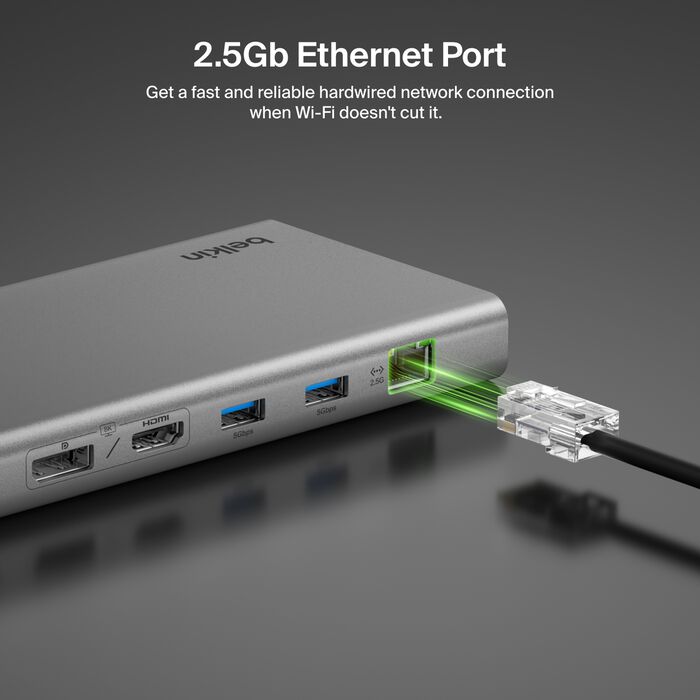

Rely on 2.5Gb Ethernet port for hardwired network connection
Daisy-chain up to six Thunderbolt devices with tidier setup

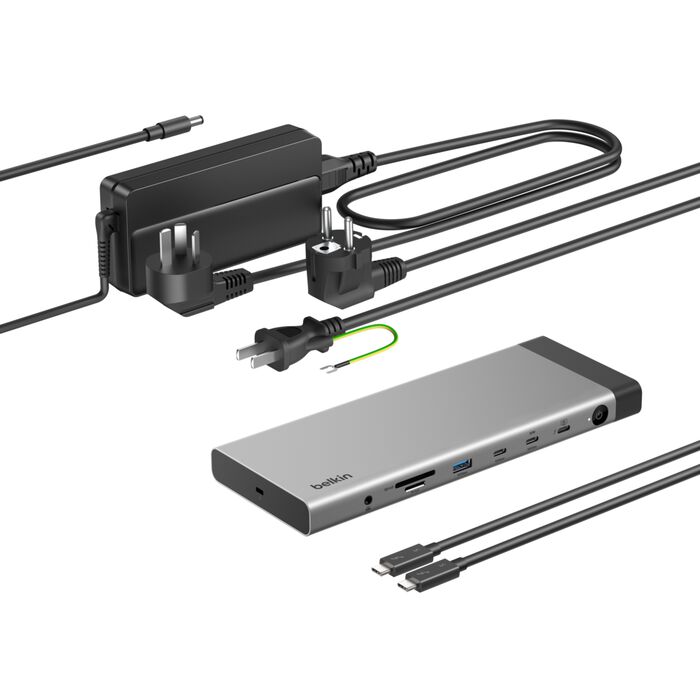

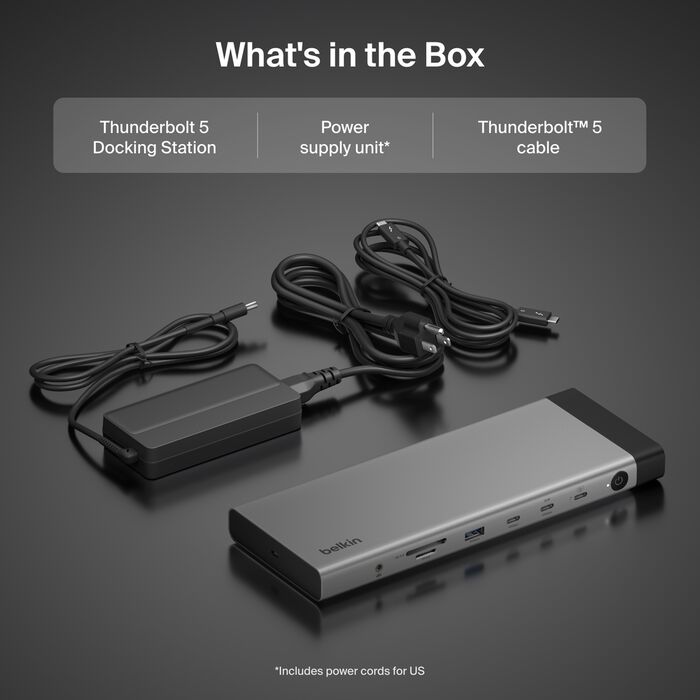

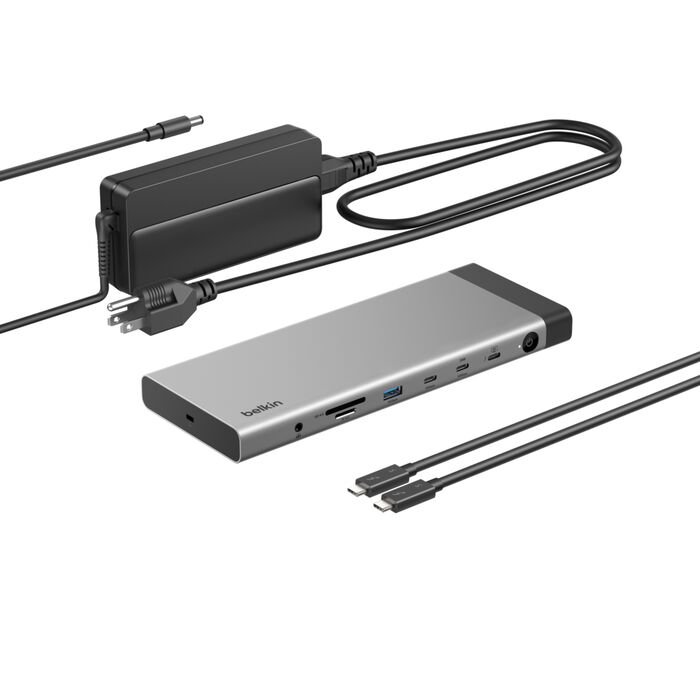

Thunderboltâ„¢ 5 Dock
180W PSU
3.3 ft./1m Thunderboltâ„¢ 5 Cable

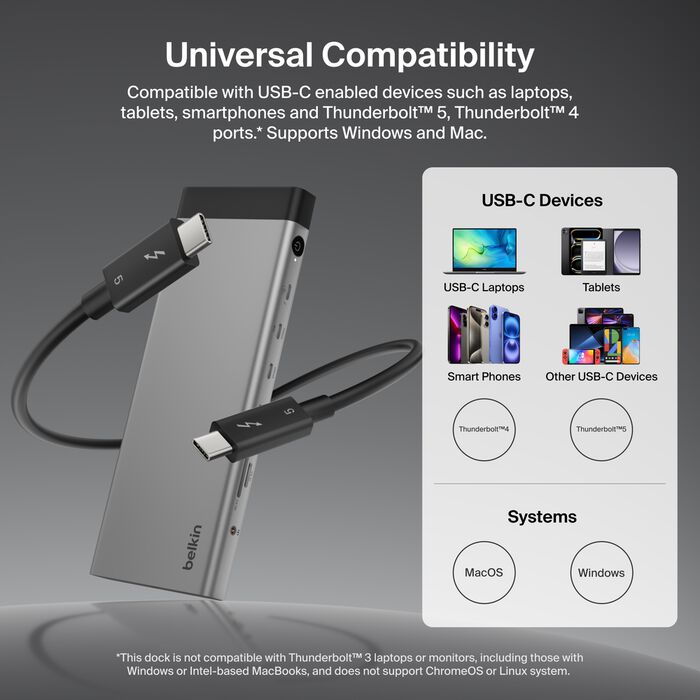

Compatible with USB-C enabled devices such as laptops, tablets, smartphones and Thunderbolt™5, and Thunderbolt™4 ports Supports Windows, Mac and Chrome OS. Scan for product details.​
Integrated/Included Cable Length
Thunderbolt 5 Cable: 3.3 ft./1m
PSU Cable: 3.3 ft./1m
Dimensions (LxWxH)
8.74 in./222mm (L) x 3.35 in./85.09mm (W) x 0.79 in./20.06mm (H)

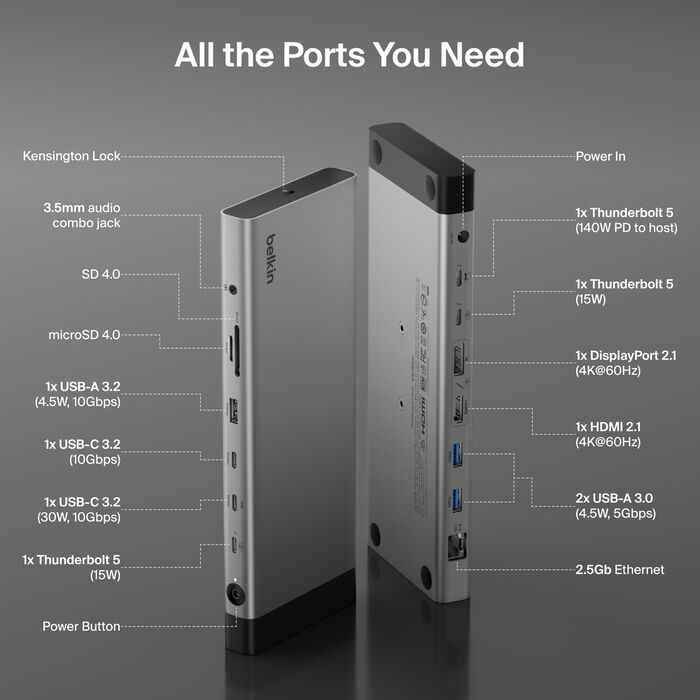

Ports
Thunderboltâ„¢ 5 140W PD (to host)
2x Thunderbolt 5 (15W) ​
USB-A 3.2 (4.5W, 10Gbps) ​
2x USB-A 3.0 (4.5W, 5Gbps) ​
USB-C 3.2 (10Gbps) ​
USB-C 3.2 (30W, 10Gbps) ​
DisplayPort 2.1 (4K@60Hz)​
HDMI††2.1 (4K@60Hz)​
2.5Gb Ethernet ​
3.5mm audio combo port​
microSD 4.0​
SD 4.0
OS
Windows
Video Port
Thunderbolt 5 #1
Thunderbolt 5 #2
DisplayPort
HDMI
Single
8K@60Hz/4K@240Hz
8K@60Hz/4K@240Hz
8K@60Hz/4K@240Hz
8K@60Hz/4K@240Hz
Dual
8K@60Hz
4K@60Hz
8K@60Hz
4K@60Hz
4K@60Hz
8K@60Hz
Triple
4K@144Hz
4K@144Hz
4K@144Hz
4K@144Hz
4K@144Hz
4K@144Hz
Windows:
1) Thunderbolt 5 Laptops can achieve the maximum resolution.
2) Thunderbolt 4/USB4 Laptops: only 2 video streams max. First plug in, first served.
OS
Mac
Video Port
Thunderbolt 5 #1
Thunderbolt 5 #2
DisplayPort
HDMI
Single
6K@60Hz/4K@240Hz
6K@60Hz/4K@240Hz
6K@60Hz/4K@240Hz
4K@60Hz
Dual
4K@240Hz
4K@144Hz
4K@240Hz
4K@144Hz
4K@240Hz
4K@60Hz
Triple
4K@144Hz
4K@144Hz
4K@144Hz
4K@144Hz
4K@144Hz
4K@60Hz
macOS:
1) M1/M2/M3 supports one external display.
2) M1 Pro/Max, M2 Pro/Max, M3 Pro/Max, M4 Pro/Max, M4, and M5 support up to dual extended displays.
3) Only 2 video streams max, first plug in first served.
4) M5 Pro/Max can support triple extended displays.
