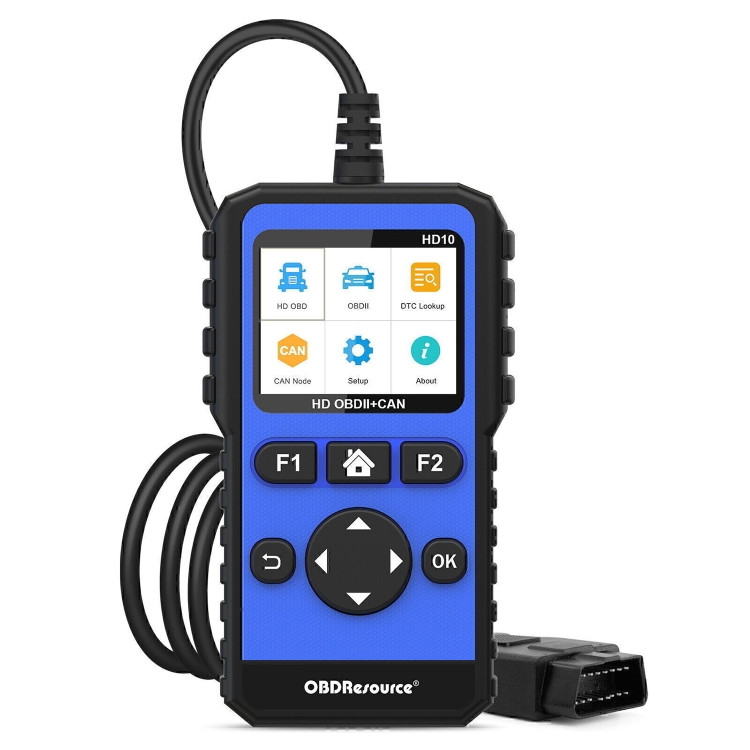

HD10 12V-24V 2 in 1 Full Systems Diagnostic Scan Tool OBD2/HDOBD/EOBD Scanner

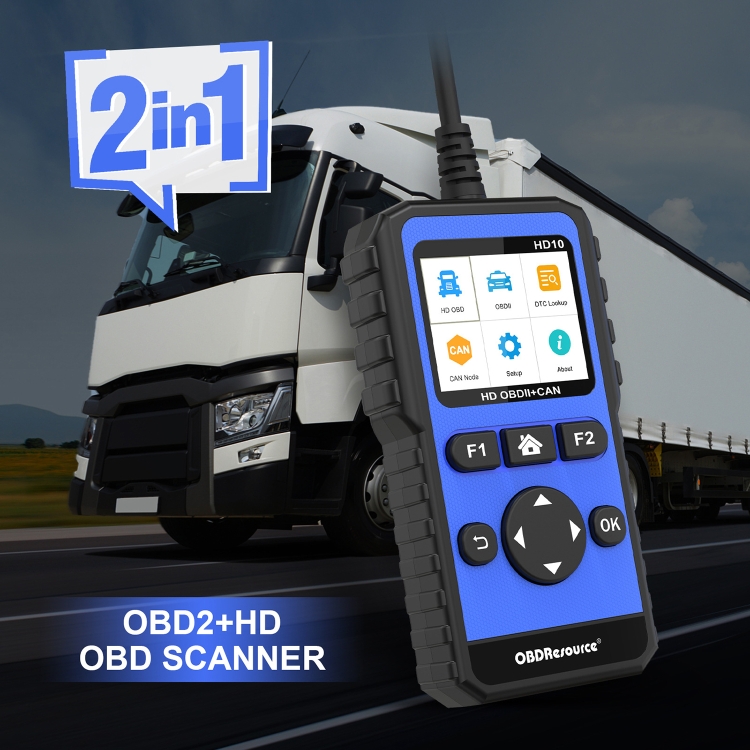

1.Truck and Car 2 in 1: Car diagnostic tools are designed for detecting HDOBD and OBDII/EOBD vehicles. It is suitable for all 12V and 24V vehicles.
2. Full Systems Support for Heavy Trucks: Suitable for all systems for 24V diesel vehicles, such as Engine, Transmission, Drivetrain, Suspension, ABS, ESP, Cluster, E-xhaust, P-articular, Suspension, Braking System, Cab Climate, Body Control, Instrument Panel, Fuel System, etc. Supports read and clear DTC, live data, ECU information for truck all systems.
3. Support full 9 modes OBDII Diagnostics for cars
4. Supported protocols for Cars:
– SAE J1850 PWM (41.6 Kbaud)
– SAE J1850 VPW (10.4 Kbaud)
– ISO 9141-2 (5 baud init,10.4 Kbaud)
– ISO 14230-4 KWP (5 baud init,10.4 Kbaud)
– ISO 14230-4 KWP (fast init,10.4 Kbaud)
– ISO 15765-4 CAN (11bit ID,500 Kbaud)
– ISO 15765-4 CAN (29bit ID,500 Kbaud)
– ISO 15765-4 CAN (11bit ID,2500 Kbaud)
– ISO 15765-4 CAN (29bit ID,250 Kbaud)

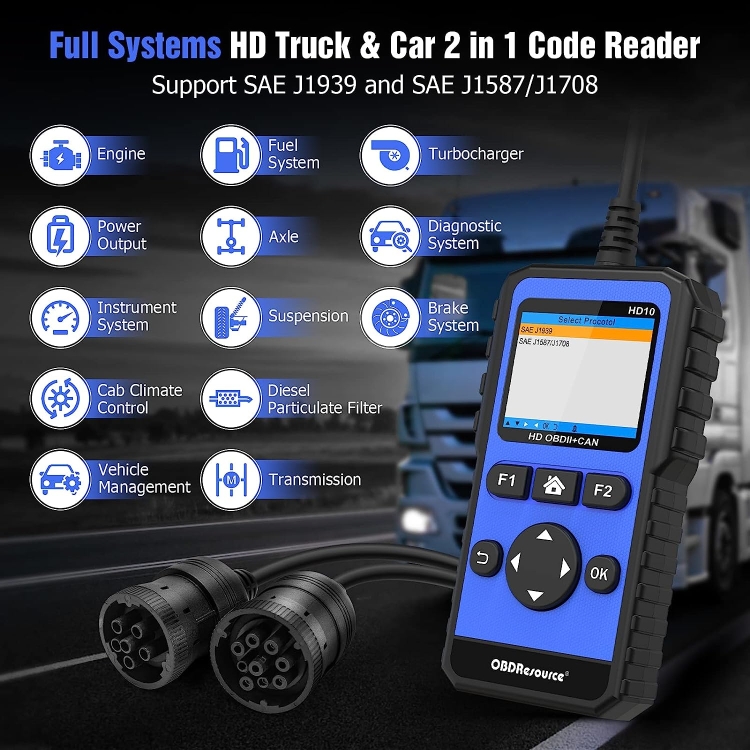

5. Support Universal Truck Multi-systems diagnosis:
– Read codes and erase code for trucks engine/ ABS / brake / airbag / transmission / EPS / fuel multi-systems

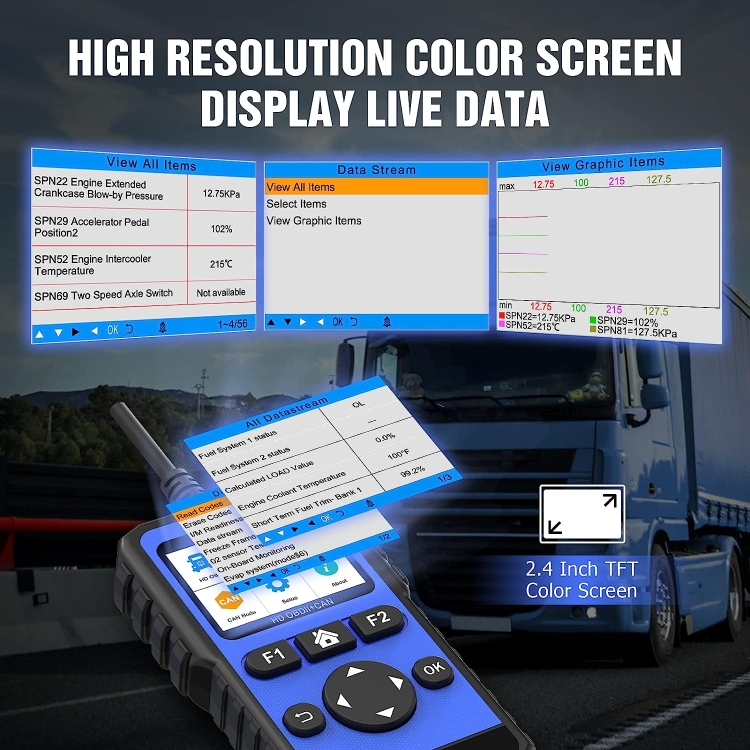

– Sensor live data stream for multiple systems
– Support DPF regeneration: for Maxxforce, Detroit, Cummins, ISUZU, HINO HD Truck.
– Support Oil Service Light Reset: for Maxxforce, Detroit, Cummins.

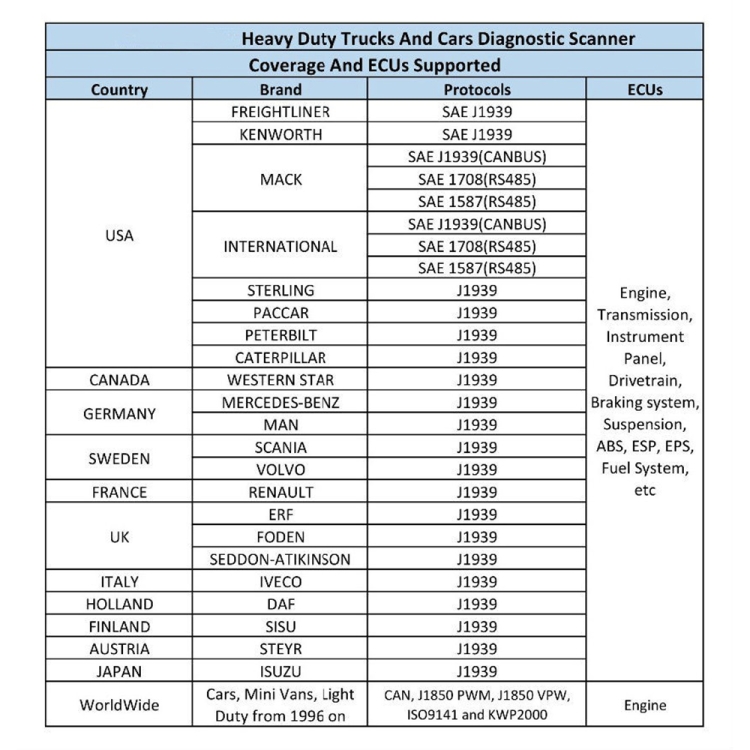

6. Supported protocols for Trucks:
– J1939
– J1587/1708(6/9PIN)
– J1587/1708(16PIN)
