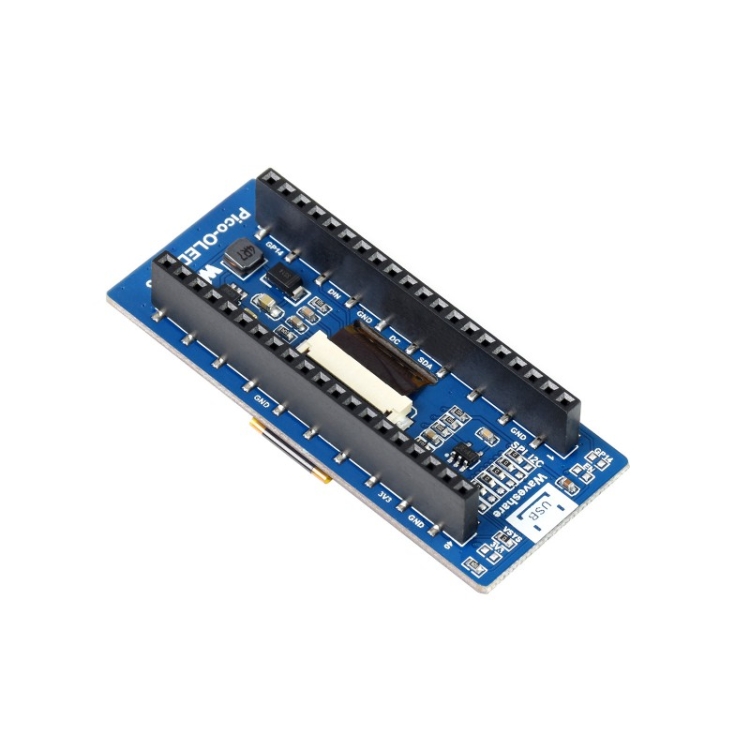

WAVESHARE 128 x 32 Pixel 2.23 inch OLED Display Module for Raspberry Pi Pico, SPI/I2C
Roll over image to zoom in
Click to open expanded view

WAVESHARE 128 x 32 Pixel 2.23 inch OLED Display Module for Raspberry Pi Pico, SPI/I2C

    AED 140.25 AED 140.25

    In stock

    Estimated Delivery: 2 Jul – 6 Jul (5–7 working days)
    SKU: DIY0210 Category: Tags: , , ,

    AED 140.25 AED 140.25

    Description

    1. Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate

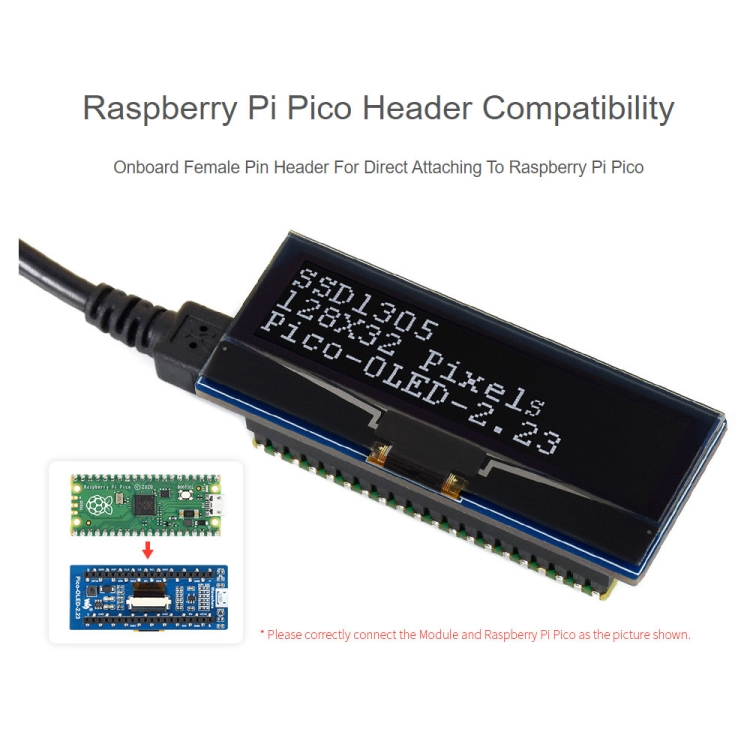

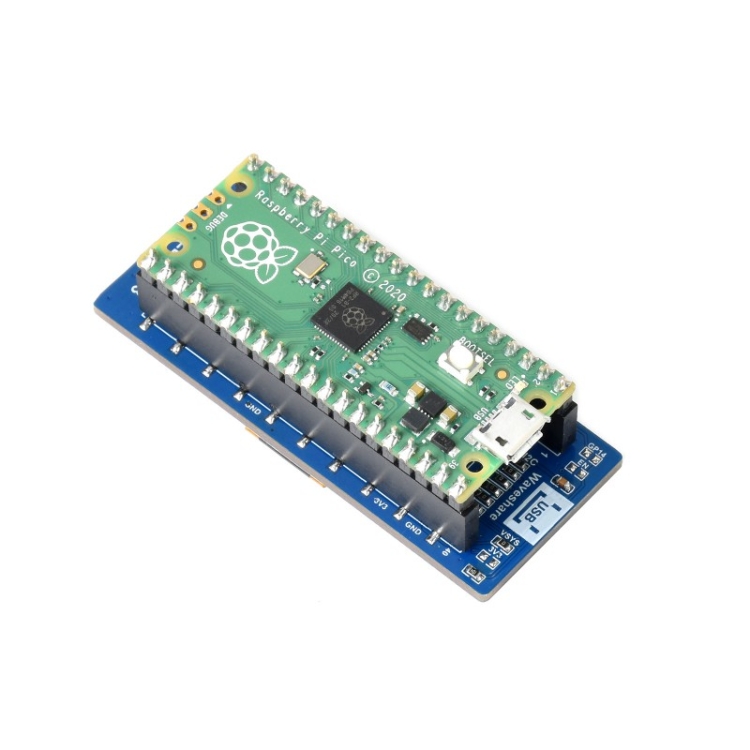

    2. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
    3. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

    Specification
    1. Operating voltage: 3.3V / 5V, Logic voltage: 3.3V
    2. Resolution: 128×32 pixels
    3. Viewing angle: Greater than 160 degree
    4. Communication interface: 4-wire SPI, I2C
    5. Display panel: OLED

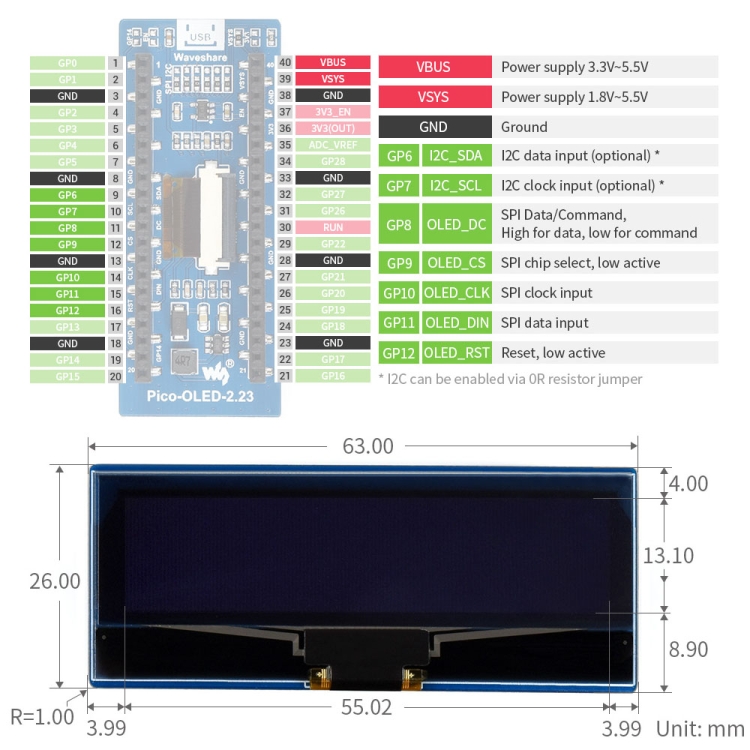

    6. Display size: 55.02 x 13.10mm
    7. Pixel size: 0.41 x 0.39mm
    8. Driver: SSD1305
    9. Size: 52.00 x 25.00mm

    Specifications

    Additional information

    Weight0.029 kg
    Dimensions15.0 × 12.0 × 2.0 cm
