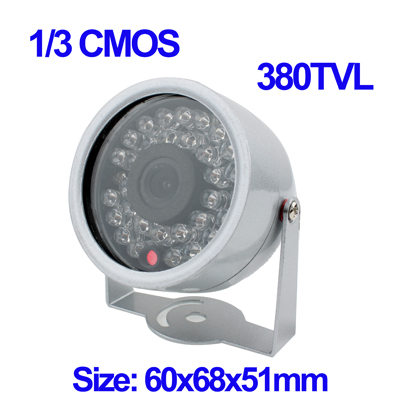

Name: 1/3 CMOS Color 380TVL 30 LED Mini Waterproof Camera
SKU: S-SPC-0716
Availability: InStock

* Main Features

-Low power consumption, low cost

-Use in TV meeting, picture phone, visible doorbell, PC multimedia playing, treatment instrument, etc.

-Output pattern: CCIR/ELA (PAL/NTSC)standard visual frequency signal

-Camera lens focus and visual angle: 6mm, 93 DEGREE

-Differentitating rate: 380TV line

-Supply voltage/power consumption: 9V 100mA

* Specification

-Camera shot: 1/3 picture sensors

-TV System: PAL/CCIR NTSC/EIA

-Effective element:

PAL: 628×582

NTSC:510×492

-Picture area:

Pal: 5.78×4.19

NTSC: 4.69×3.45

-Definition: >= 300lines

-Scanning frequency: PAL/CCIR:50HZ NTSC/EIA:60HZ

-Minimum illumination: 0LUX

-Scan frequency: +18Db-AGC ON-OFF

-Signal Noise Ratio: >= 40dB

-Electronic Shutter Time: 1/60 ~ 1/15000 second

-Noise: <0.03% peak value

-Power supply: DC +6V ~ 9V

-Power consumption: =< 640mW

-Size: 60x68x51mm

Additional information

Weight	0.010 kg
Dimensions	0.0 × 0.0 × 0.0 cm
Color
Option	38KZ-CM58A, 3M51Y-ICR, 3M51DT-ICR, CMOS 380TVL 101, CMOS 380TVL 802, CMOS 380TVL, CMOS Color 380TVL, 3071Z 420TVL, 420TVL 50m, 420TVL, 1 / 3 420TVL, 500TVL, 3086P 520TVL, 600TVL, 3033KS 650TVL, 6075S 650TVL, 3086P 650TVL, 1 / 3 650TVL, 650TVL, 3071Q 700TVL, 3071Z 700TVL, 3086P 700TVL, 700TVL, 700TVL Array, 800TVL, 1000TVL, 3033KS, 3033KS 420TVL, 3033KS 700TVL, 3033KS Sony, SF-3033Q, 3038K 700TVL, 3038K 520TVL, 3038K 420TVL, 3038K, 3071Q, 3071Q 600TVL, 3071Q 420TVL, 3071Q Sharp, 3071Z 650TVL, 3071Z, 3071Z Sony, 3089 700TVL, 6075S, 6075S Sony, 6075S 420TVL, 6075S SHARP, VW-8416, VW-8426, VW-8666, VW-86710, VW-86810
