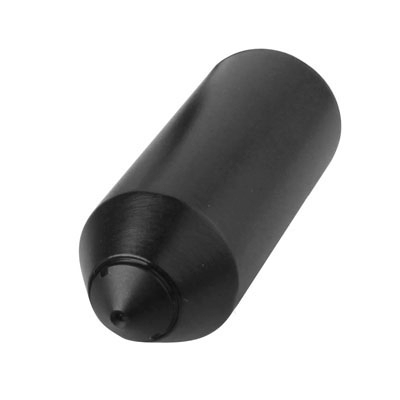

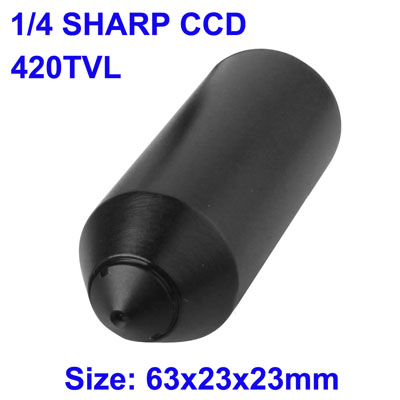

1/4 SHARP Color 420TVL Mini CCD Camera, Mini Pin Hole Lens Camera, Size: 63 x 23 x 23mm
AED 263.48
Estimated Delivery: 6 Feb – 12 Feb (3–7 working days)
Description
3.7mm Mini pin hole lens camera
1) Adopt Sharp low illumination CCD, max horizontal resolution reach 420TVL
2) Mini pin hole lens camera
3) Industrial design and production, precise circuit & structure
4) Unique design, with bracket for easy installation
** Specification:
1) CCD Type: 1/4″ Sharp CCD
2) Pixels: PAL: 500H x 582V NTSC: 510H x 492V
3) Scanning System: PAL/NTSC
4) Horizontal Resolution: 420TVL
5) Minimum Illumination: 1.0LUX/F1.2
6) S/N Ratio: ≥48dB
7) Video Output: 1.0Vp-p/75Ω
8) AGC: Auto
9) Backlight Compensation: Auto
10) Exposure Mode: EE
11) Electronic Shutter: PAL: 1/50-1/100000sec, NTSC: 1/60-1/100000sec
12) Gamma Correction: 0.45
13) Sync. System: Internal Synchronization
14) Lens: 3.7mm Standard
15) Audio: Optional
16) Power Supply: DC12V ± 5%
17) Operation Temperature: -10℃–50℃
18) Size: 63 x 23 x 23mm
Specifications
Additional information
| Weight | 0.160 kg |
|---|---|
| Dimensions | 0.0 × 0.0 × 0.0 cm |
| Color | |
| Option | 380TVL 208A, 380TVL 103, 380TVL 208, 380TVL 105, 380TVL 203, 380TVL 107, 380TVL, 420TVL, 650TVL, 420TVL UM-M880Z, 600TVL, 500TVL, 520TVL, 420TVL Mini, SHARP 420TVL, Y8, CC2, EC11-I6, EC11-I6 White, EC10-I6 Black, EC10-I6 White, C8-G6 Black, V380, C6, H11 Black, H11 White, H9 DV Black, H9 DV White, H9 Black, H9 White, H6 WiFi, H6 |
