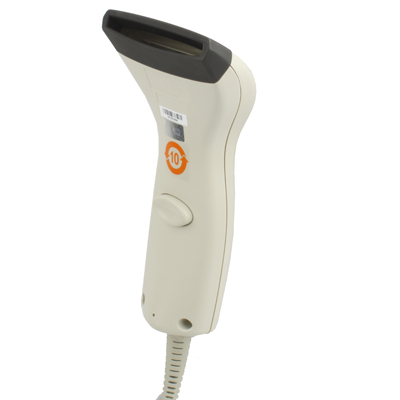

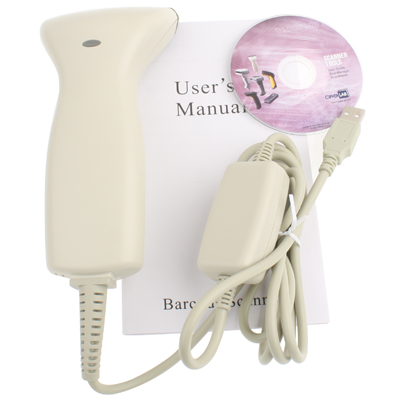

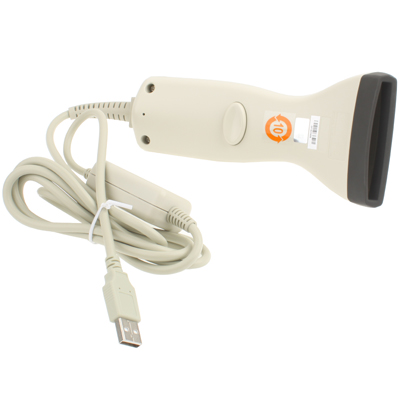

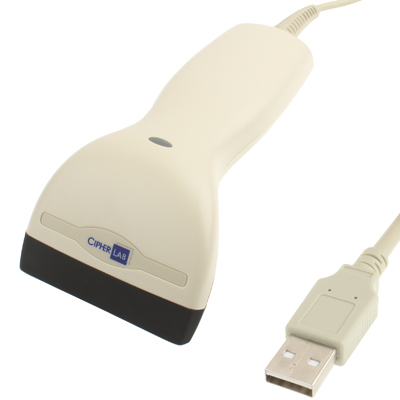

1000 CCD Scanner USB HID

1) Highlight

2) Simple installation and ideal for use in a wide range of situations and workplaces

3) Various decode type

* Performance

1) Light Source type: Visible laser diode.

2) Light Source: RED LED 660nm

3) Scan Rate: 100 scans per second

4) Resolution：0.125mm

5) Reading Distance: 0-30mm

6) Scanning angle：Elevation angle 40º -70º

7) Decode Capability： EAN-8，EAN-13，UPC-E，Code39，Code93，Code128，EAN128，Codaber，Industoal2of5，Interleave2of5，Matrix2of5，MSI，China post code

8) Interfaces Supported：RS232，PS2，USB

9) error rate：1/1 000 000

10) Instructions：Buzzer and indicator light

11) Scan mode：Manually operation

* Power

1) Power：+5V ±10%

2) Working current：85/75mA

3) Quiescent current： 40mA

4) Electromagnetic compatibility：CE&FCC DOC compliance

* Working Environment:

1) Operating temperature：0°C—50°C

2) Storage Temperature： -20°C -60°C

3) Relative Humidity：20% -90%（non condensing）

4) Ambient brightness： Max.4000Lux（fluorescent light）

5) Shock: 1.5mm drop on concrete surface
