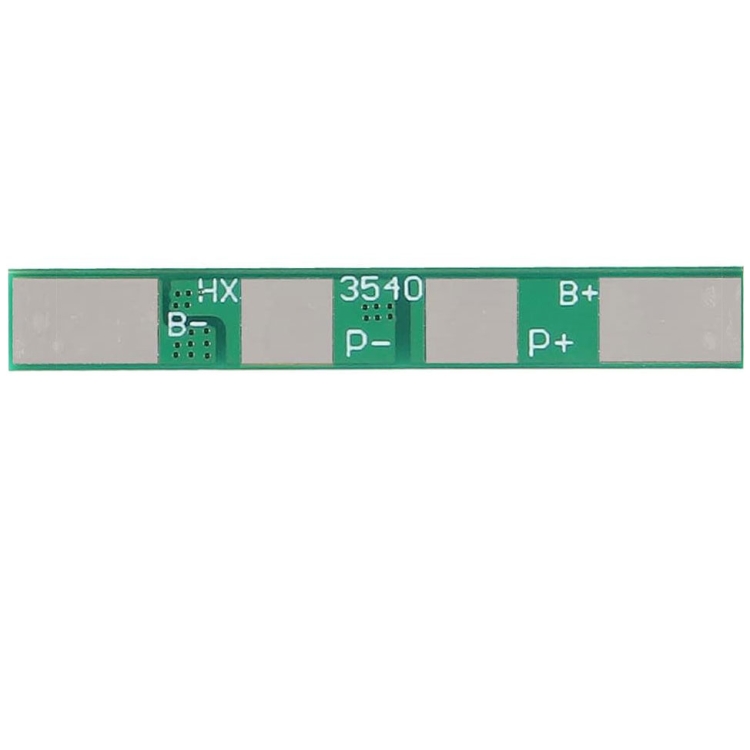

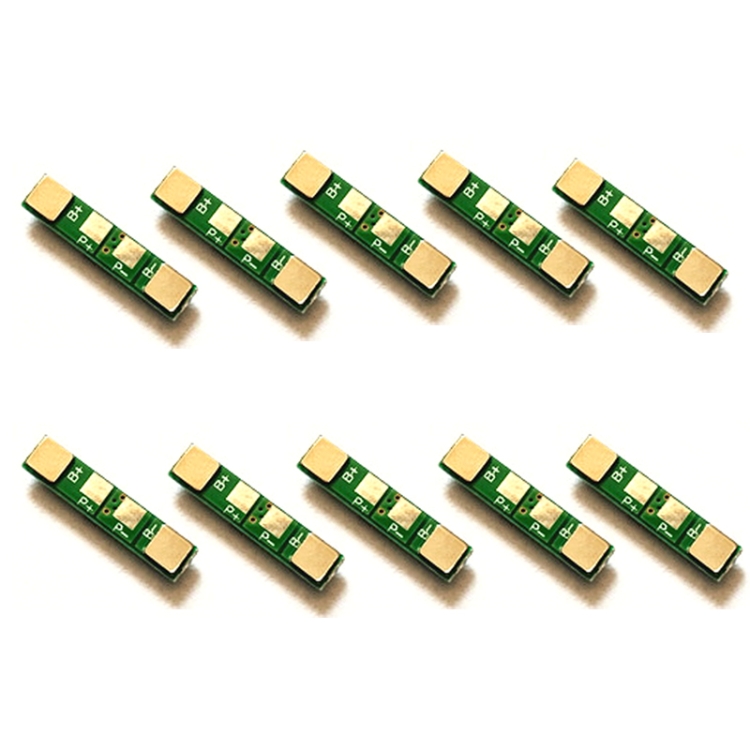

10pcs 3.7V Lithium Battery Protection Board Polymer Overcharge and Overdischarge Protection Board

Parameter:
1. After connecting, it needs to be charged for a while before outputting
2. Charging voltage: DC4.2V
3. Continuous discharge current: 4A
4. Overcharge detection voltage: 4.28V
5. Overcharge detection delay time: 1S
6. Overcharge recovery voltage: hysteresis overcharge detection voltage 0.2V
7. Over-discharge detection voltage: 2.8V
8. Over-discharge detection delay time: 128ms
9. Over-discharge recovery voltage: 3.0V
10. Overcurrent detection voltage: 200mv
11. Overcurrent detection current: 4A
12. Delay time of overcurrent detection: 12ms megohm
14. Working temperature range: -40 to 50 degrees Celsius
15. Size: 15×3.1mm

Kind tips:
1. Because (lithium battery protection board) belongs to the particularity of semi-finished products in electronic products; be sure to understand the wiring diagram before assembly; avoid wrong wiring
2. Incorrect wiring or unintentional contact of wire ends with components may cause damage
