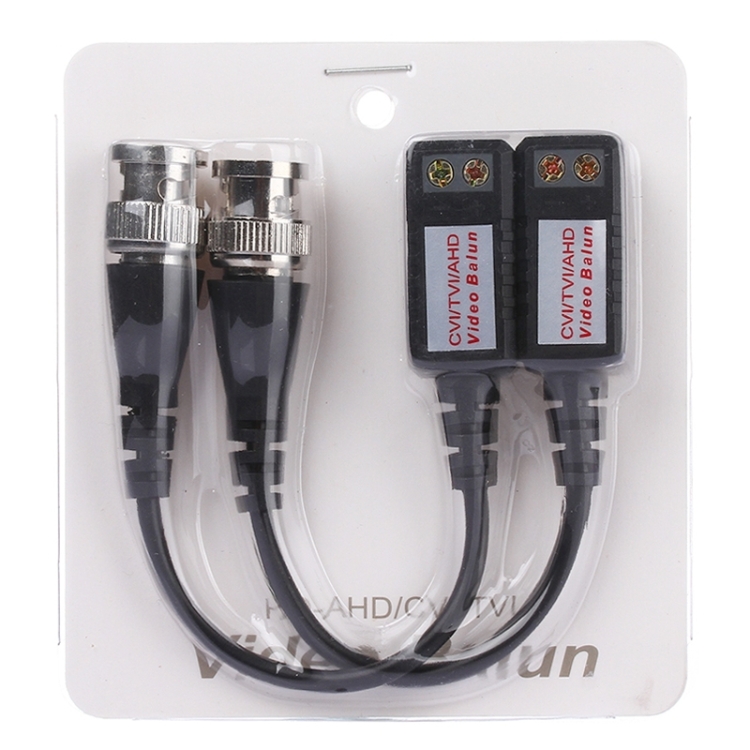

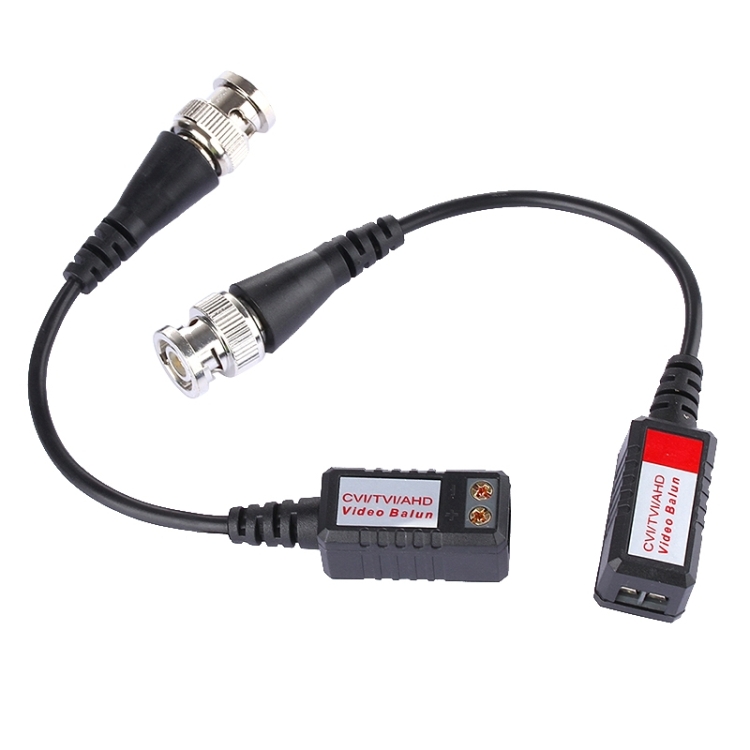

2 PCS 202P-HD Enhanced Version Coaxial CVI/TVI/AHD 1CH Passive Transceiver Video Balun
AED 114.76 AED 114.76
Estimated Delivery: 5 Feb – 11 Feb (3–7 working days)

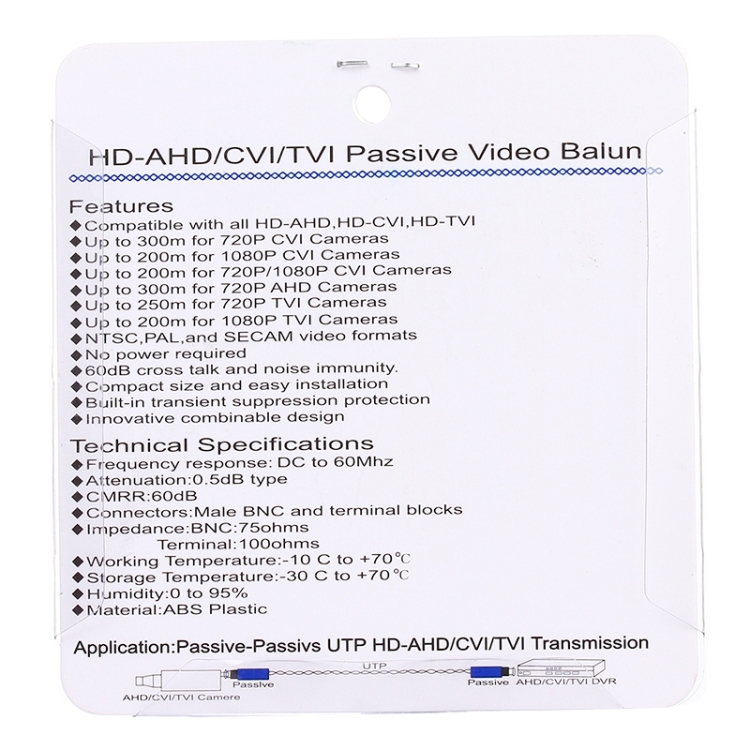

Description
1. Compatible with all HD-CVI, HD-TVI, HD-AHD.
2. Up to 300m for 720P CVI Cameras.
3. Up to 200m for 1080P CVI Cameras.
4. Up to 200m for 720P/1080p CVI Cameras.
5. Up to 300m for 720P AHD camera.
6. Up to 250m for 720P TVI camera.
7. Up to 200m for 1080P TVI Cameras.
8. NTSC, PAL, and SECAM video formats.
9. No power required.
10. 60dB cross talk and noise immunity.
11. Compact size and easy installation.
12. Built-in transient suppression protection.
13. Frequency response: DC to 60MHZ.
14. Attenuation: 0.5dB type.
15. CMRR: 60dB.
16. Impedance: BNC: 75ohms, terminal: 100ohms.
Specifications
Additional information
| Weight | 0.067 kg |
|---|---|
| Dimensions | 9.5 × 8.200000000000001 × 1.5 cm |
| SKU | |
| Option | 4 Channel Processor, 202P-HD, 202C-HD, HD3015, TGP001, 1-CH, 202E, 4 CH UTP, 8 Channel, HD208F, 8 CH UTP, 206A, 205C, Passive Video Balun, 302B, Video Balun, 213A, S-Video / BNC |
