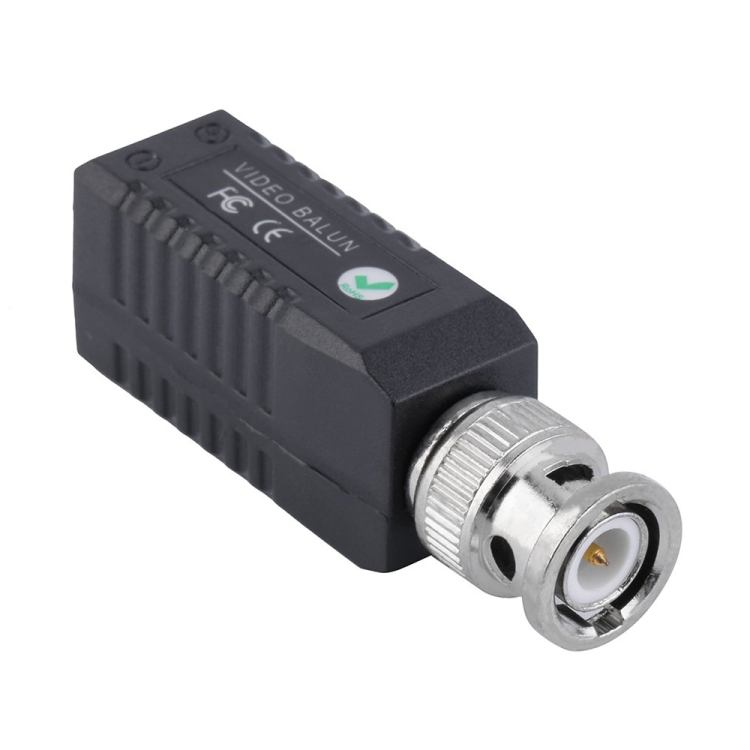

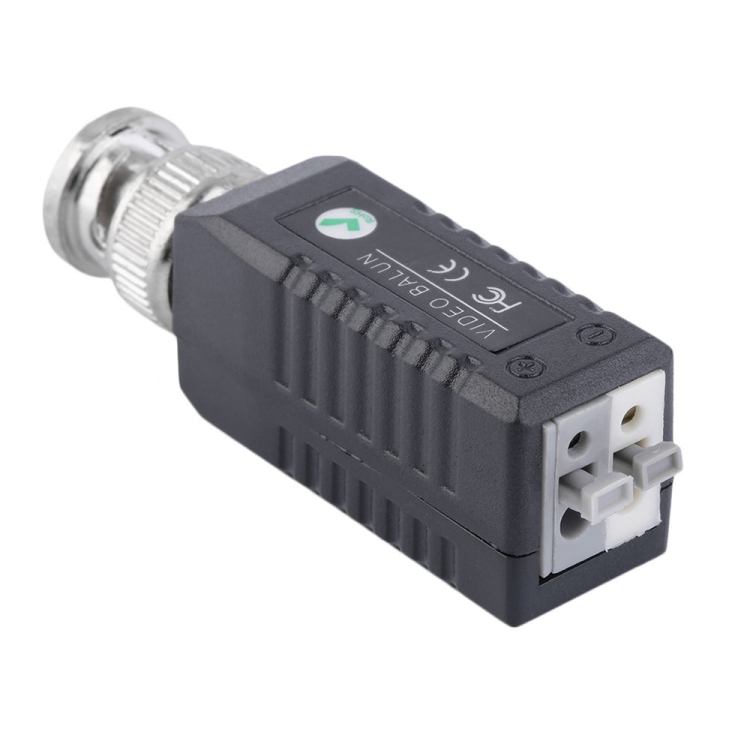

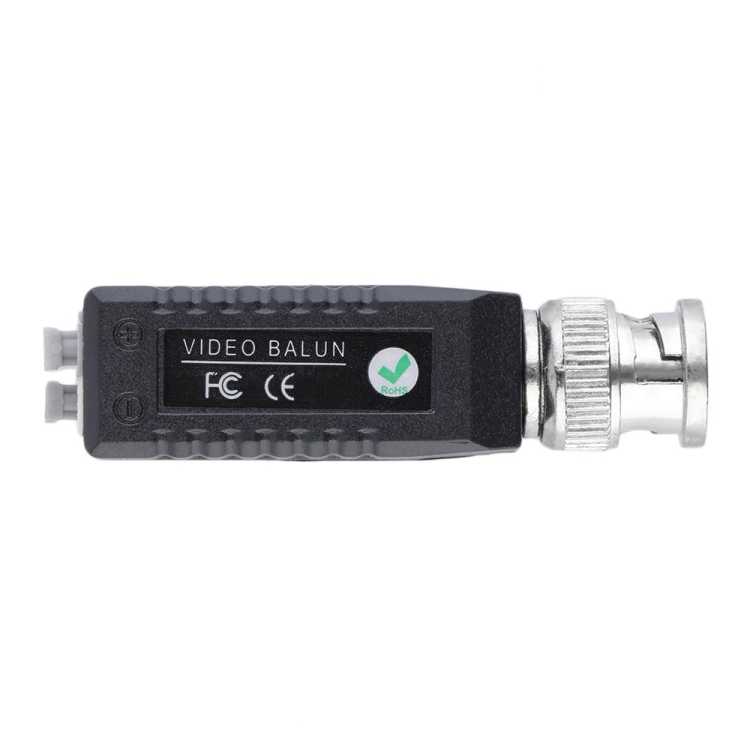

2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver
Roll over image to zoom in
Click to open expanded view

2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver

    AED 110.34 AED 110.34

    In stock

    Estimated Delivery: 6 Feb – 12 Feb (3–7 working days)
    SKU: S-CVB-0108 Category: Tags: , ,

    AED 110.34 AED 110.34

    Description

    Features:
    1. Full-motion CCTV video at distances up to 330m when used with any passive transceiver
    2. Up to 1500 m with any active UTP video receiver
    3. Press-Fit terminal block
    4. NTSC, PAL, and SECAM video fornats
    5. No power required
    6. 60 dB crosstalk and noise immunity
    7. Compact size and easy installation
    8. Built-in transient suppression protection

    Specifications:
    1. Frequency response: DC to 8MHz
    2. Attenuation: 0.5 dB typ
    3. CMRR: 60dB
    4. Connectors: Male BNC and Press-Fit terminal blocks
    5. Impedance: BNC: 75 ohms, Terminal:100 ohms
    6. Working Temperature: -10 degree C to +70 degree C
    7. Storage Temperature: -30 degree C to +70 degree C
    8. Humidity: 0 to 95%
    9. Dimension: 39x16x19 mm (excluding connectors)

    Specifications

    Additional information

    Weight0.053 kg
    Dimensions0.0 × 0.0 × 0.0 cm
    Option

    203A, UTP Transceivers, UL101P, X204A, Video Transceiver, Transceiver, 1 Channel, Video Balun Transceiver, B101, D204, X204-C, 351TR, QC204, A213A, A213B-C, 411T, 103C, 206C
