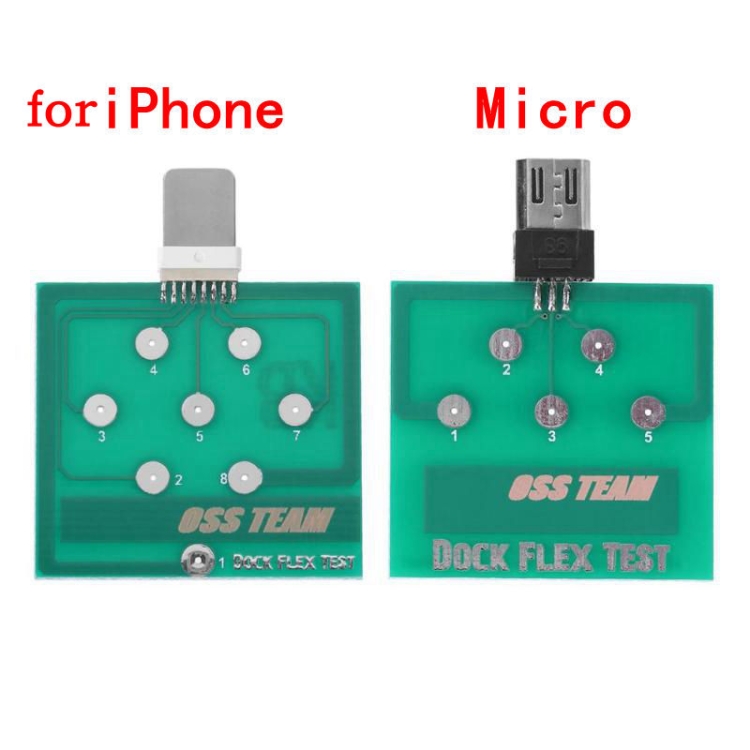

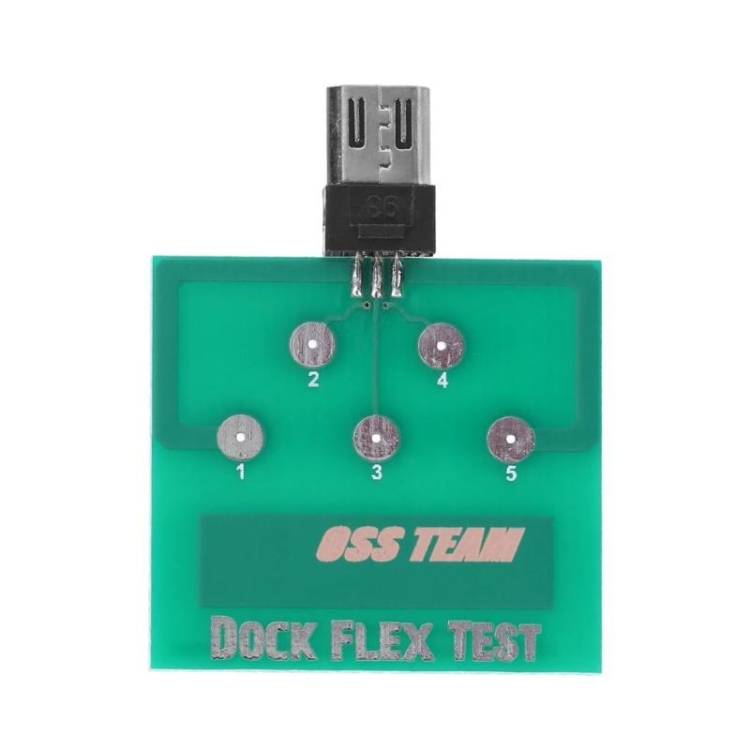

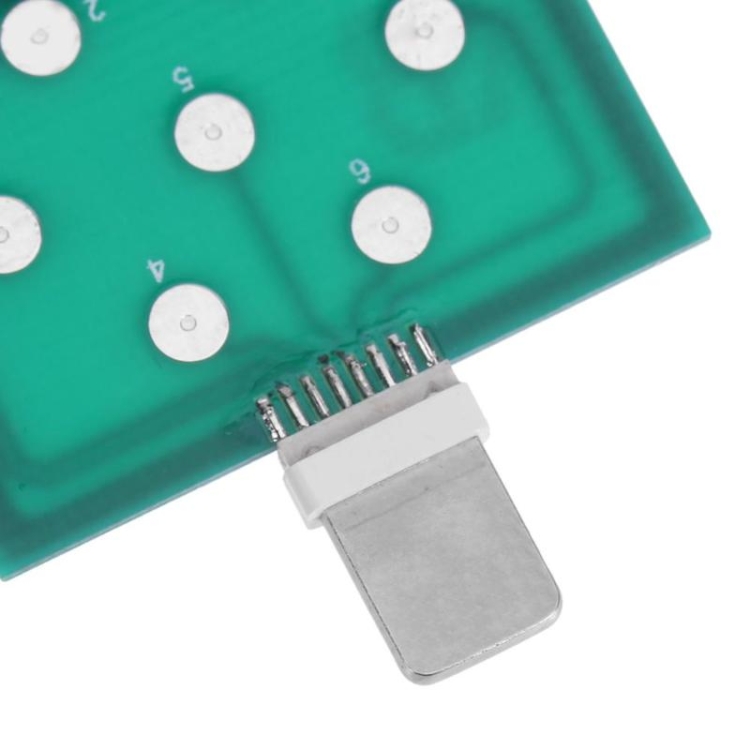

2 PCS Free Disassembly Detection Tail Plug Test Board

1. Mobile phone base elasticity test board is a small diagnostic tool, suitable for Phone, battery or base plug detection.
2. You can disassemble the free test to quickly and easily find the phone problem.
3. Dimensions: 30X27 mm

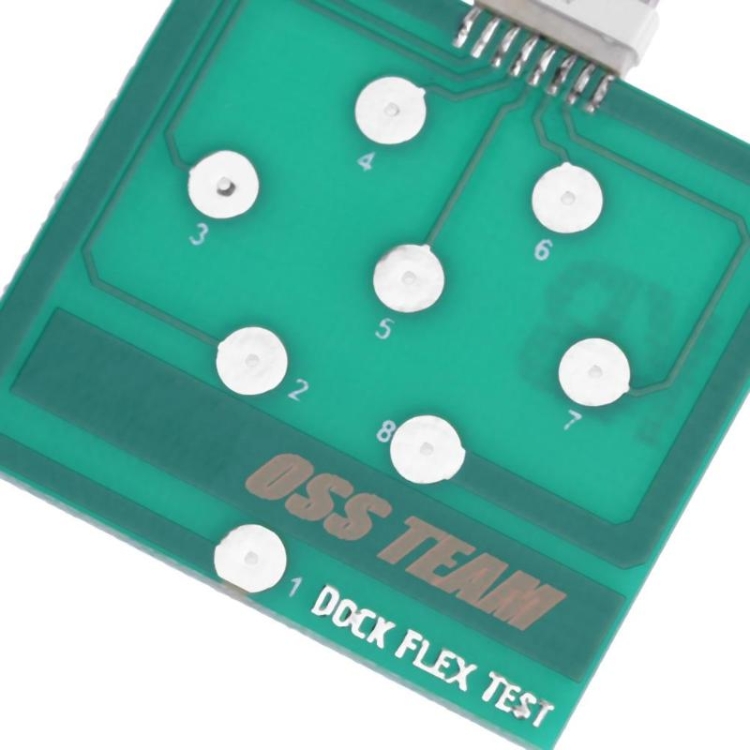

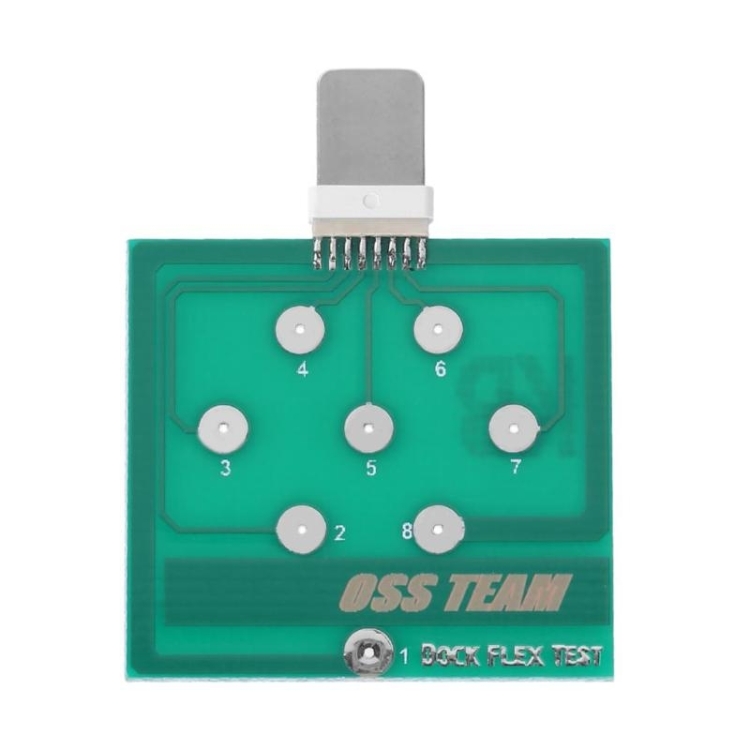

4. Pin definition:
–1- Identification / Control
–2 channels 1 negative
–3 channels 1 positive
–4 Power / Battery
–5 Identification / Control 0
–6 channel 0 negative
–7 channel 0 positive
–8 Ground
5. Weight: 0.0034KG
