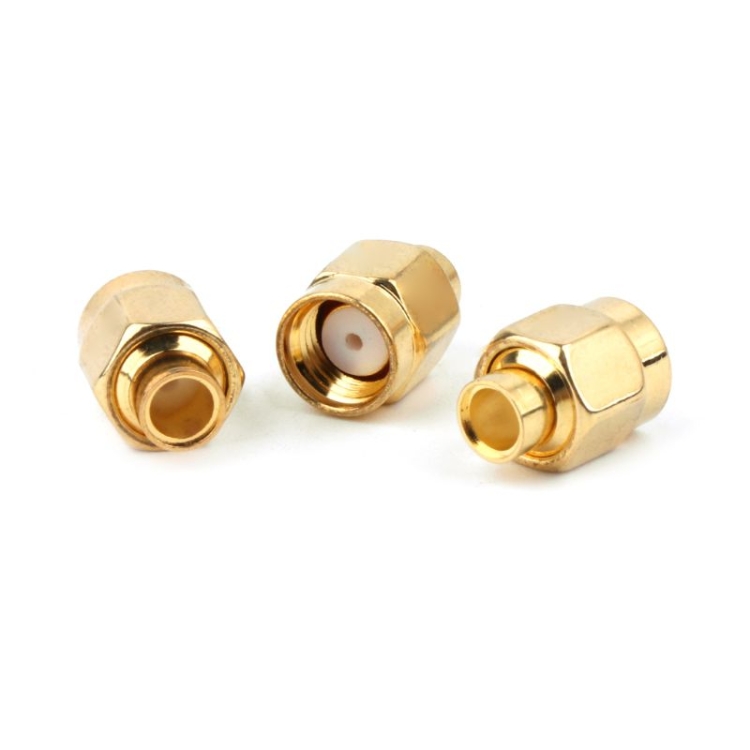

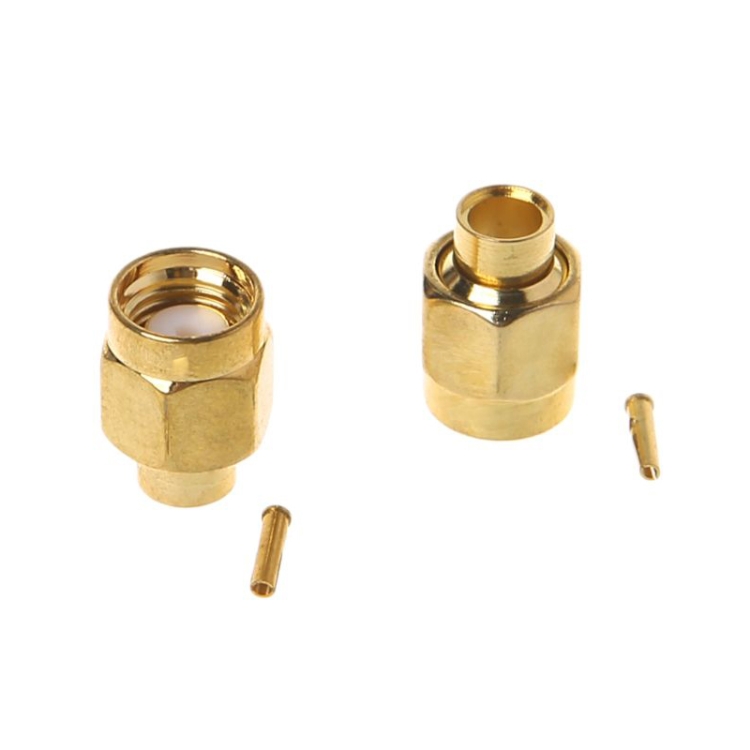

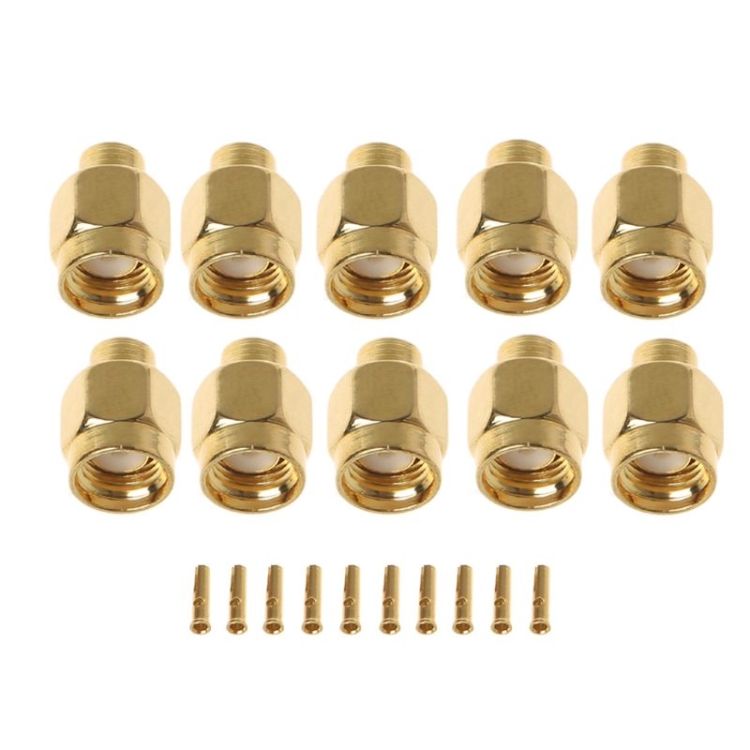

20 PCS SMA-JB3 RF Connector SMA Male Inner Screw & Pin Solder Semi-Rigid
AED 94.77 AED 94.77
Description
1. Rated voltage: AC60V
2. Withstand voltage: AC200V
3. Contact resistance: 20M ohm
4. Frequency: DC 0-18GHz
5. Temperature: -40 ~ +90 degrees Celsius
6. Cable Type: RG402 Cable
7. Connector Impedance: 50ohm
8. Contact Termination: Solder
9. Connector Body Style: Straight
10. Connector A: SMA Male
11. Material: Copper

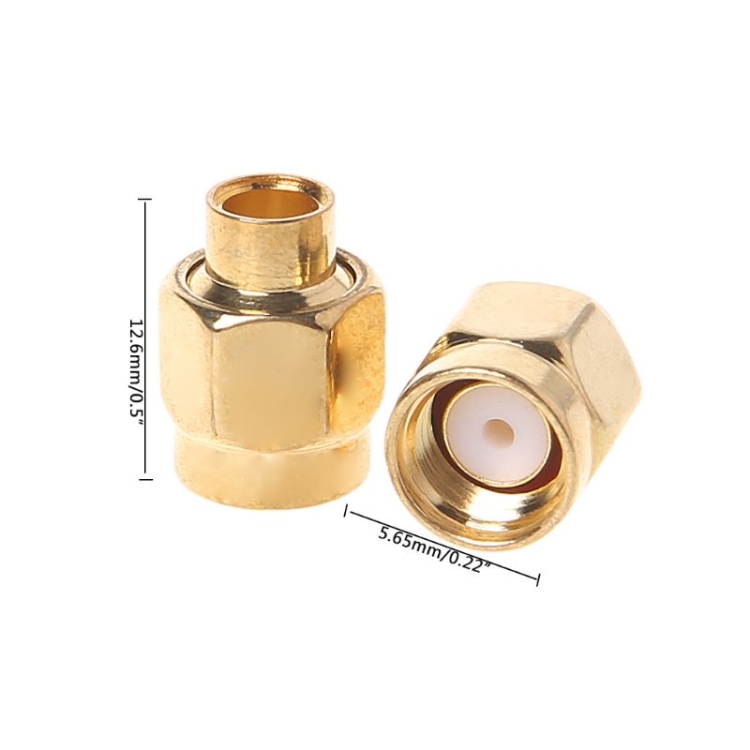

12. Dimensions: 5.65×12.6mm/0.22×0.5inch
Specifications
Additional information
| Weight | 0.109 kg |
|---|---|
| Dimensions | 6.0 × 3.0 × 1.0 cm |
| SKU | |
| Option | UHF Male to SMA Male (Cable), SMA Male to Female (Attenuator), SMA Female to IEC Male, SMA-JB3, SMA Male to BNC Female, BNC Female to SMA Male, SMA Male Load, SMA Male to N Female, SMA Female to F Female, SMA Male to MCX Female, SMA Female to CRC9 Male, SMA Male to Male |
