200A RV Modified Start Relay
Roll over image to zoom in
Click to open expanded view

200A RV Modified Start Relay

    AED 137.62

    SKU: EDA0018651 Category: Tags: , ,

    AED 137.62

    Clear

    Standard Delivery Timeframe: 3-7 Working Days

    Description

    1. Flame-retardant shell, with good smoothness.
    2. Silver point tin indium oxide material, high stability, heat resistance, arc erosion resistance and melting resistance, and long service life.
    3. Two six-square-wire copper wires, the product has fixed installation holes, which is easier to install and fix.
    4. Coil voltage: 12V/24V
    5. Coil power: 1.8W/4.8W
    6. Contact form: normally open
    7. Contact load: 200A

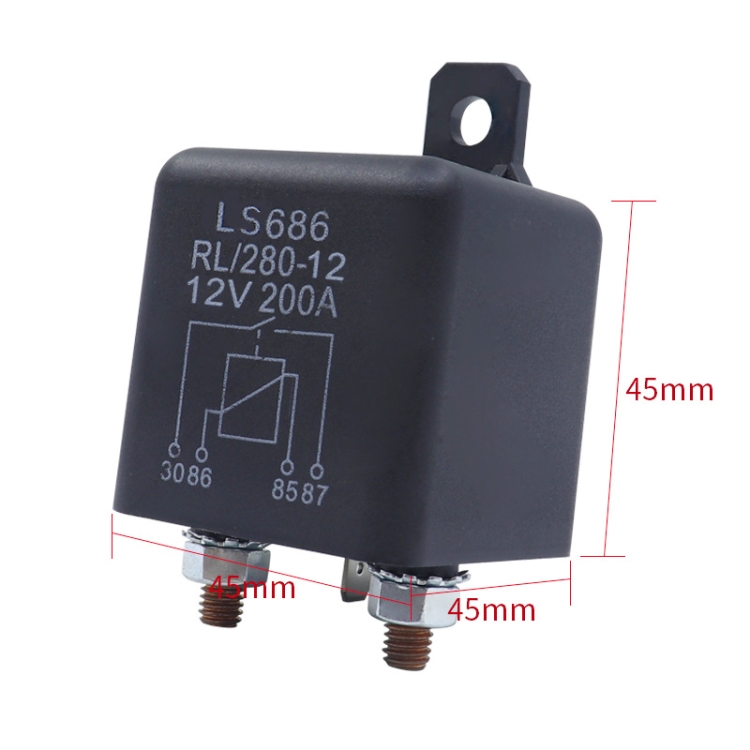

    8. Dimensions: 45 x 45 x 45mm
    9. Weight: 108.6g

    Specifications

    Additional information

    Weight0.084 kg
    Dimensions6.0 × 5.0 × 3.0 cm
    Option

    12V 1.8W Continuous Type, 12V 4.8W Start Type, 24V 1.8W Continuous Type, 24V 4.8W Start Type, 4 Pin 12V 200A
