25 Sets TJC3 2.5mm XH 5P 6P 7P 8P 9Pin Male Female Housing Connector with Crimps

    AED 118.80 AED 118.80

    In stock

    Estimated Delivery: 6 Feb – 12 Feb (3–7 working days)
    SKU: CMS6025 Category: Tags: , ,

    AED 118.80 AED 118.80

    Description

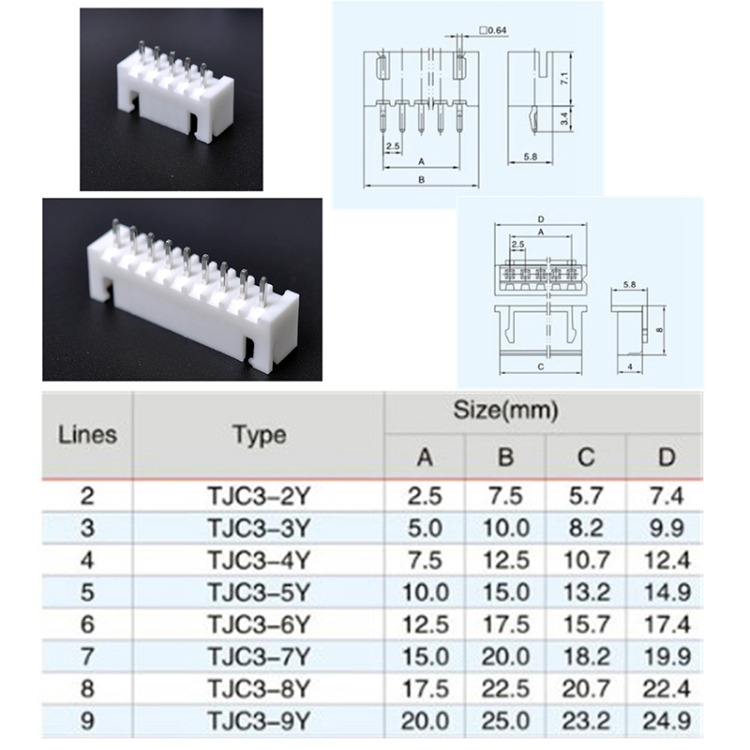

    1. Pitch: 2.5mm
    2. Rated voltage: 250V AC,DC
    3. Rated current: 3A AC,DC
    4. Contact resistance: 10M Ohm max
    5. Insulation resistance: 1000M Ohm min
    6. Withstanding Voltage: 1000V AC/minute
    7. Ambient temperature: -25 ~ +85 Celsius degree
    8. Wire Range : AWG#28~#22
    9. Material:
    Housing: Nylon UL94-V0(2)
    Terminal: Phosphor bronze, Tin plated
    Package:
    5pin = 5 sets
    6pin = 5 sets
    7pin = 5 sets
    8pin = 5 sets
    9pin = 5 sets

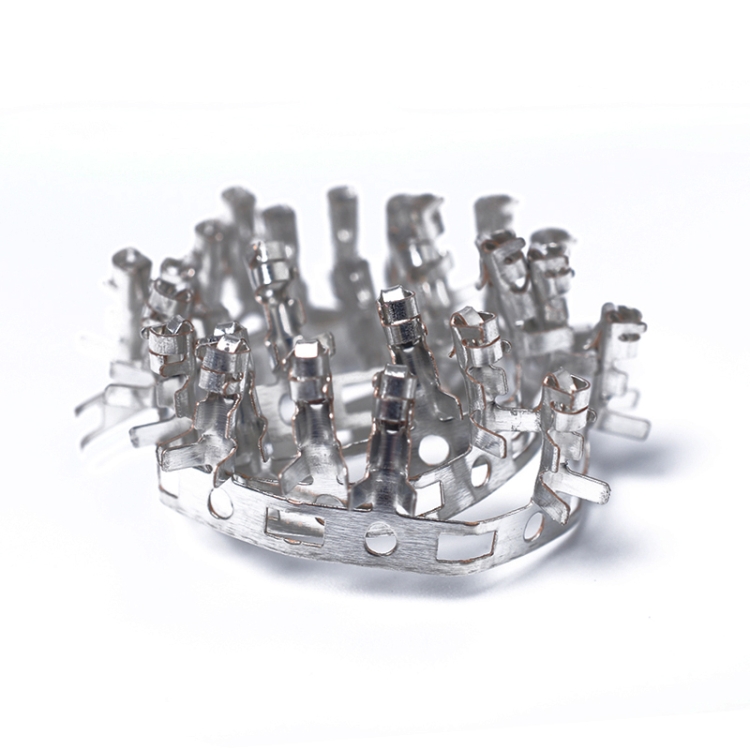

    Pin Connector Terminal :180 pcs

    Specifications

    Additional information

    Weight0.109 kg
    Dimensions18.0 × 10.0 × 3.0 cm
    Option

    20 Sets, 25 Sets, 40 Sets, 80 Sets
