35mm Hinge Open Hole Cabinet Door Plate Hinge Packed Locator

1. Aluminum alloy material, sperm manufacturing, beautiful and durable
2. Accurate positioning, easy to operate

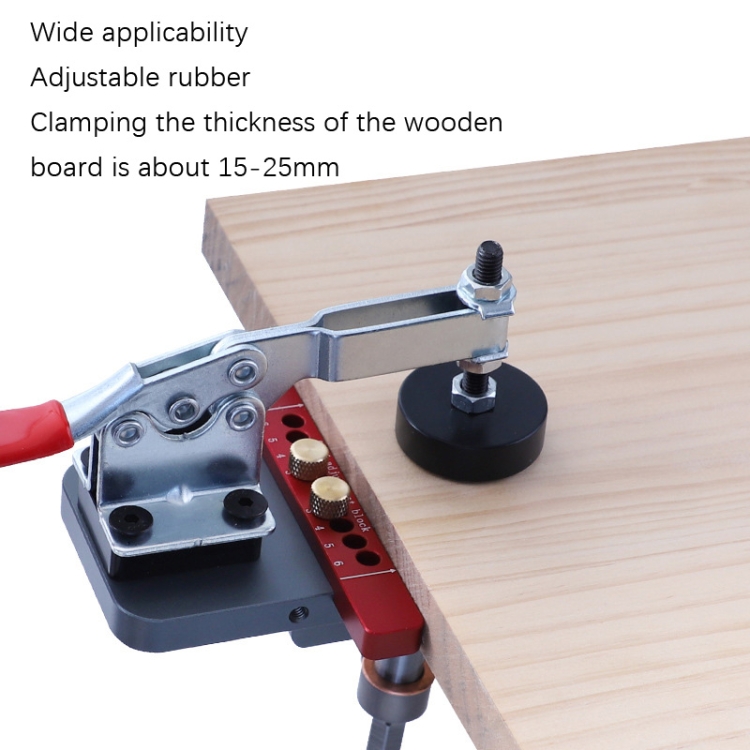

3. Applicability, adjustable rubber presses, clamping wood plate thickness ranges about 15-25mm
4. Bearing drilling sites, reduce wear, durable

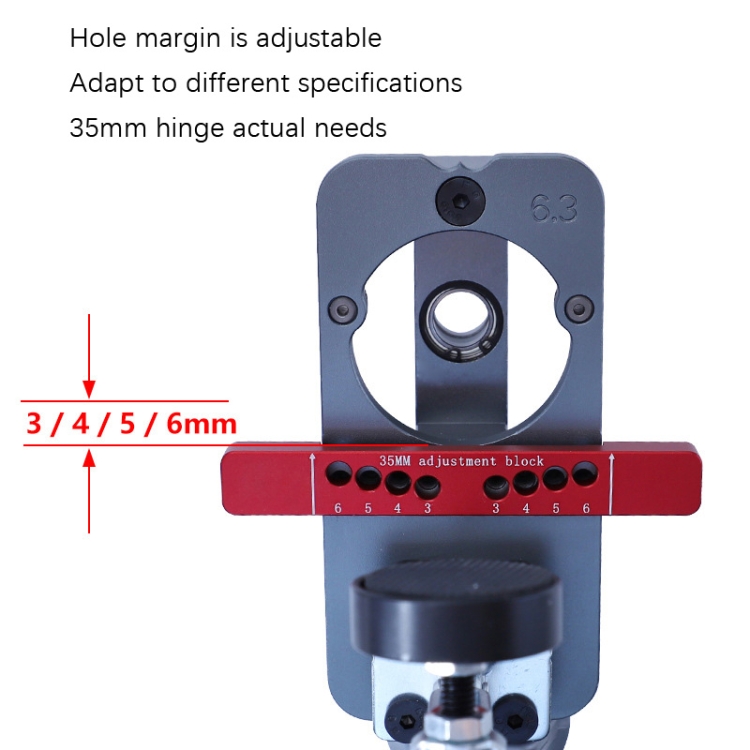

5. Adjustable in the hole margin, adapt to the actual needs of 35mm hinges of different specifications
6. Uses: 35mm hinge open hole installation, door panel hinge piping positioning, woodworking open auxiliary tool

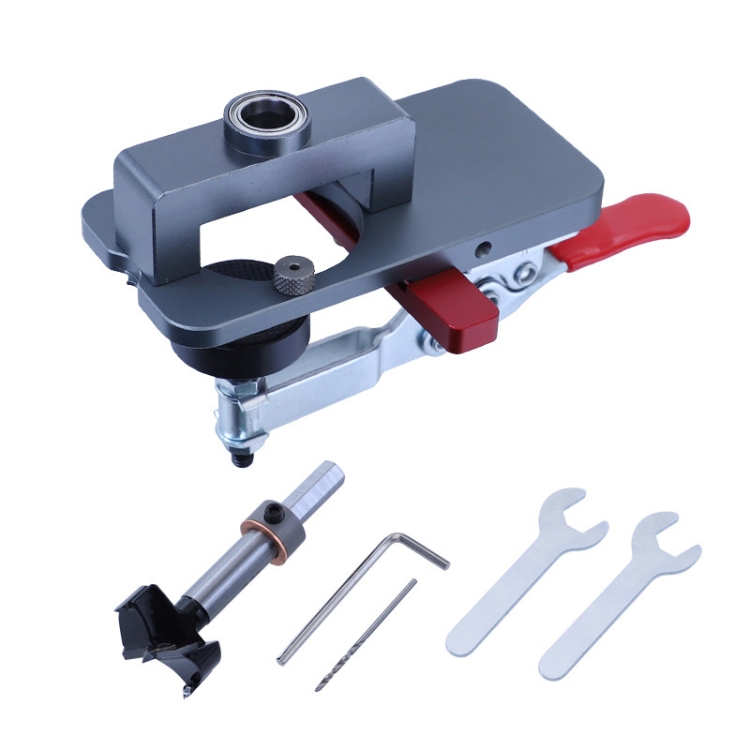

7. Packing list: hinge punch locator body X1, 35mm open cell X1, wrench x2, 2mm drill bit X1, hex wrench x1

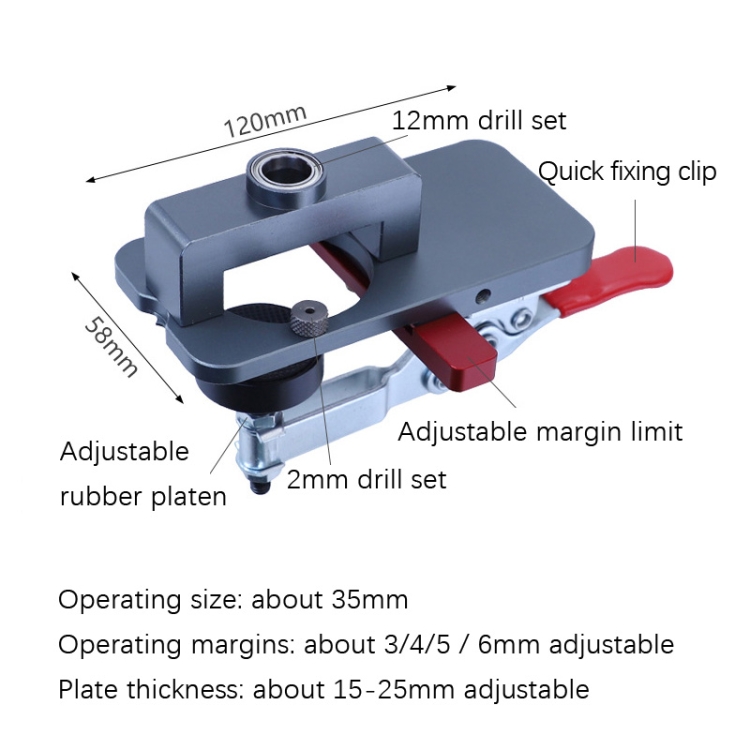

8. Operating size: about 35mm
9. Operating margins: about 3/4/5 / 6mm adjustable
10. Plate thickness: about 15-25mm adjustable
11. Size: about 12×5.8 cm
12. Weight: about 634 grams

Installation method:
1. Install a 35mm opener, adjust the perforation depth, normal 12-13mm, then lock the limit ring
2. Adjust the quick clip Black Block Fixed Size (Note: Tool adjustable fixed wooden board size is 15-25mm)
3. The punch is moved to the wooden planx, lock the quick clip
4. Electric drill holds the opening of the open hole, uniformly press the hole to 12-13mm depth, then hit the left and right side 2mm screw hole

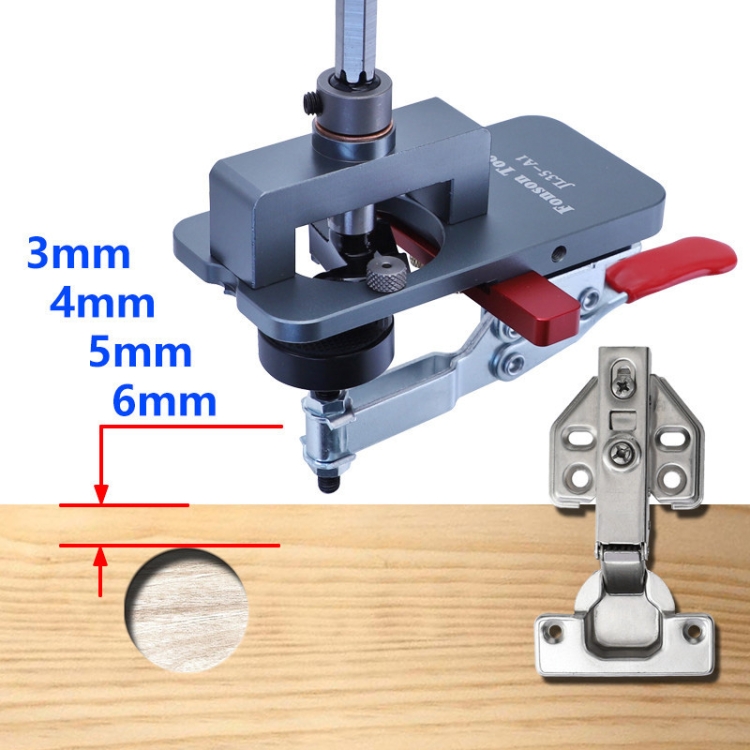

5. 35mm hole to the edge can be adjusted to 3, 4, 5, 6mm
6. Install 35mm hinge
