3D Printer Ramps1.4 12864 LCD Control Screen

1. Adopt large screen 12864LCD
2. The SD card holder is integrated on the back. after the sliced file is placed in the SD card, select the corresponding file on the LCD to print
3. Built-in encoder, can realize parameter adjustment, and file selection and printing
4. Plug and play on ramps, but need to modify firmware to support
5. Packing list: motherboard x 1, L-shaped adapter board x 1, FC cable x 2
6. Description: SD card (not included) can be inserted for offline printing

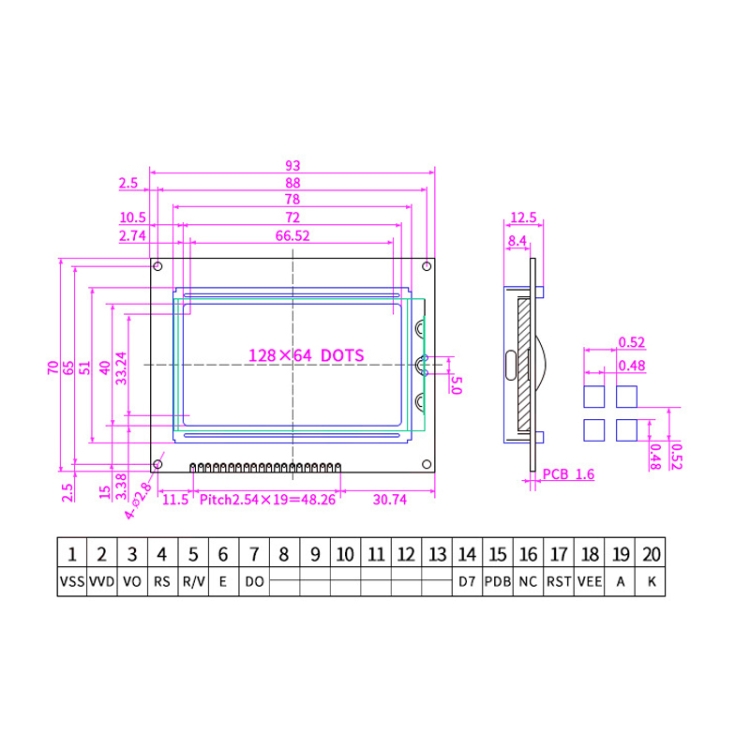

7. Number of rows and columns: 128 x 64 dots
8. Dot size: 0.48 x 0.48mm
9. Dot distance: 0.52 x 0.52mm
10. Field of view: 73 x 39mm
11. Size: about 9.3 x 7x 1.25cm
12. Weight: about 160 grams
