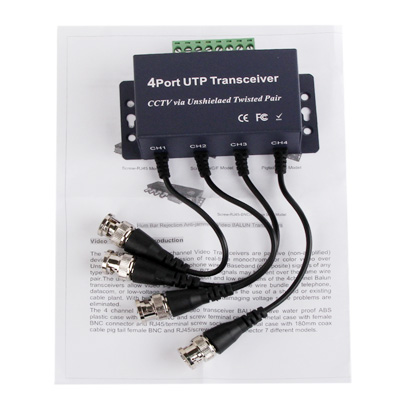

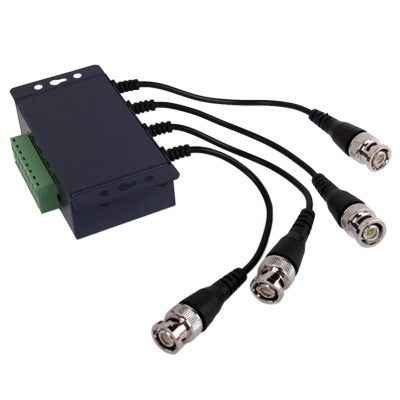

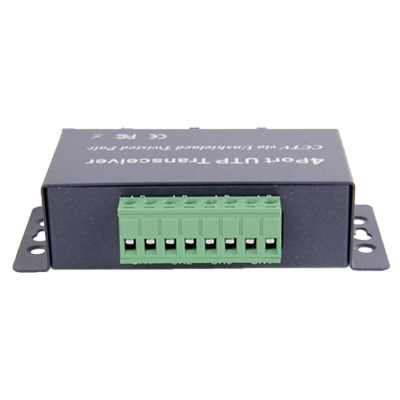

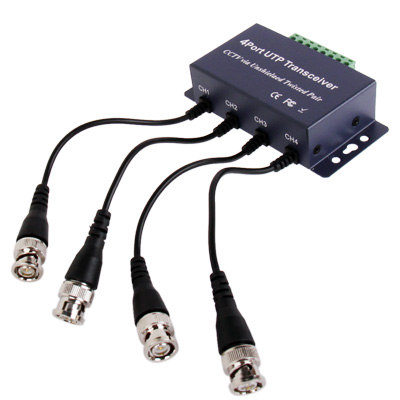

4 CH UTP Passive Balun Transceivers
AED 136.48 AED 136.48
Estimated Delivery: 5 Feb – 11 Feb (3–7 working days)
Description
1. Cable distance: Up to 2000ft transmitter-receive UTP cat 5E or better. Point to point transmission of real-time PAL / NTSC or SECAM CVBS video signal
2. Video frequency response: DC TO 6 MHz
3. Common-mode / differential-mode reiection: 15KHz to 5KHz, 55dB typical
4. Line impedance: female / male BNC 75ohms, CAT5 line, terminal 100ohms
5. Wire type: One unshielded twisted pair 24-16 AWG (0.5-1.31mm), category type cat 5 or better. Impedance 100+/-20ohms
6. DC loop resistance 52ohms per 1000ft (18ohms per 100m)
7. Differential capacitance 19pF/ft max (62pF/m max)
8. Power supply: No external power required
9. Dimensions: 10 x 5.5 x 2.5cm
Specifications
Additional information
| Weight | 0.260 kg |
|---|---|
| Dimensions | 16.0 × 11.0 × 3.5 cm |
| SKU | |
| Option | 103C, 351TR, 1 Channel, UTP Transceivers, 206C, D204, X204-C, UTP101P, X202P-C, 203A, UL101P, X204A, A213B-C, Transceiver, Video Transceiver, A213A, Video Balun Transceiver, LLT-204 |
