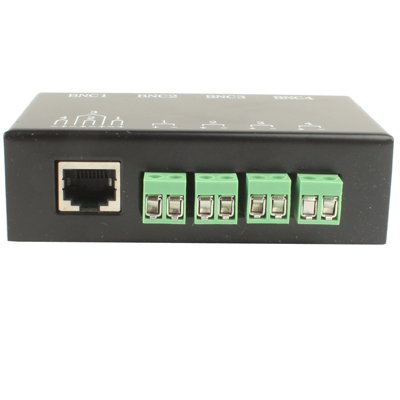

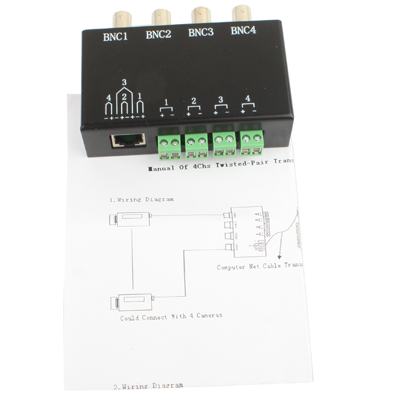

4 Channel Passive Video BNC to UTP RJ45 Balun Transceiver
AED 136.48 AED 136.48
Estimated Delivery: 10 Feb – 16 Feb (3–7 working days)
Description
Description:
1) This BNC to UTP RJ45 Balun transmits video signal via UTP Lan cable.
2) Input: BNC-video
3) Output 1 of 4ch box – One RJ45, each for 4 channels (Pin 1-2 ch1, Pin 4-5 ch2, pin 3-6 ch3, pin 7-8 ch4).
4) Output 2 of 4ch box – Four screw output for 4 channels.
5) Passive design (no power required).
6) This Video BNC UTP RJ45 Balun using standard LAN cable, patching.
7) This 4 Channel BNC UTP RJ45 Balun does not support 12V power transmission.
8) Maximum 300m color video working distance (much better than coaxial cable 100m).
9) Casing Material: Metal
10) Dimension: 96x80x30mm
11) Weight: 257g
Specifications
Additional information
| Weight | 0.279 kg |
|---|---|
| Dimensions | 11.0 × 10.0 × 5.0 cm |
| Color | |
| Option | X202P-C, X204A, X204-C, UL101P, X202P, 351TR, 203A, Transceiver, D204, Video Balun Transceiver, UTP101P, 411T, 103C, QC204, A213A, A213B-C, UTP Transceivers, B101 |
