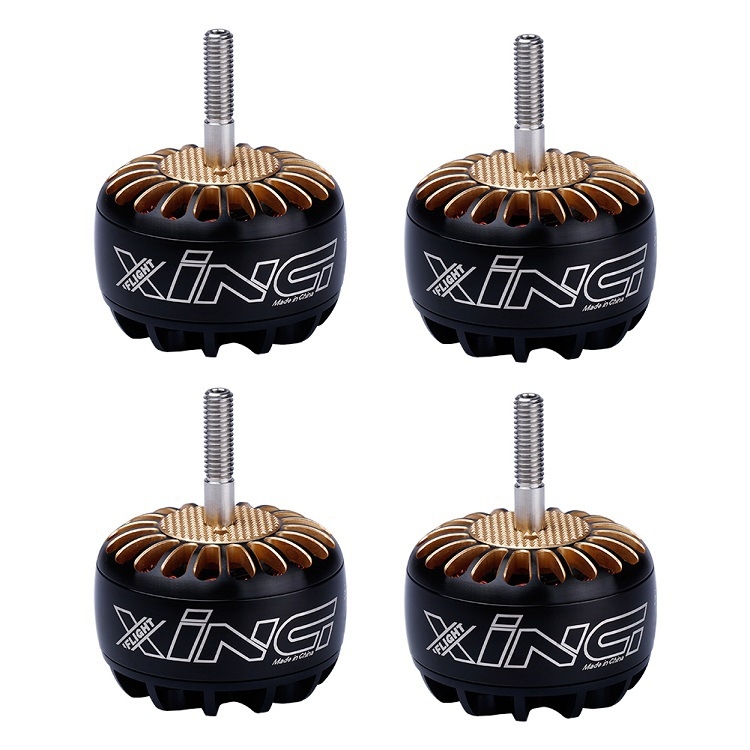

4 PCS iFlight XING T4214 400KV UAV Motor X-Class Large 12N14P FPV Brushless CNC Motor

1. Designed for X-Class models
2. Exquisite appearance design, large airflow, reasonable structure, solid
3. High-precision CNC machining of the whole body, high strength and high precision
4.660KV pull force reaches 7.9KG
5. Adopt N45SH magnet to ensure the torque and ensure the high temperature does not lose magnetism
6.50%-90% throttle effect and thrust
7. The motor body has undergone precise dynamic balance processing to ensure the balance of the motor when it runs at high speed
8. EZO bearing, to ensure the smooth running of the motor
9. Tile-shaped magnet, very small gap
10. 420 stainless steel shaft
11. Optimize the design of heat dissipation structure, reduce 20% year-on-year
12. Reliable magnetic circuit optimization, excellent power conversion

parameter:
-KV: 660KV 400KV
-Structure: 12N14P
-Stator diameter: 42mm
-Output shaft length and diameter: 26.5mm M6
-Motor size: 50x33mm
-Magnet: N45SH
-Bearing: EZO
-Output wire diameter: 14awg, 800mm
-Weight: 208.8g
