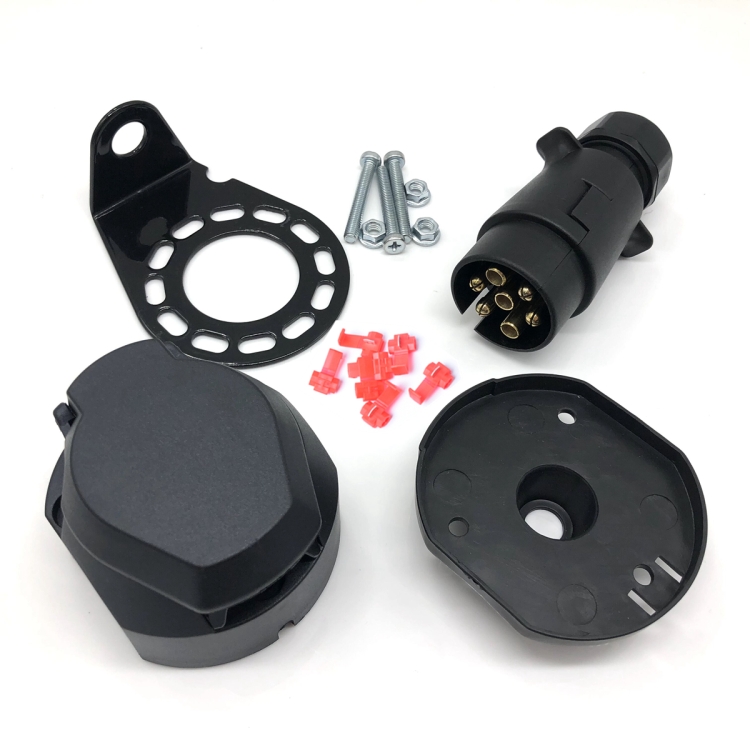

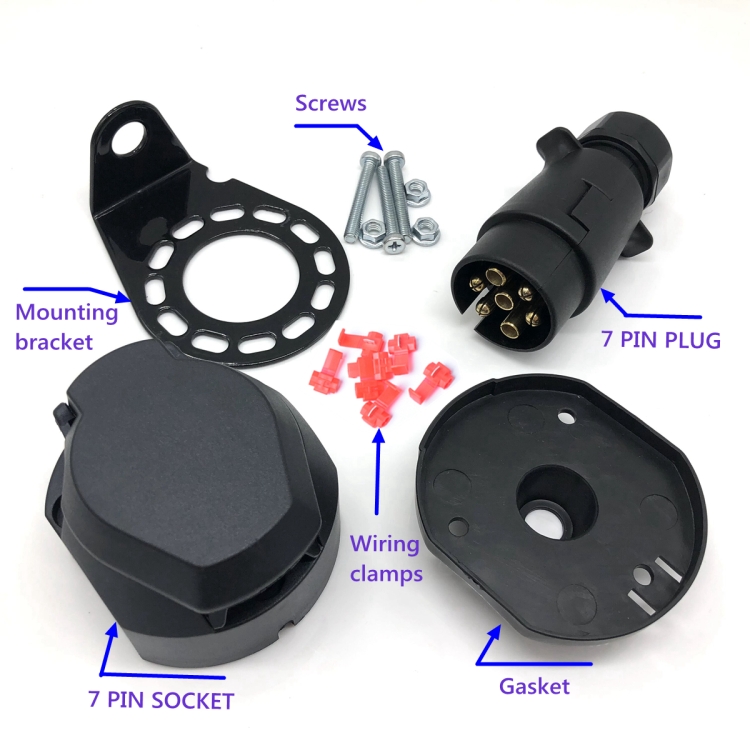

7 Pins 12N Electrics Converter Trailer Caravan Plug and Socket Adapter Connector
AED 134.62
Estimated Delivery: 5 Feb – 11 Feb (3–7 working days)
Description
1. 7-pole trailer plug pendant connector easy to use
2. Towing & Hauling accessories
3. Non-corroding, shock-resistant design.
4. Material: plastic & metal
5. Operating voltage: 12V
6. Type of connection: Screw contacts
7. Mounting hole diameter: 6mm
8. 7 Pin lighting connections-12 N black cable function
PIN 1 – Yellow Wire (Left/H Direction Indicator)
PIN 2 – Blue Wire ( Rear Fog Lamps )
PIN 3 – White Wire ( Earth Return )
PIN 4 – Green Wire (Right/H Direction Indicator)
PIN 5 – Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 – Red Wire (Brake lights)
PIN 7 – Black Wire (Left/H Tail & No. Plate Lamp )
Specifications
Additional information
| Weight | 0.289 kg |
|---|---|
| Dimensions | 16.0 × 16.0 × 6.0 cm |
| Option | A0364, A0285, A0226, A0202, A0201, A0145, A0138, A0143, A0146, A0139, A2319, A0221, A0141, VS130E, VS170U-1, VP250H, VP270H, VP270ES, VS270E, VP170EB-1, VS170E-RZ, VS1130E, VS171EW, VP1120A, VS171E-R, VP170U, VP170EC, VS1131E, VS170E-D, VC1013, VC1014, VP1130E, CP-3054, A4060, A4059, A4058, CP-0220, CP-0618, CP-0228 |
