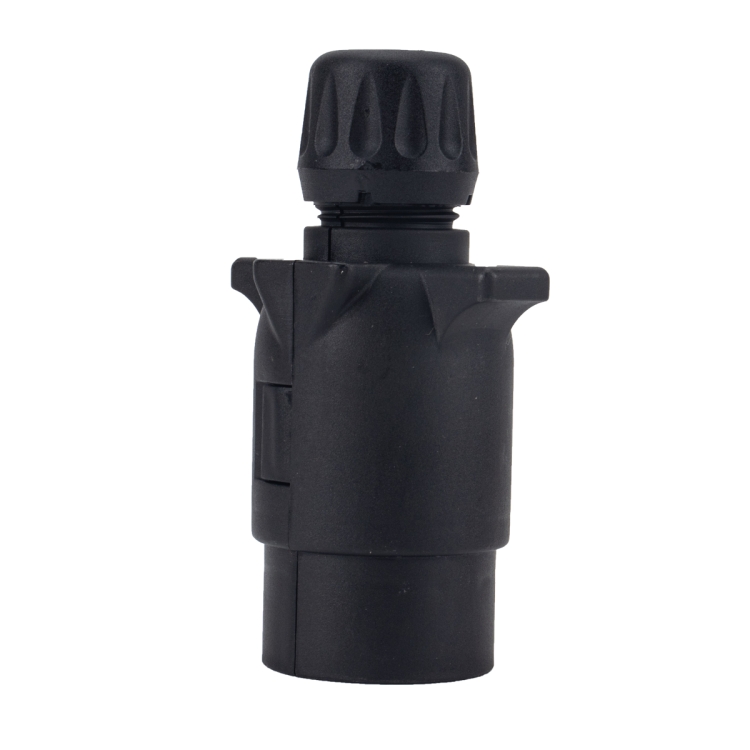

A4060 12V 7Pin EU Plug Socket Wiring Connector Adapter Plug Socket for Trailer
AED 108.84 AED 108.84
Estimated Delivery: 5 Feb – 11 Feb (3–7 working days)
Description
1. Function: connect truck and power supply, suitable for trailer signal light display
2. Installation position: between the conductive tractor and the towed vehicle
3. Scope of application: trailers, trucks, trucks
4. Parameters:
Material: ABS+copper
Voltage: 12v
Product power: 2w
Waterproof rating: IP67
Number of needles: 7
5. Instructions for use:
PIN 1-yellow line (left direction indicator)
PIN 2-blue line (rear fog lamp)
PIN 3-white wire (grounded)
PIN 4-green wire (direction indicator)
PIN 5-brown wire (right tail light and license plate light)
PIN 6-red wire (brake light)
PIN 7-black wire (left tail light and license plate light)
Specifications
Additional information
| Weight | 0.064 kg |
|---|---|

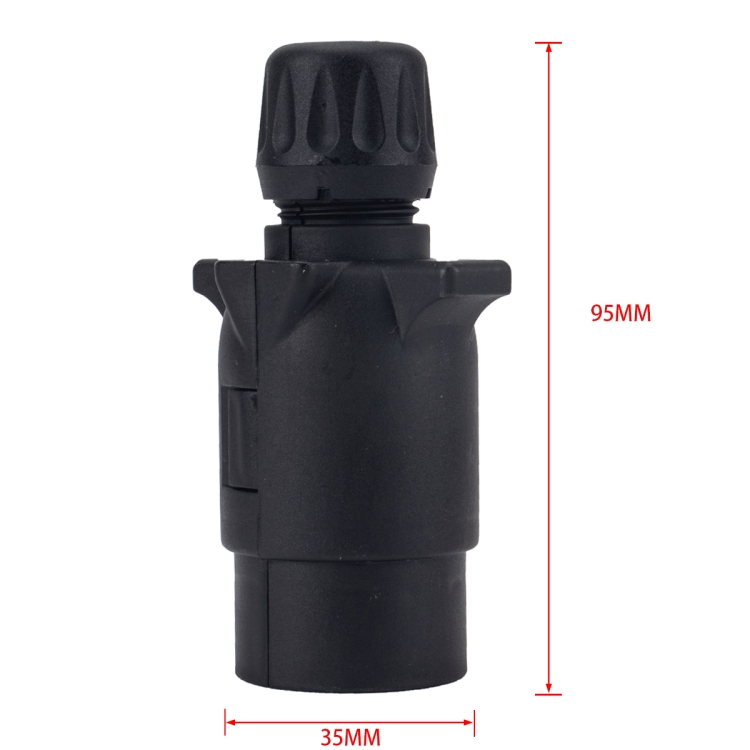

| Dimensions | 10.0 × 6.0 × 4.0 cm |
| Option | A0364, A0285, A0226, A0202, A0201, A0145, A0138, A0143, A0146, A0139, A2319, A0221, A0141, VS130E, VS170U-1, VP250H, VP270H, VP270ES, VS270E, VP170EB-1, VS170E-RZ, VS1130E, VS171EW, VP1120A, VS171E-R, VP170U, VP170EC, VS1131E, VS170E-D, VC1013, VC1014, VP1130E, CP-3054, A4060, A4059, A4058, CP-0220, CP-0618, CP-0228 |
