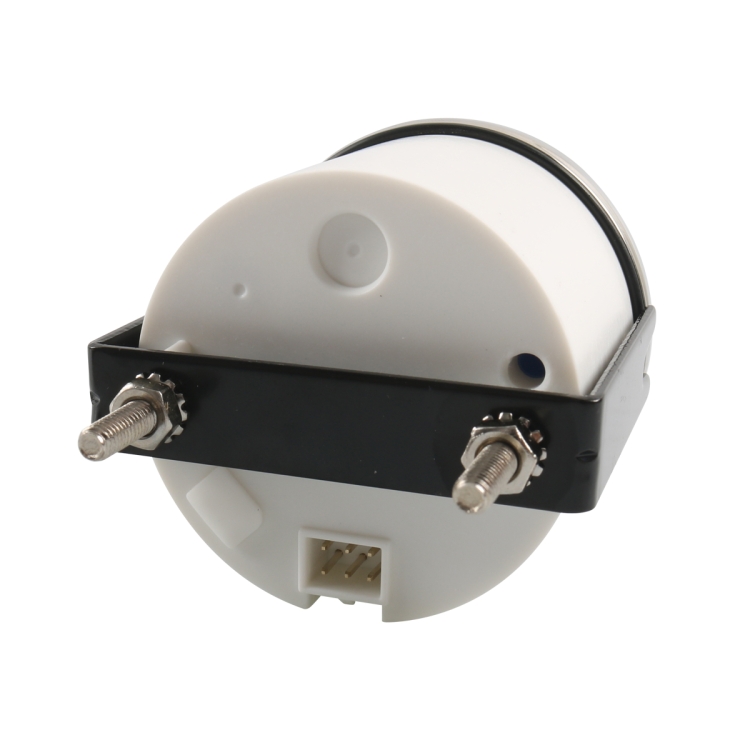

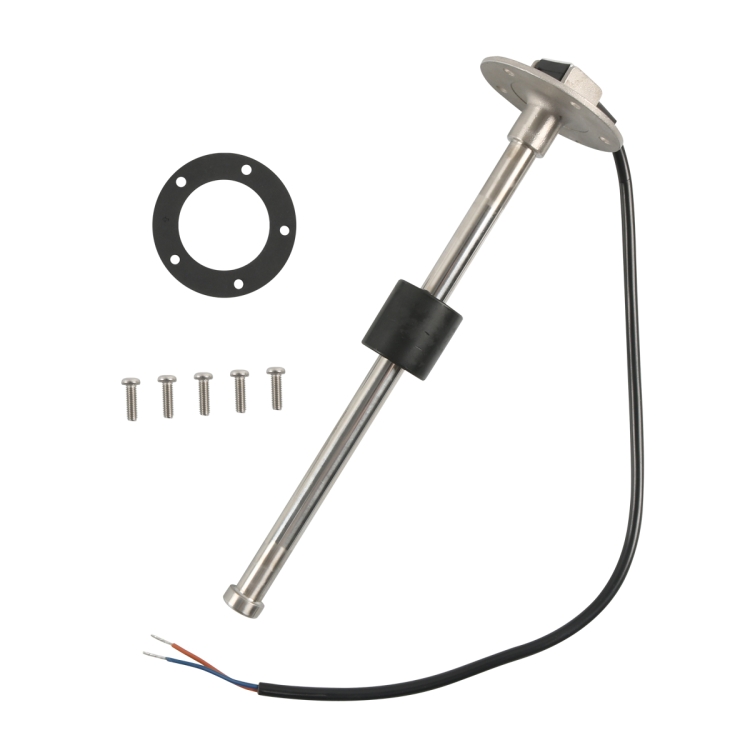

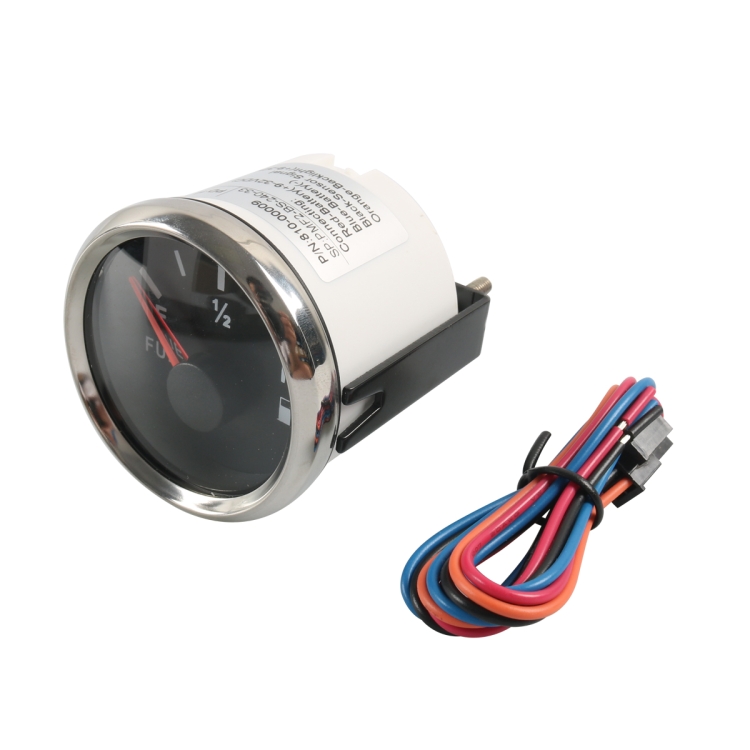

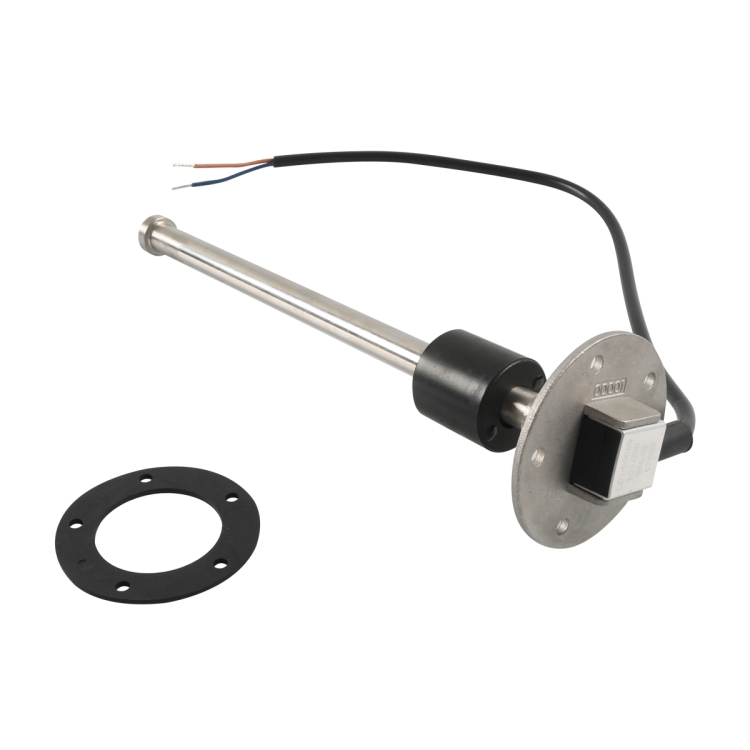

A7951 RV / Yacht Fuel Level Sensor with 52mm Oil Level Gauge

1. Made of high-quality 316 stainless steel, long service life, anti-vibration, explosion-proof.
2. Simple and solid structure, good corrosion resistance, reed switch, stable output signal.
3. The sensor is a standard SAE 5-hole pattern, easy to install and connect.
4. Function: used to detect the liquid level of the fuel tank and display the remaining amount of fuel
5. Scope of application: Suitable for trucks, generators/generator sets, buses and ships. Widely used in fuel, water, kerosene and chemical storage tanks
6. Material: 316 stainless steel + ABS
7. Installation diameter: 52mm
8. Working voltage: 9-32V DC
9. Backlight color: red
10. Working temperature: -40-85 degrees Celsius
11. Signal output: 0-190 ohms
