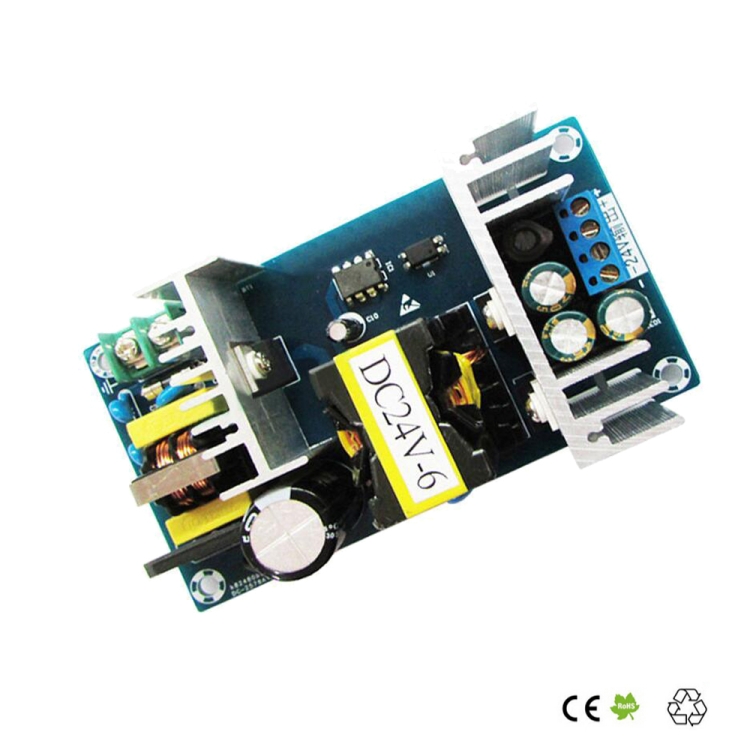

AC-DC Power Supply Module AC 100-240V to DC 24V max 9A 150w AC DC Switching Power Supply Board 24V adapter
AED 100.91
Description
- Usage:Vacuum Cleaner,Switching,Electric Tool
- Brand Name:Chimole
Product Description:
Input voltage: AC 100-240V 50/60HZ
Output Voltage: DC 24V
Output Current: 6-9A
Output Power: 150W ( Max 220W )

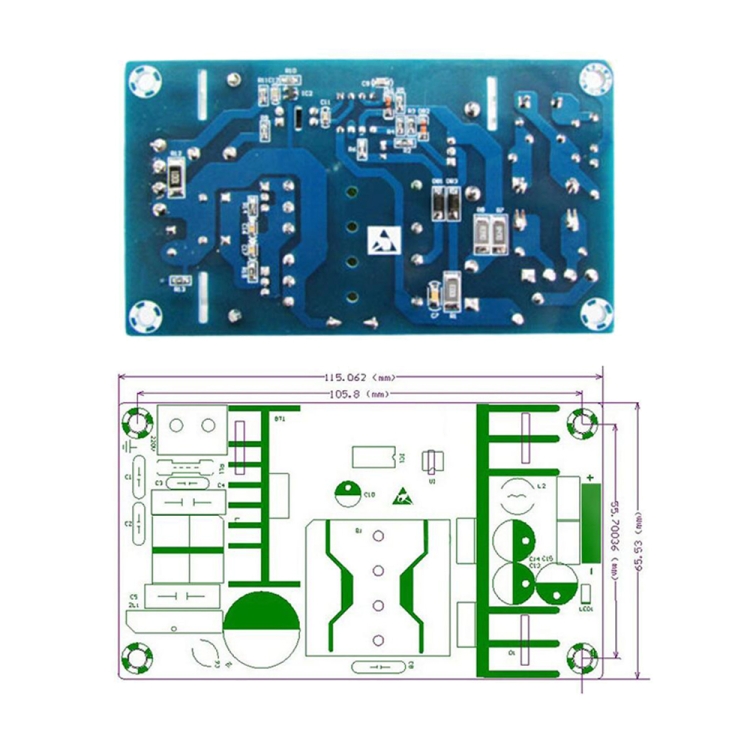

Location Pore Size: 105.8 x 55.7mm
Overall Dimensions: 115 x 65mm
Ripple Noise: Less than 150MV
Overcurrent protection: Yes
Overload Protection: Yes
Short circuit protection: Yes
Input voltage: AC 100-240V 50/60HZ
Output Voltage: DC 24V
Output Current: 6-9A
Output Power: 150W ( Max 220W )
Location Pore Size: 105.8 x 55.7mm
Overall Dimensions: 115 x 65mm
Ripple Noise: Less than 150MV
Overcurrent protection: Yes
Overload Protection: Yes
Short circuit protection: Yes

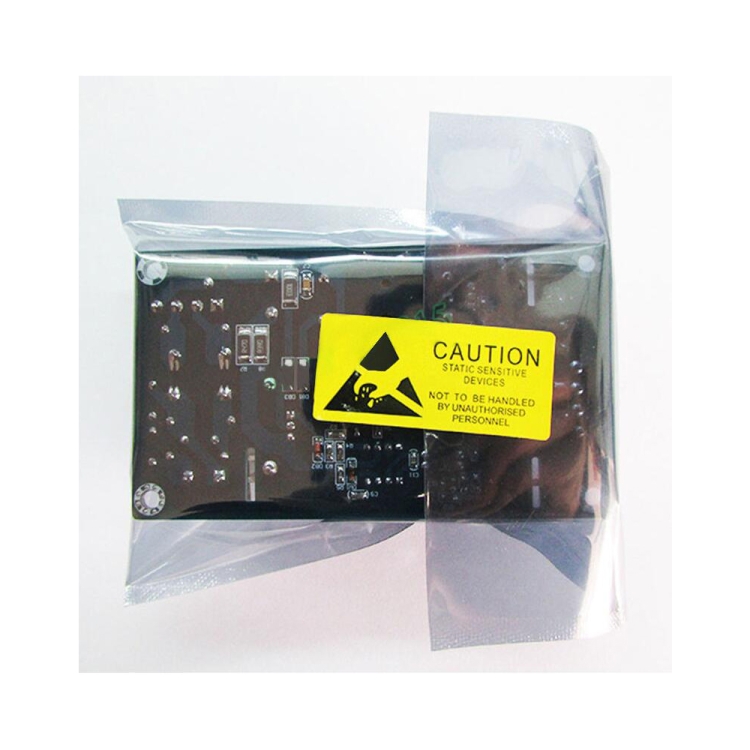

Package including:
1 x AC-DC 100-240V to 24V Power Supple Module
Specifications
Additional information
| Weight | 0.271 kg |
|---|---|
| Dimensions | 13.0 × 10.0 × 5.0 cm |
