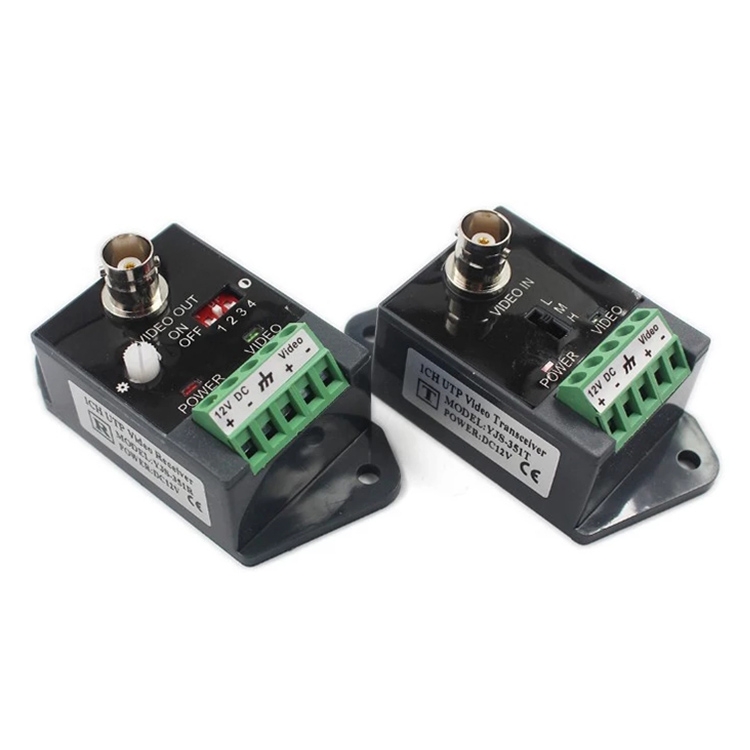

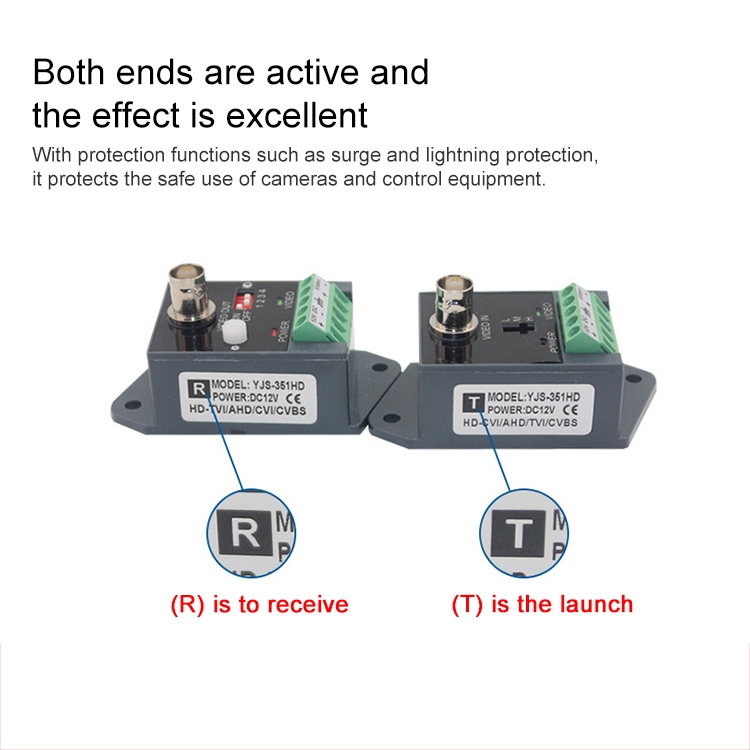

Active CCTV UTP Twisted Pair Video Balun Transmitter and Receiver
AED 217.70 AED 217.70
Estimated Delivery: 5 Feb – 11 Feb (3–7 working days)
Description
1. Smart Twisted Pair Video Balun are designed for CCTV signal transmission over unshielded twisted pair wire

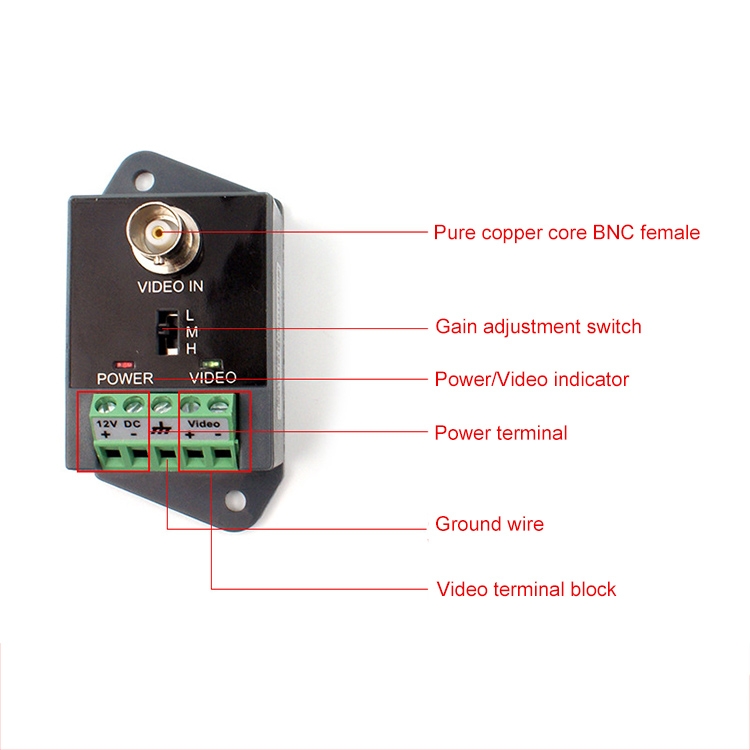

2. Three position range switch for gain select on transmitter.

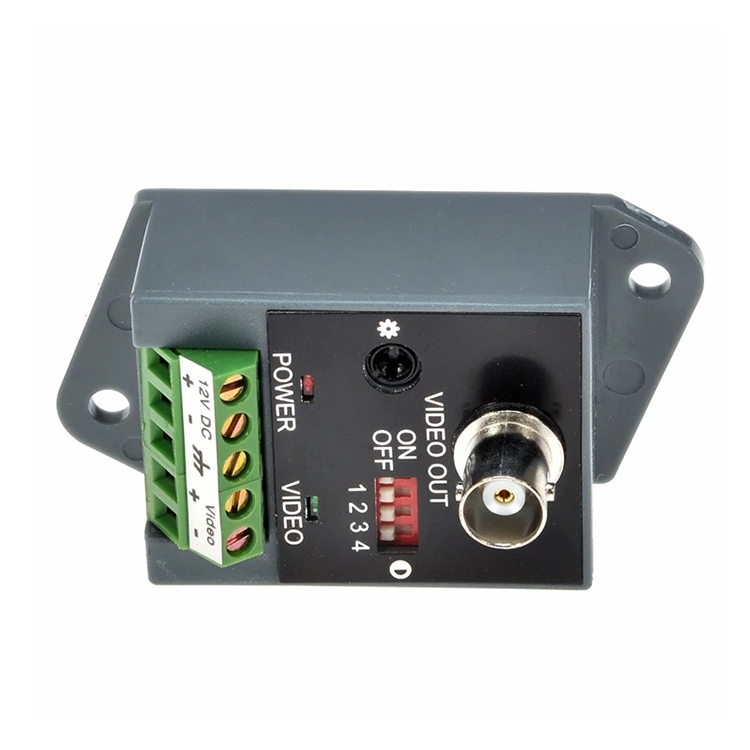

3. 4 position distance range switch on Receiver
4. UTP Video Balun with built in transient protection and ground lifting.
5. Specification of the CCTV Video Balun: single-channel
6. Frequency response: DC-6MHz
7. Common-mode/differential-mode rejection: 15kHz to 6MHz 60dB type
8. Impedance: BNC 75 Ohms
9. UTP/connector: 100 Ohms or RJ-45 100 Ohms
10. Environment:
– Temperature: 0 to 50 degrees Celsius
– Humidity: 0 to 95%
11. Wire type:
– Full-motion CCTV video at long distances (9,000ft / 3000M)
– Built-in linearity, sharpness and charoma control
– Enable unparalleled common interference rejection
– Built-in transient protection
– Improve the picture definition when connet to DVR or Quad, and reduce noise affects
– Dimensions: 76 x 40 x 26mm
Specifications
Additional information
| Weight | 0.133 kg |
|---|---|
| Dimensions | 0.0 × 0.0 × 0.0 cm |
| Option | 103C, Video Transceiver, A213B-C, 411T, LLT-204, B101, UTP101P, QC204, X204A, UTP Transceivers, 1 Channel, 203A, 351TR, X202P-C, A213A, Transceiver, UL101P, X202E |
