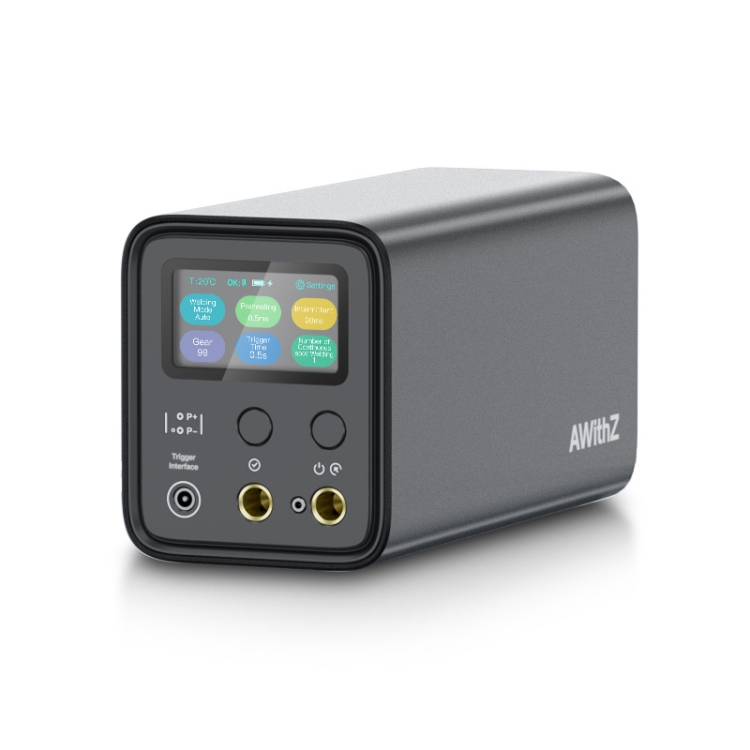

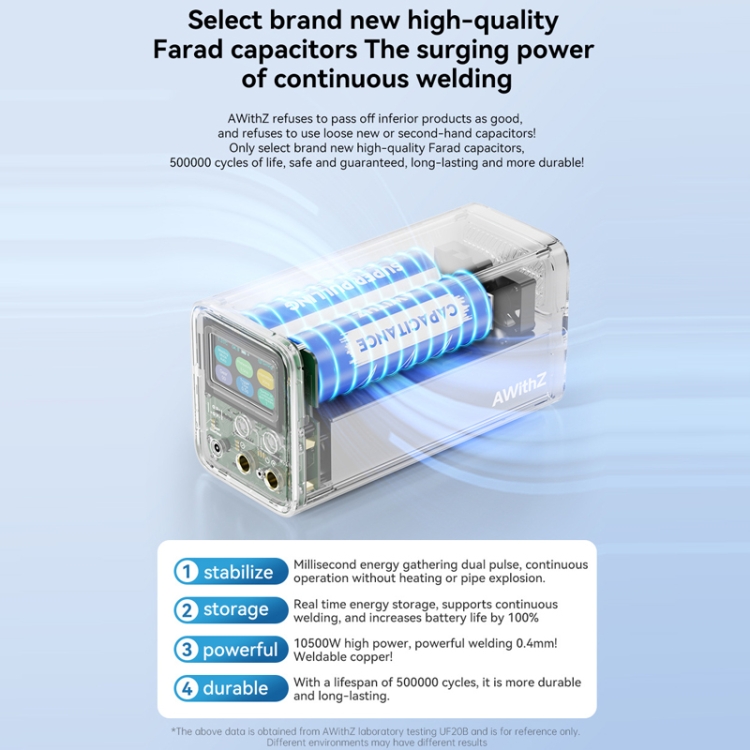

AWithZ Energy Storage Capacitor 18650 Lithium Battery DIY Nickel Sheet Spot Welder

1. Shell material: aluminum alloy + plastic
2. Output voltage: 6V (MAX)
3. Output current: 1750A (MAX)
4. Output power: 10.5KW (MAX)
5. Gear adjustment: 99 gears adjustment

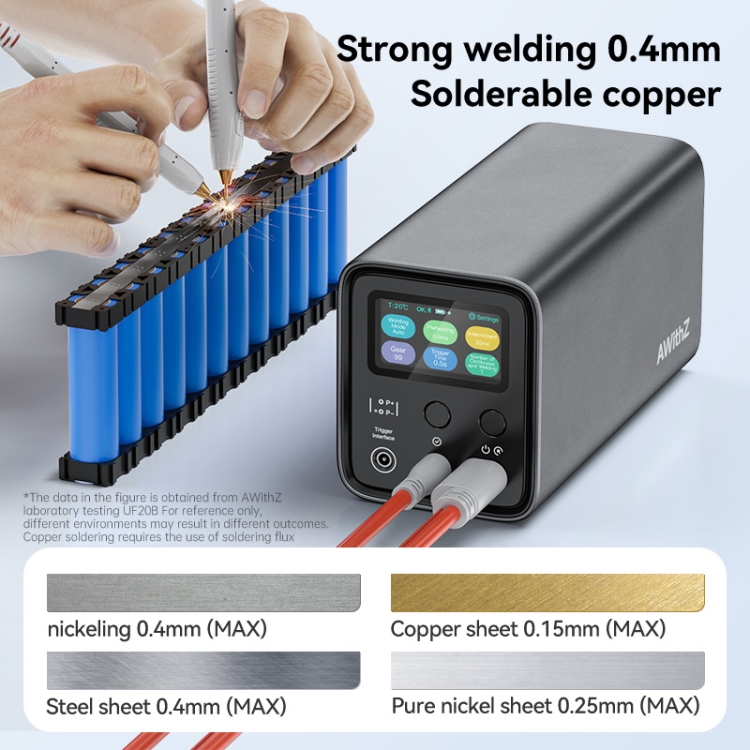

6. Spot welding thickness: copper 0.15mm, pure nickel 0.25mm, nickel-plated, steel sheet, iron sheet 0.4mm
7. Widely applicable: power tool repair, household appliance repair, small and medium-sized battery assembly, button battery welding, mobile phone repair

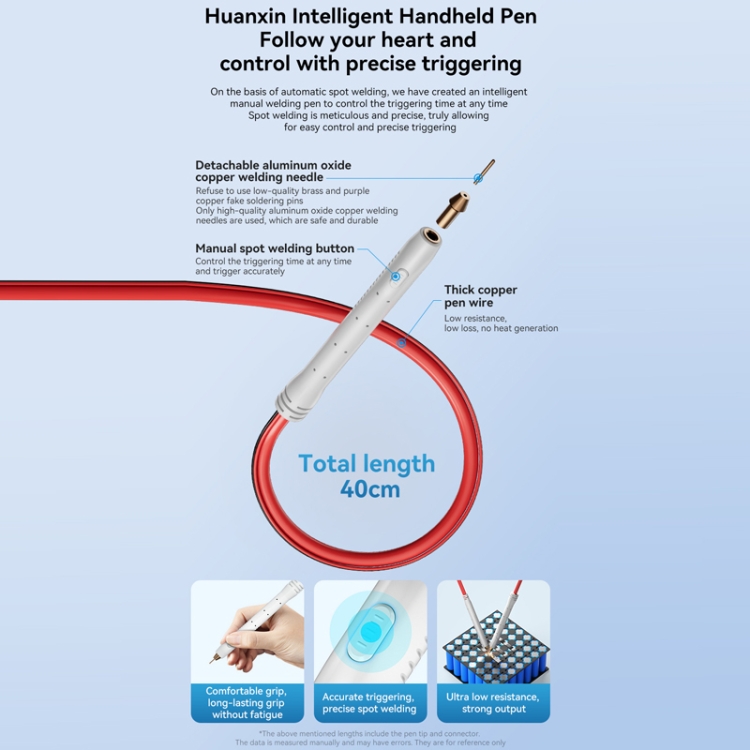

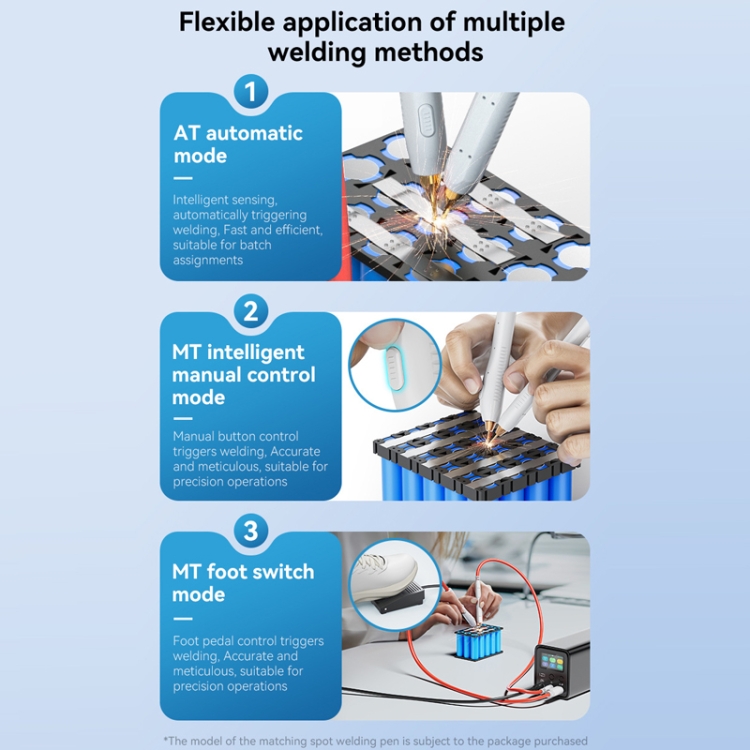

8. 40 cm thick copper pen wire has low resistance, low loss and no heat
9. Manual spot welding button, control the trigger time at any time, accurate triggering

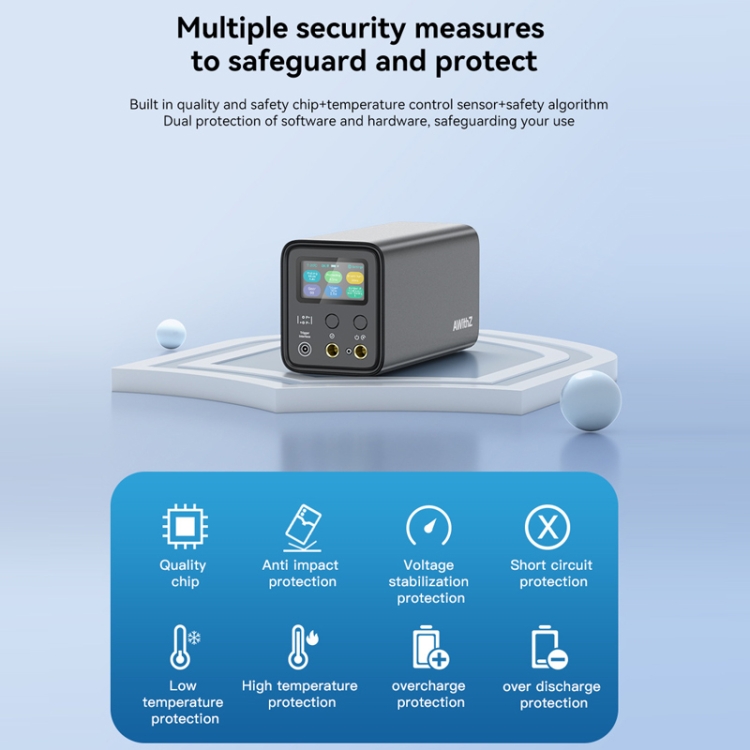

10. Built-in quality safety chip + temperature control sensor + safety algorithm, software and hardware dual protection, escort for your use
11. Net weight: about 1.25kg
12. Product size: about 181x95x80mm

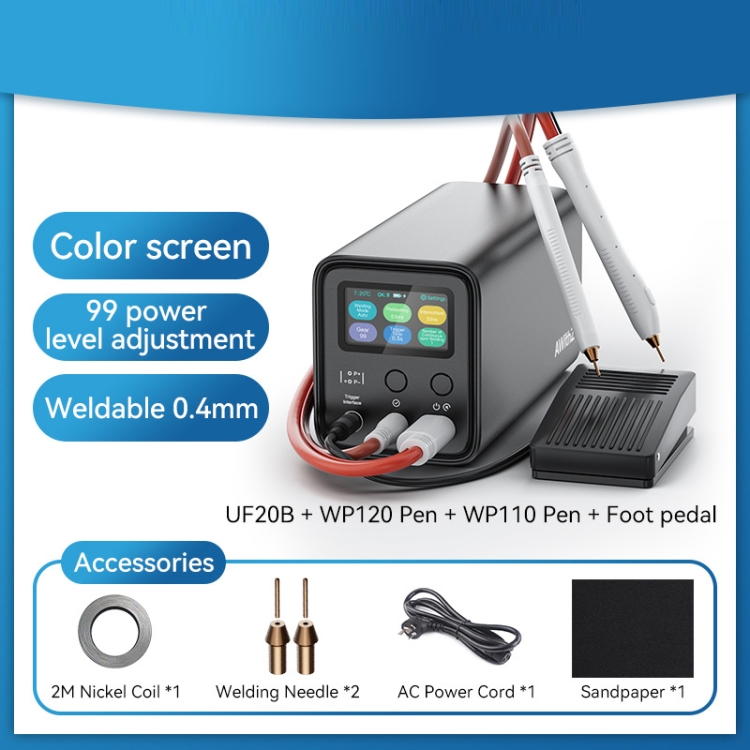

13. Configuration: host + WP110 spot welding pen x 1+WP120 spot welding pen x 1+2m nickel sheet+foot pedal+spot welding needle x 2+sandpaper x 1+AC power cord x 1
