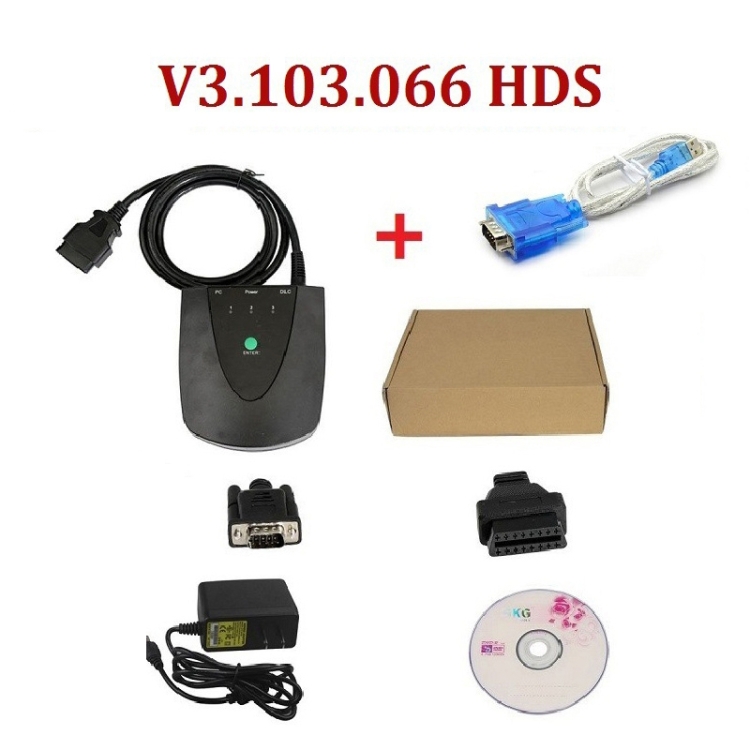

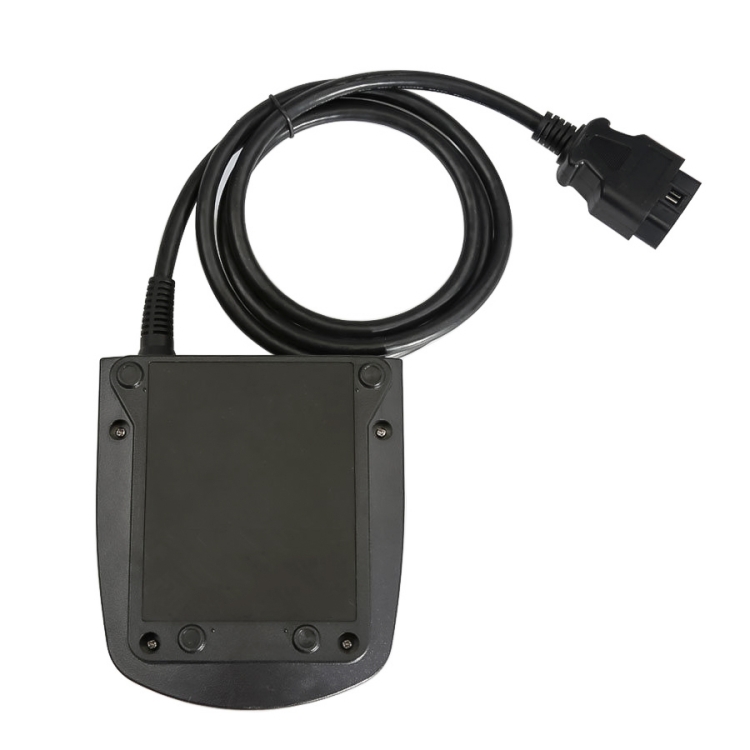

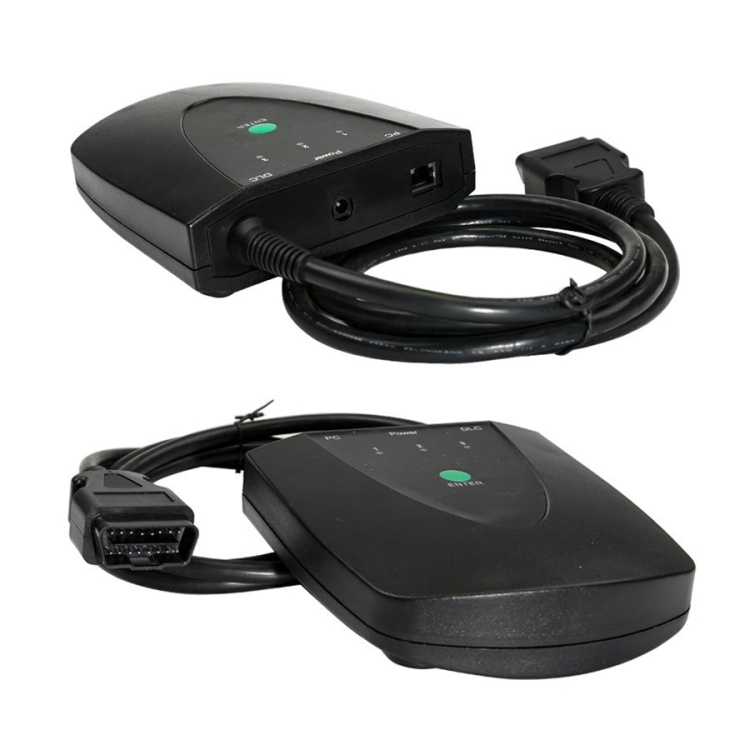

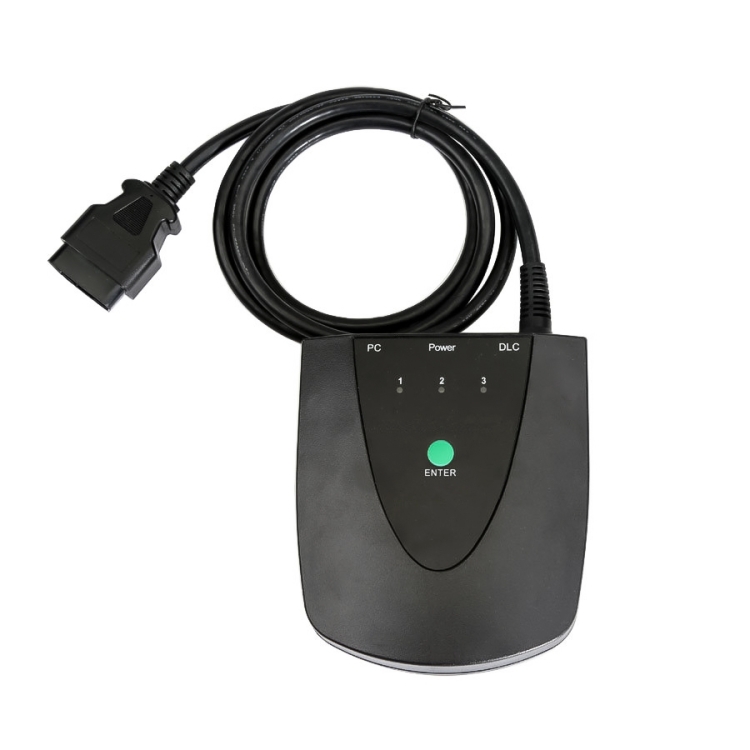

Car V3.103.066 HDS HIM OBD2 Diagnostic Tool with Z-TEK Double Board USB1.1 to RS232 Convert Connector, US Plug

Features
1. Software Version: V3.102.051, no need activation anymore
2. Support VIN Reader and IMMO.
3. Test Coverage: Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc.
4. For Honda HDS HIM supports CAN BUS system, and it can re-program the Auto ECU. This HIM is based on PC operation platform.
5. Use Z-TEK USB1.1 to RS232 Convert Connector together, It is easy to use for Honda HDS on the computer that without COM port
6. Support for Honda vehicles from 1992-2017 year
7. Supports Multi-language

Functions
Functions Supported by OBD-II Protocols:
1. Mode1: Displays system current parameters in digital form (up to 8 parameters at once)
2. Mode2: Displays parameters of freeze frame
3. Mode3: Reading and decoding of fault codes from control block memory
4. Mode4: Deleting of fault codes (memory clearing)
5. Mode5: Displays results of oxygen sensors
6. Mode6: Displays results of changeably controlled systems and components
7. Mode7: Displays results of constantly controlled systems and components
8. Mode8: Management of executive devices
9. Mode9: Displays car identification info.

Functions Supported by for Honda/Acura Protocols:
1. Reading and decoding fault codes from control blocks memory
2. Deleting fault codes
3. Displays system current parameters in digital form
4. Displays system current parameters in graphical form
5. Combined displaying of data
6. Management of executive devices
7. Logs keeping: writing and keeping of digital parameters in memory
8. Special functions: changing of permissible settings of blocks, programming etc.
