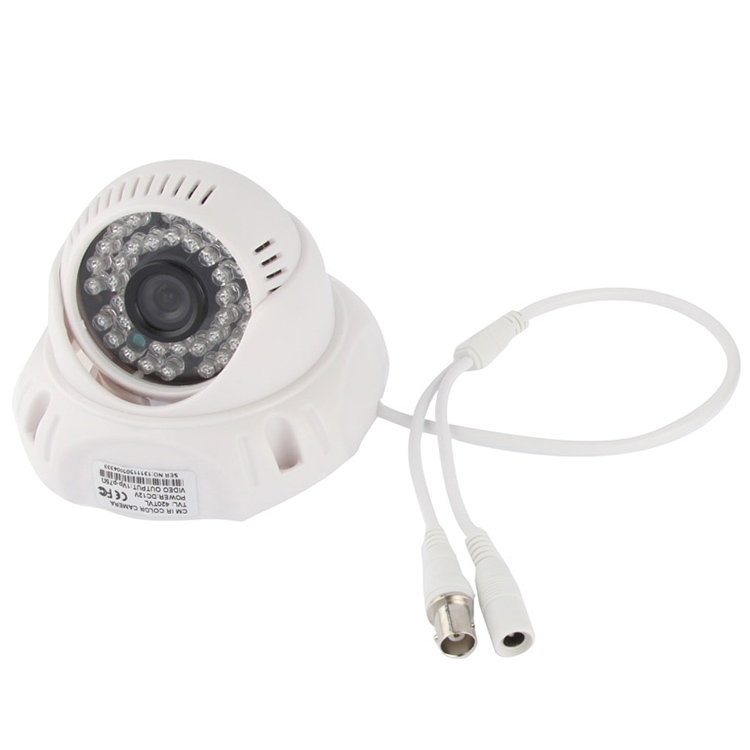

CMOS 420TVL 3.6mm Lens ABS Material Color Infrared Camera with 36 LED, IR Distance: 20m
AED 197.18 AED 197.18
Description
Video:
1. Imaging Sensor: CMOS
2. Scanning System: 2:1 Interlace
3. Total Pixel: PAL: 752H x 582V, NTSC: 768H x 492V
4. Horizontal Resolution: 420TVL
5. Illumination: 0lux with IR ON
6. S/N Ration: Above and equal 52dB
7. Video Output: 1.0Vp-p/75 ohm
8. Correction: 0.45
9. Frequency: H: 15.736KHz, V: 15.625KHz, V: HZ
10. Sync. System: Internal Synchronization
11. Day & Night: Auto Color to B/W
12. Electronic Shutter Speed: 1/50-1/10,000s
13. Cable Length: 40cm
Operational:
1. White Balance: ATW
2. BLC: AUTO
3. AGC: Auto/Manual
Lens:

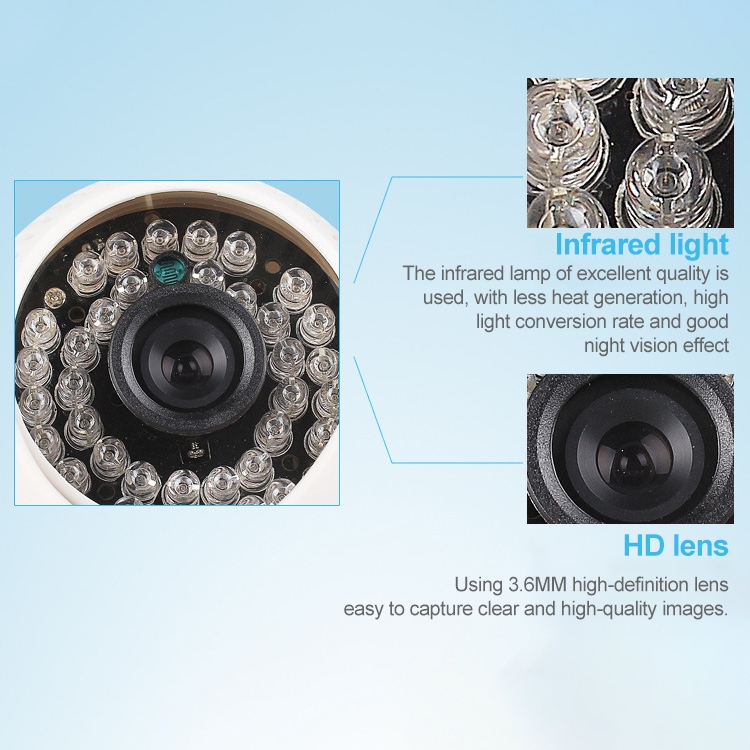

1. 36 IR LED
2. IR Distance: 20m
3. Lens Type: 3.6mm Fixed Lens (Standard)
4. Mount Type: CS
Electrical:
1. Power Supply: DC12V+/-5%
2. Power Consumption: Less and equal 6W
Environmental:
1. Work Consumption: Less and equal 85%RH
2. Operation Temperature: -15-80 degree
Physical:

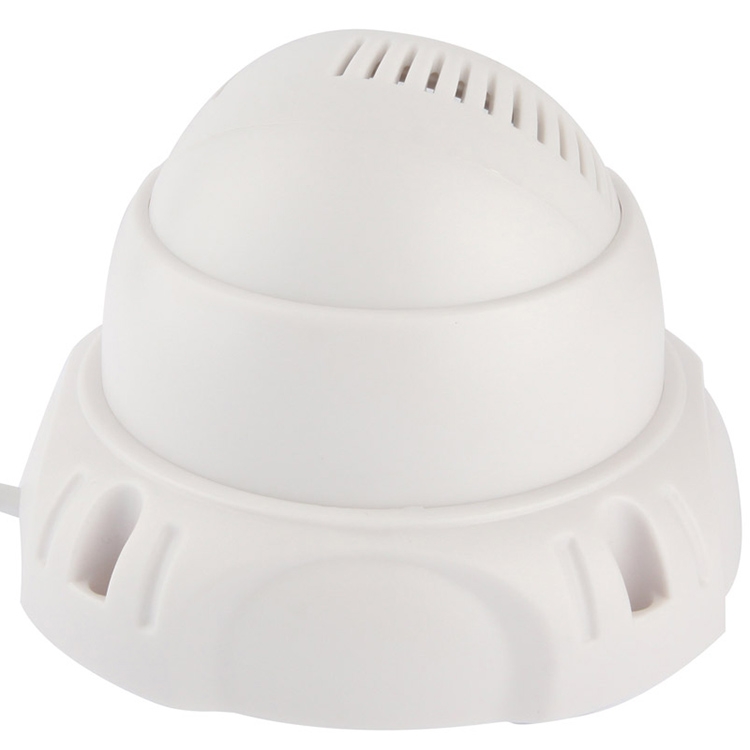

1. Case Material: ABS
2. Size: 112mm x 90mm
3. Net Weight: 157g
Specifications
Additional information
| Weight | 0.570 kg |
|---|---|
| Dimensions | 11.5 × 11.5 × 9.5 cm |
| SKU | |
| Option | VW-8316, VW-8106, 603NZ SHARP, 603NZ 420TVL, 603NZ 520TVL, 603NZ, 603NZ 500TVL, 6058H 420TVL, 6058H, 6058H 650TVL, 6058H SHARP, 6058H 520TVL, 420TVL 6058H, 6058H SONY, 6058H 500TVL, UM-601B, 700TVL, 650TVL, 420TVL, 6M51B, 6033F 650TVL, 6033F 420TVL, 6033F, 6033F SHARP, 6033F 700TVL, 36 LED, 24 LED, 700TVL CCD, 6078B 650TVL, 6078B, 625DIRV, 625DIRV 650TVL, 622QPIR 650TV, 622QPIR, with 24 LED, CMOS, SONY 650TVL, SONY 700TVL, CMOS 420TVL, 31Y-CM58A |
