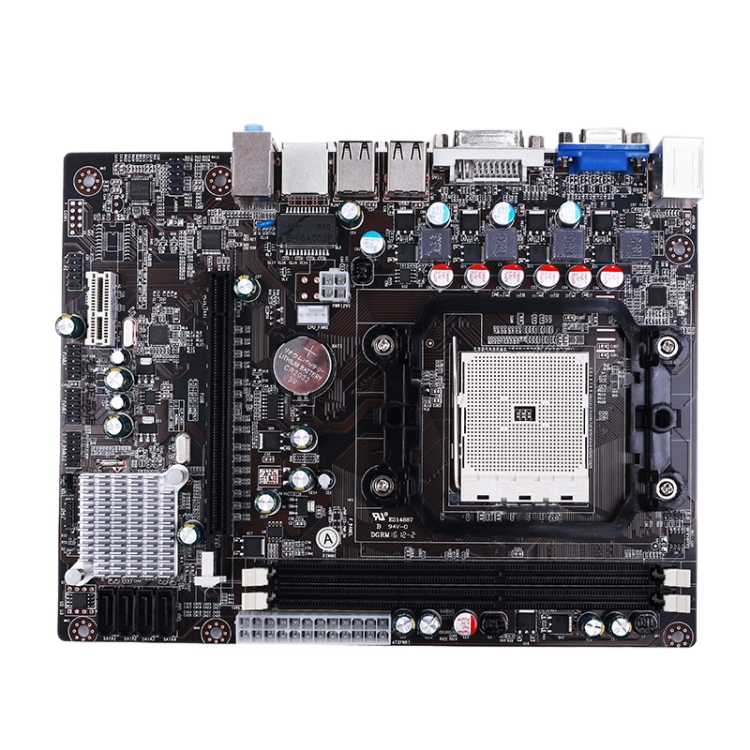

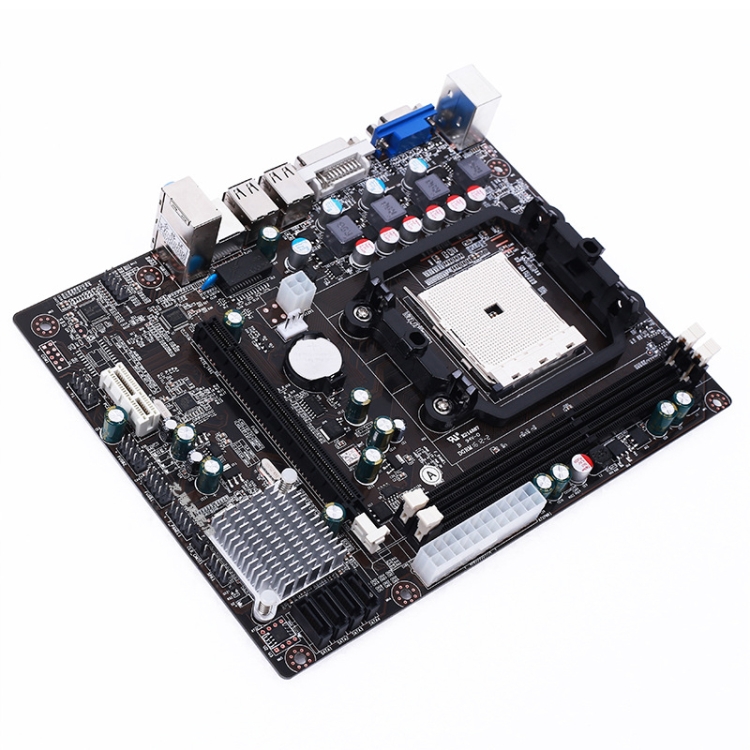

Computer Motherboard AMD A55 FM1 DDR3 Supports X4 631 / 641 A / E Series with Graphics Interface
AED 236.99 AED 236.99
Description
1. AMD A55 main chipset, AMD A55 FCH (Hudson D2) chipset.
2. Number of CPU slots: 1, CPU slot type: Socket FM1.
3. Support for AMD A8/A6/A4/E2 CPUs.
4. HT3.0 bus.
5. Memory type: DDR3, dual channel DDR3 1066/1333/1600 memory.
6. Integrated chip: graphics card / sound card / network card.
7. Audio chip: integrated six-channel audio chip.
8. Graphics chip: CPU built-in display chip (requires CPU support).
9. NIC chip: Onboard 100M NIC.
10. 8 USB ports, 4 rear and 4 front.
11. 1 x PCI-E X16 graphics card slot.
12. One PCI-E X1 slot.
13. No PCI slot, no IDE slot.
14. PS/2 interface: PS/2 mouse, PS/2 keyboard interface.

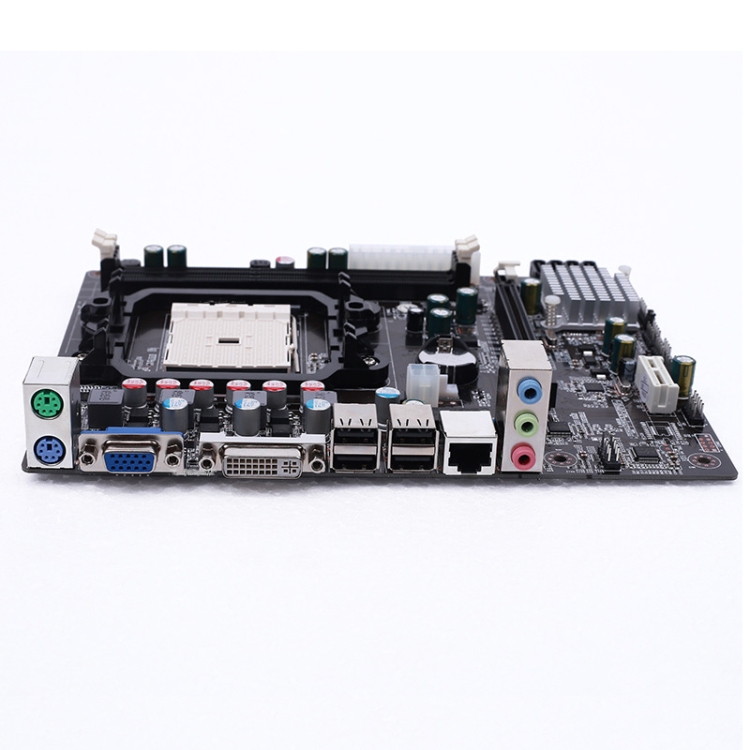

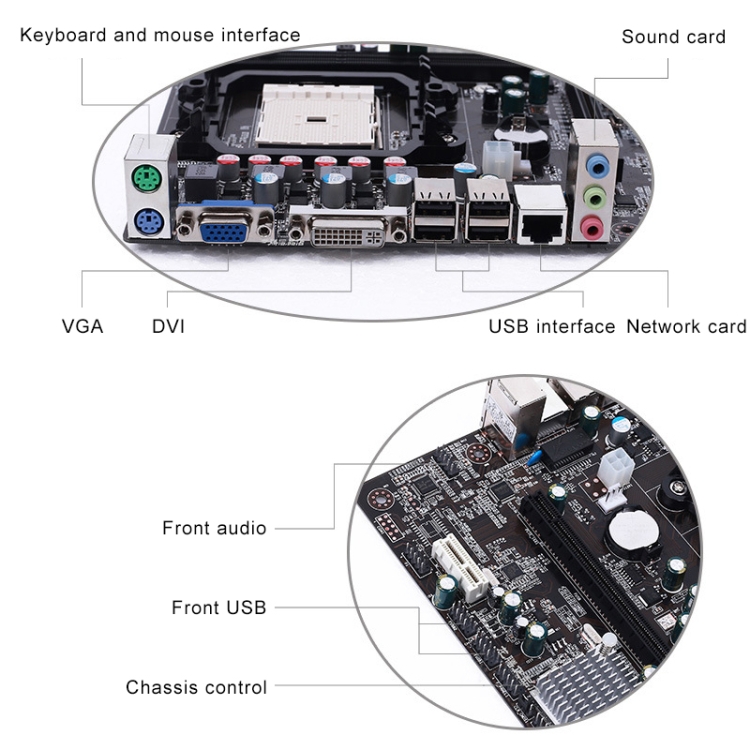

15. External port: audio interface / VGA interface / DVI interface / network card / USB interface.
16. Four SATAII interfaces.
17. Memory slot: 2 x DDR3 DIMM.
18. Micro ATX form factor.
19. Power socket: one 4-pin, one 24-pin.
Note:
You should not put the case on the chassis, no screws. In order to prevent the goods from meeting your needs, you can also return the goods. When testing the installation, you need to gently screw up.
Specifications
Additional information
| Weight | 0.908 kg |
|---|---|
| Dimensions | 24.0 × 20.0 × 4.0 cm |
| SKU | |
| Option | Intel X58 1366 Pin, Intel P55 1156 DDR3, Intel H55 1156 Pin DDR3, Intel H61 1155-pin DDR3, Intel H81 1150 DDR3, Intel G41-775 DDR3, Intel G31-775 DDR2, Intel nVIDIA NC61 DDR2, Intel B75-1155 DDR3, Intel 1151 DDR4, Intel P45-771 DDR3, Intel 945GV-775 DDR2, A78 DDR3, AMD A55 FM1 DDR3, AMD A68P + FM2b DDR3, AMD A85 FM2 DDR3 |
