CP-3023-01 150A 12-48V RV Yacht Double-row 6-way Busbar
AED 144.88
Description
1. Clear polycarbonate housing adds extra protection against fire, dust and accidental touch
2. Environmentally friendly flame retardant nylon base, with the best mechanical strength and durability
3. Terminal threaded fasteners feature stainless steel split and ring lock washers for stability in high vibration environments
4. Stainless steel studs and screws are rust-proof and anti-corrosion, suitable for any environment
5. Reinforced polycarbonate cover connected with nylon nuts to prevent accidental short circuit
6. Parameters:
Material: Nickel-plated brass contact plate/PC insulating cover/polycarbonate nylon base/stainless steel screws
Input voltage: DC: DC 12-48V, AC: AC 110-300V
Rated current: 130A/AC; 150A/DC
Terminal stud: M4, M6
Scope of application: In the power system of automobiles, RVs, ships, yachts, pickup trucks, caravans, etc.
Specifications
Additional information
| Weight | 0.164 kg |
|---|---|

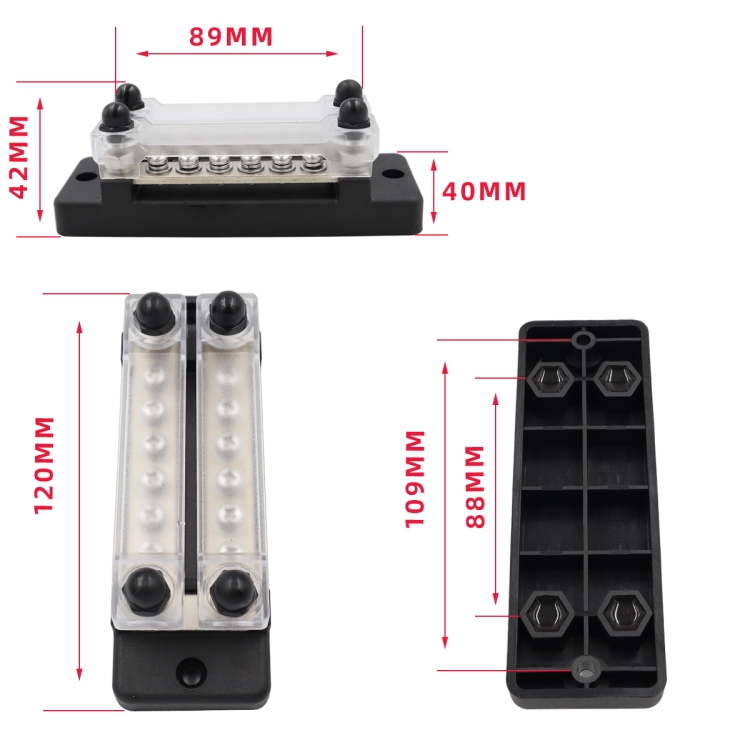

| Dimensions | 12.0 × 4.3 × 4.0 cm |
| Option | CP-4002, CP-4051, CP-3024, CP-3025, CP-3050, CP-3051, CP-3052, CP-3053, CP-3090, CP-3110, CP-3111, CP-3114, CP-3115, CP-3118, CP-3119, CP-3120, CP-3088-02, CP-3116-01, CP-3023-01, CP-3023-02, CP-3087-01, CP-3087-02, CP-3088-01, CP-3089-01, CP-3089-02, CP-3109-01, CP-3109-02, CP-3116-02 |
