DC 6-28V 3A PWM Speed Adjustable Reversible Switch DC Motor Driver Reversing
AED 65.33 AED 65.33
Estimated Delivery: 5 Feb – 11 Feb (3–7 working days)
Description
1. The 1203BB DC motor speed regulator controls the speed of the DC motor by adjusting pulse width modulation (PWM). It provides 3A of continuous current to your DC motor or other DC load.

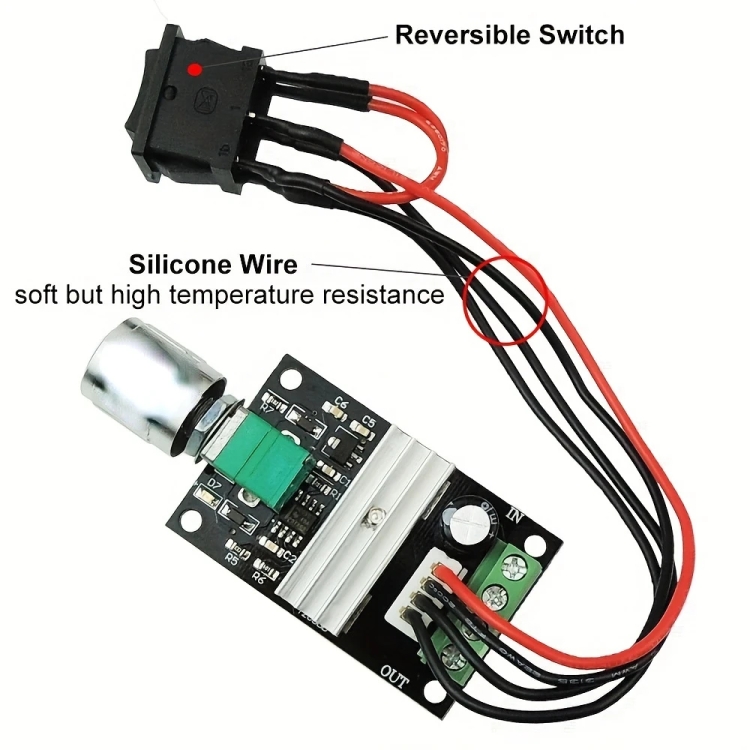

2. The circuit contains a 3A fuse for reverse power supply, and controls the forward, reverse, and stop of the DC motor through a switch.
3. Material: metal
4. Input voltage: DC 6-28V
5. Dimensions: 5 x 3.2 x 1.5cm
6. Weight: 30g
Instructions:
Make sure the power is off before trying to connect the controller.

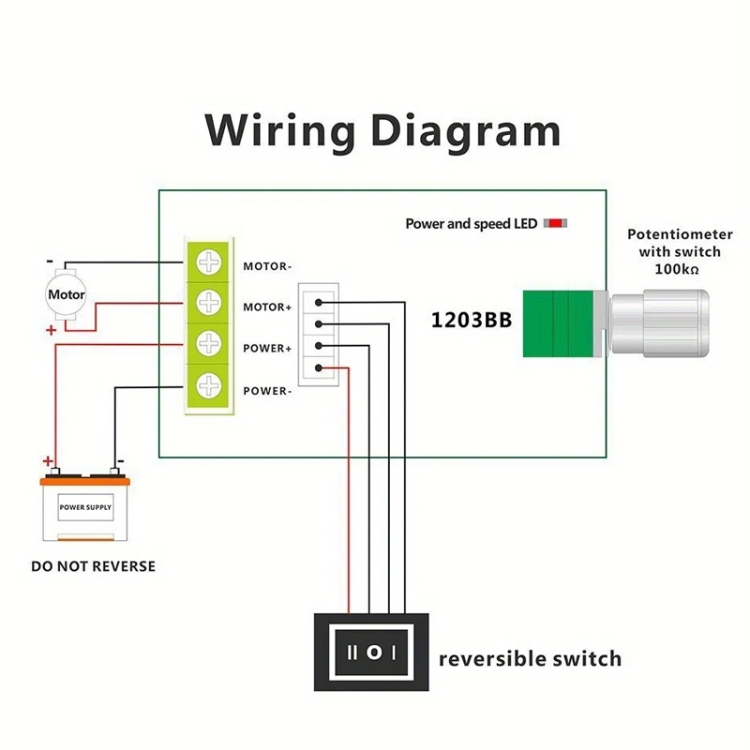

1. Connect the wires according to the wiring diagram.
2. Turn on the power and adjust the potentiometer.
3. LED indicates power on and motor speed.
Warning: Do not connect the positive and negative power supplies reversely. This will damage the controller!
Specifications
Additional information
| Weight | 0.044 kg |
|---|---|
| Dimensions | 8.0 × 5.0 × 3.0 cm |
| Option | 12V-40V 10A Without Stand, 12V-40V 10A With Stand, 1803BK 1.8V/3V/5V/6V/12V 2A, LDTR-WG0269 DC 6V 12V 24V 28V 3A 80W, 6-28V 3A, 1203BK 6V 12V 24V 28V 3A |
