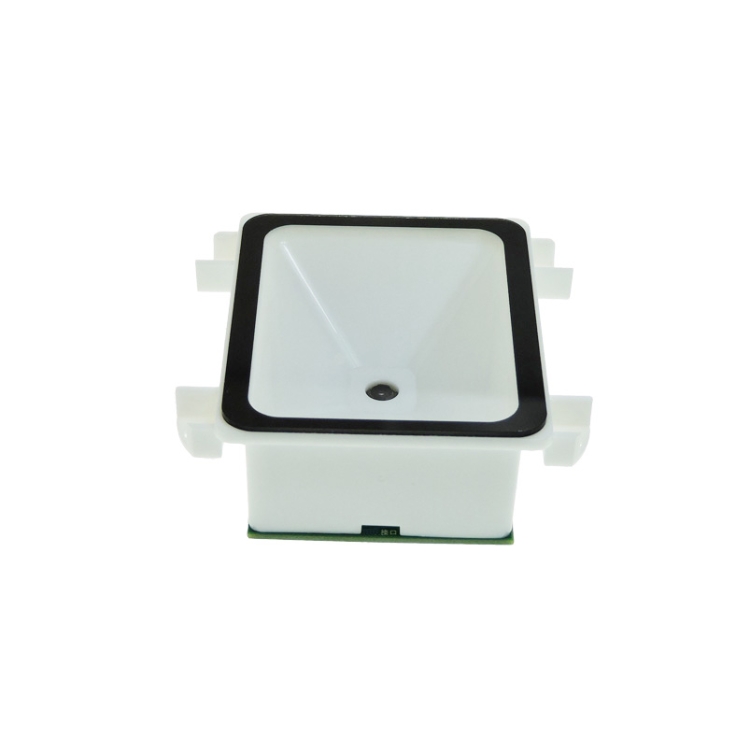

EVAWGIB DL-X921T 1D/QR Code Scanning Identification Module, Interface:

1. Scanning mode: auto sensing
2. Light source: 620nm visible red light diode
3. Recognition code system:
– 1D codes: Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, Code11, ITF14, Matrix 25, Industrial 25, Plessey, MSI-Plessey
– QR code: PDF417, QR, Aztec, DataMatrix, Maxicode, MicroPDF417

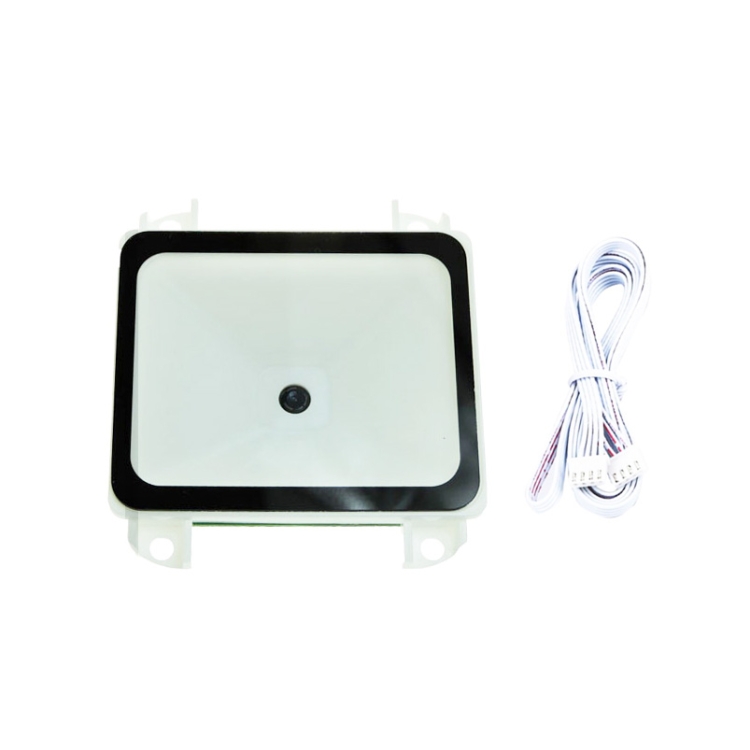

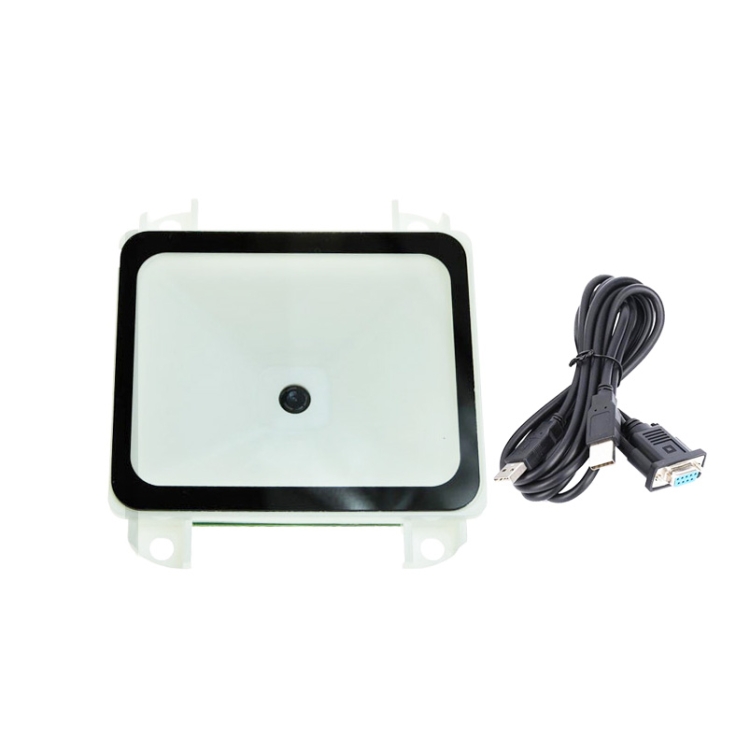

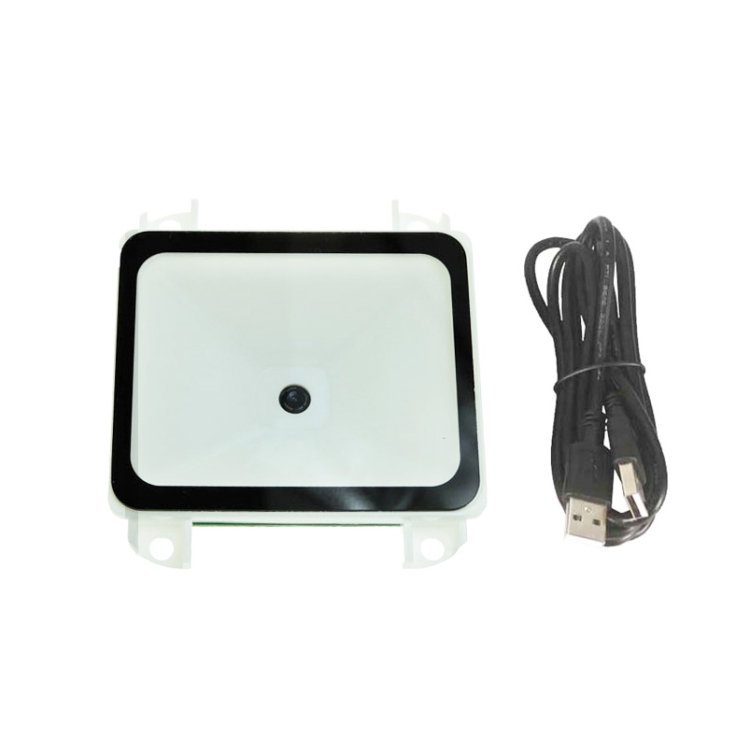

4. Data interface: USB/TTL/RS232
5. Prompt mode: buzzer and LED indication
6. Power consumption: within 700mW
7. Working voltage: 5V (within 6V power supply)
8. Resolution: 300,000 pixels
9. Scanning rate: 300 times/second
10. Image sensor: CMOS
11. Recognition code system: one-dimensional code, paper code, screen code, two-dimensional code
12. Weight: about 22 grams

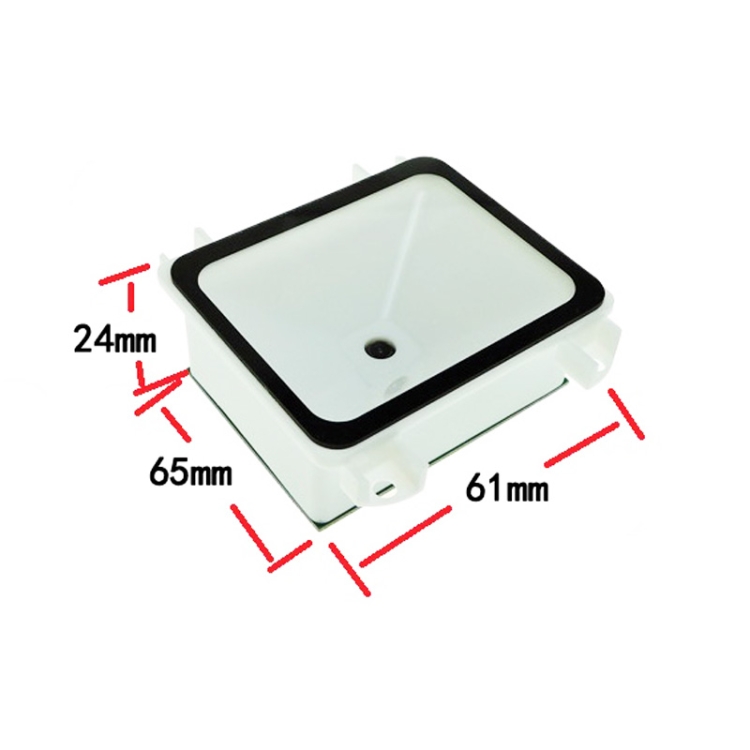

13. Size: about 6.1×6.5×2.4cm
