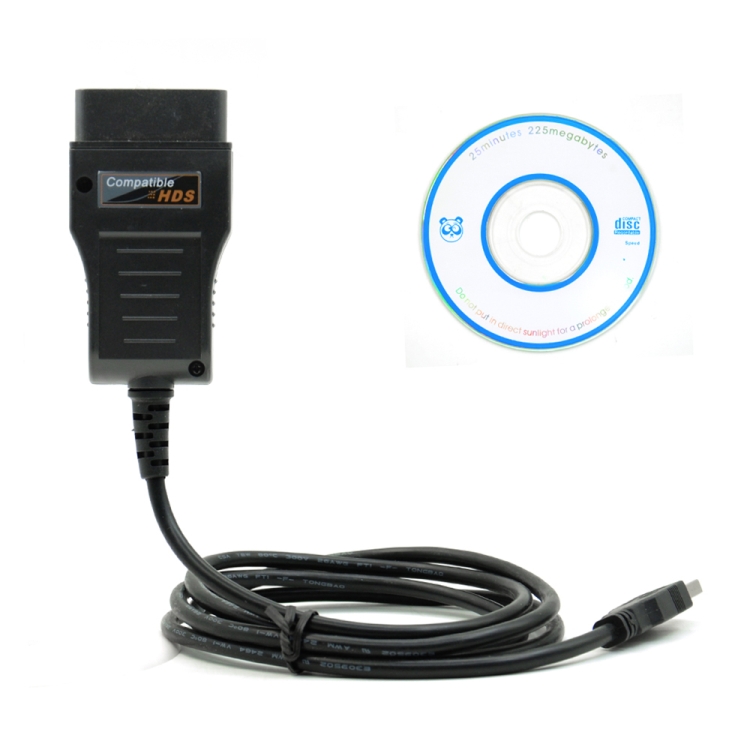

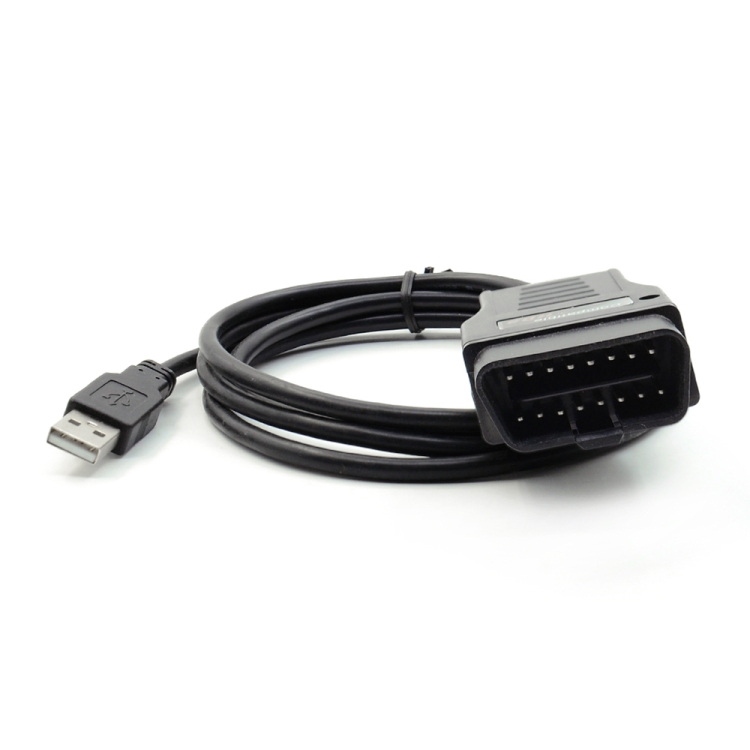

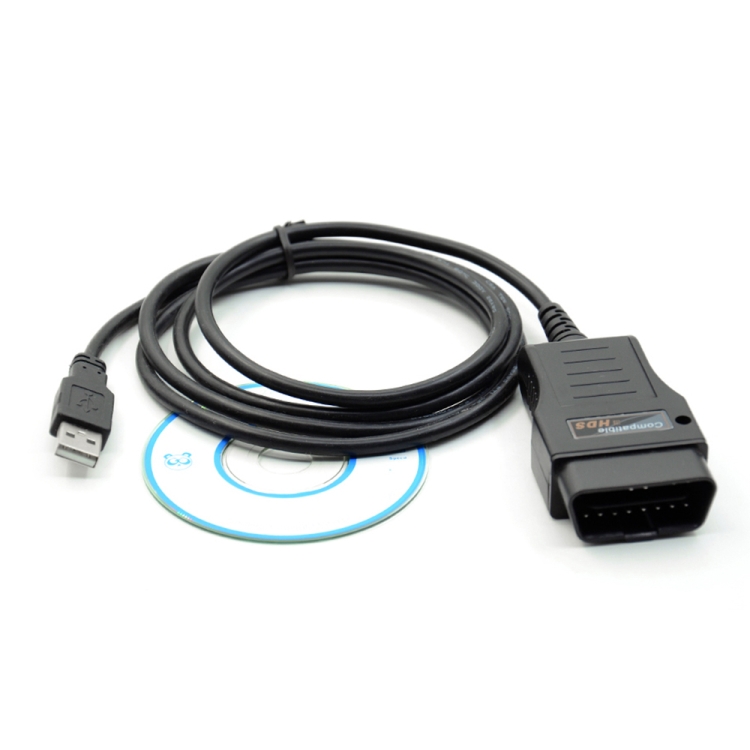

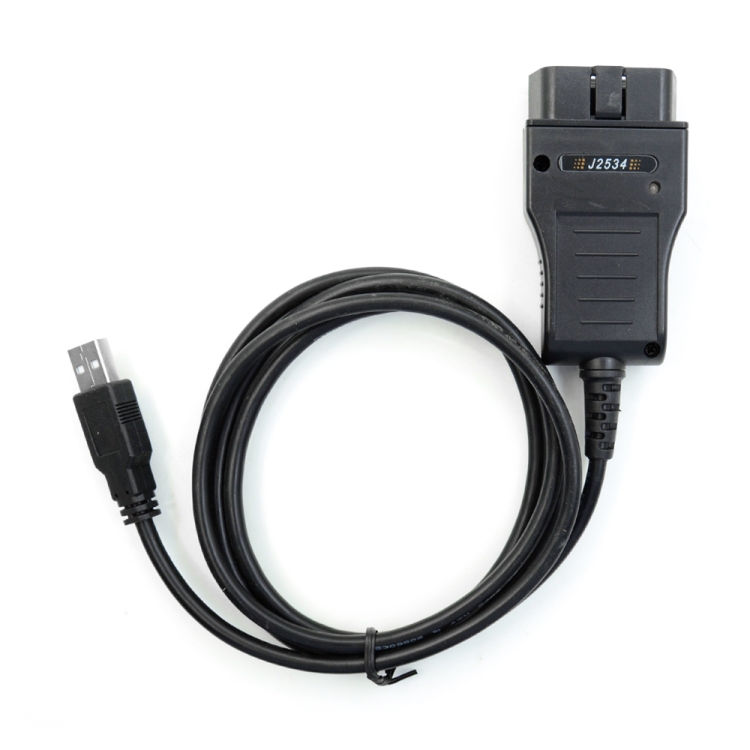

HDS 16 Pin OBDII USB Interface Diagnostic Cable for Honda
AED 326.28 AED 326.28
Description
Features
1. Support most 1996 and newer vehicles with OBDII/DLC3 diagnostics
2. Support Honda HDS OEM diagnostic software
3. Supports Diagnostics and Active tests
4. Easy to install and carry
5. Cost-effective
6. High performance with ARM chip inside
Protocols
1. K-Line ISO 9141
2. KWP 2000 ISO 14230-4
3. CAN 2.0B ISO 11898
4. CAN ISO 15765-4
Specifications
1. Diagnostic Interface:16 PIN
2. USB Interface: USB 2.0
3. Power: DC 5 V – 36 V
4. Consumption: 0.3 W
5. Dimensions: 76 mmx 43 mm x 19 mm
6. Supported Languages: English/ Chinese/ Spanish/ French/ Kor/ Portuguese/ Indonesian
7. Operating System: Windows XP SP3
8. Update: Via CD
Specifications
Additional information
| Weight | 0.110 kg |
|---|---|
| Dimensions | 22.0 × 16.0 × 6.0 cm |
| SKU | |
| Option | Car Diagnostic OBDII Tool, 16 Pin, 5 Pin to 16 Pin, 3 Pin to 16 Pin, 3 Pin to 16 Pin OBD Cable, 12 Pin to 16 Pin, 16 Pin to 14 Pin, 9 Pin to 16 Pin, 17 Pin to 16 Pin, 20 Pin to 16 Pin, 3 x 3 Pin to 16 Pin, 16 Pin Female to 16 Pin Male, Galletto EOBD 1260 Diagnostic Cable |
| Model | For BMW, For Fiat |
