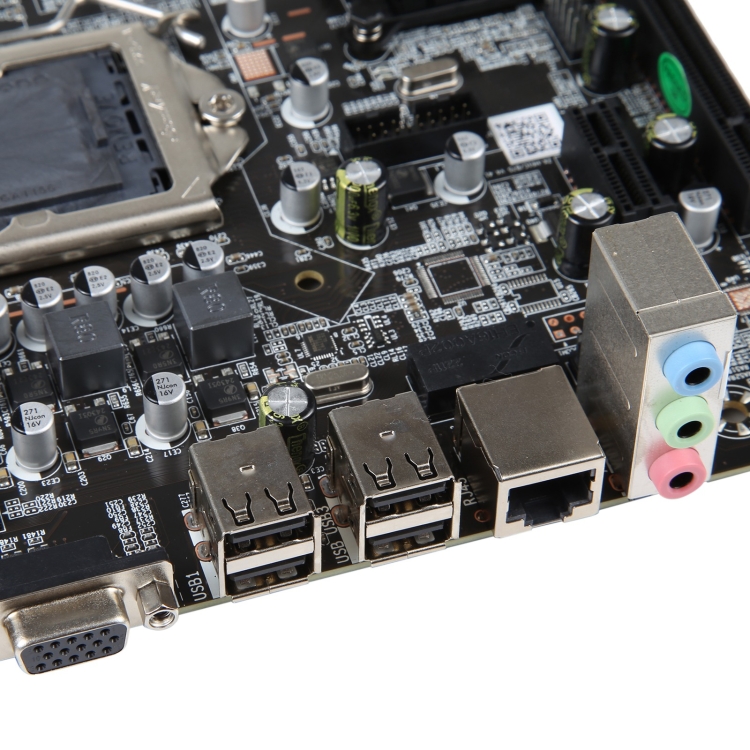

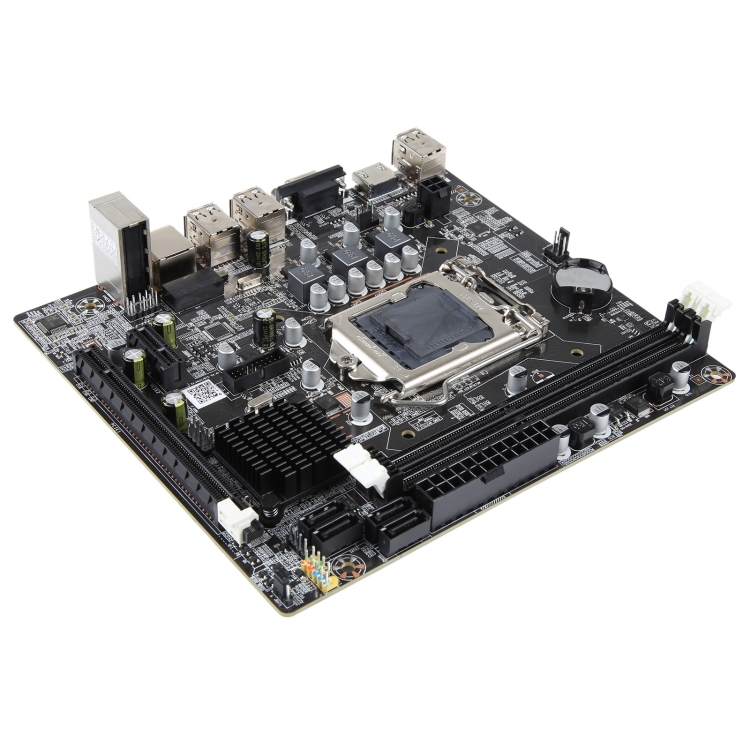

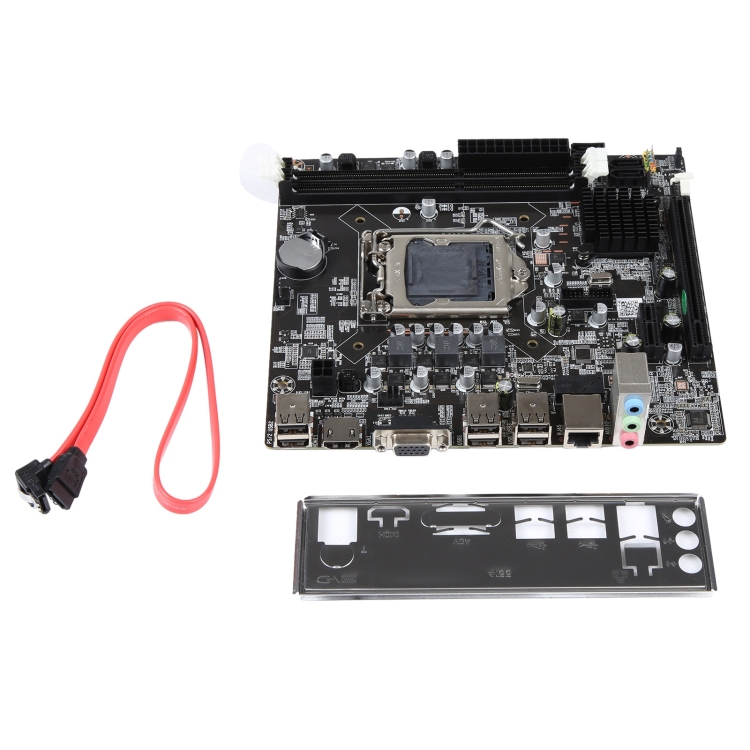

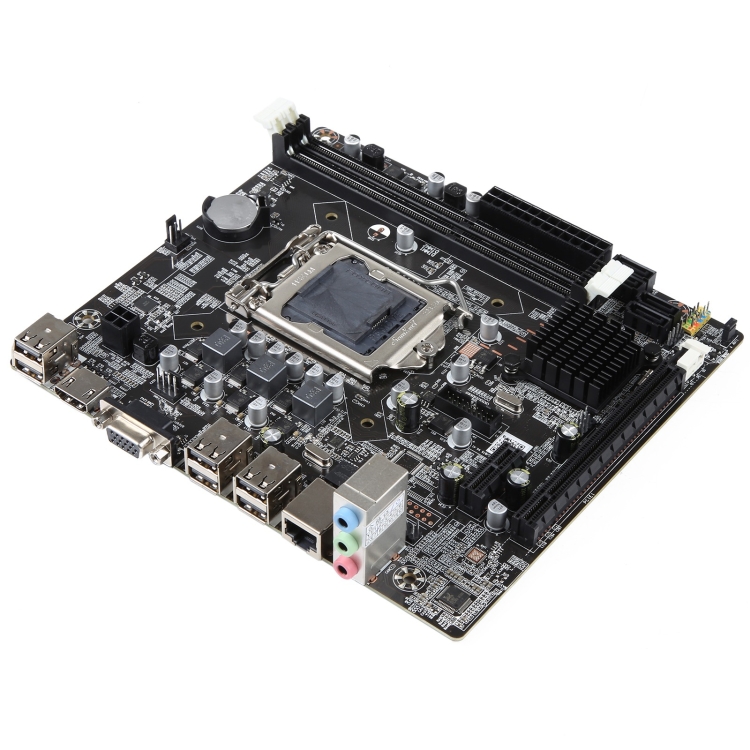

Intel H61 1155-pin DDR3 Motherboard Supports Dual-core / Quad-core i5 / i3 CPU
AED 213.53 AED 213.53
Description
1. Intel H61 main chipset, Intel H61 chipset.
2. Number of CPU slots: 1, CPU slot type: Supports Intel Socket 1155 interface processor.
3. Support Intel 1155 full range of processing Intel_Corei7/i5/i3/Pentiun/Celeron CPU.
4. QPI: QPI6.4GT/s.
5. Memory type: DDR3, dual channel DDR3 1066/1333/1600 memory.
6. Integrated chip: graphics card / sound card / network card.
7. Audio chip: integrated eight-channel audio chip.
8. Graphics chip: CPU built-in display chip (requires CPU support).
9. NIC chip: Onboard 100M NIC.
10.10 USB ports, 6 rear, 4 front.
11. PCI-E 3.0 16X graphics card slot.
12.1 PCI-Ex1 slots.
13. No IDE slot, no FDD slot.
14. PS/2 interface: PS/2 mouse, PS/2 keyboard interface.
15. External port: audio interface / VGA interface / HDMI high-definition port / network card / USB interface.
16.2-4 SATAII interfaces.
17. Memory slot: 2 x DDR3 DIMM.
18. Micro ATX form factor.
19. Power socket: one 4-pin, one 24-pin.
Note:
You should not put the case on the chassis, no screws. In order to prevent the goods from meeting your needs, you can also return the goods. When testing the installation, you need to gently screw up.
Specifications
Additional information
| Weight | 0.590 kg |
|---|---|
| Dimensions | 24.0 × 20.0 × 4.0 cm |
| Option | Intel X58 1366 Pin, Intel P55 1156 DDR3, Intel H55 1156 Pin DDR3, Intel H61 1155-pin DDR3, Intel H81 1150 DDR3, Intel G41-775 DDR3, Intel G31-775 DDR2, Intel nVIDIA NC61 DDR2, Intel B75-1155 DDR3, Intel 1151 DDR4, Intel P45-771 DDR3, Intel 945GV-775 DDR2, A78 DDR3, AMD A55 FM1 DDR3, AMD A68P + FM2b DDR3, AMD A85 FM2 DDR3 |
