Intel X58 Computer Game Board 1366 Pin Server ECC Take X5650 5570

1. Intel X58 main chipset, Intel X58 + ICH10 chipset.
2. Number of CPU slots: 1, CPU slot type: LGA1366.
3. Support Intel Core i3/i5/i7 CPU.
4. QPI: QPI4.8GT/s-6.4GT/s.
5. Memory type: DDR3, dual channel DDR3 1066/1333/1600 memory.
6. Integrated chip: sound card / network card.
7. Audio chip: integrated six-channel audio chip.
8. Graphics chip: None (requires a separate graphics card).
9. NIC chip: Onboard 100M NIC.
10.10 USB ports, 8 rear and 2 front.

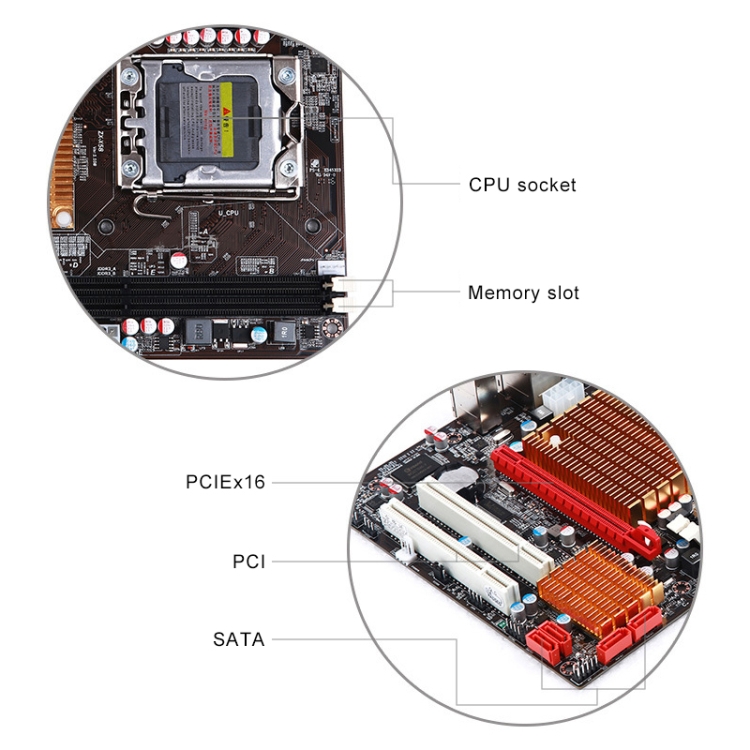

11.1 x PCI-E X16 graphics card slot.
12.1-2 PCI slots.
13. No IDE slot.

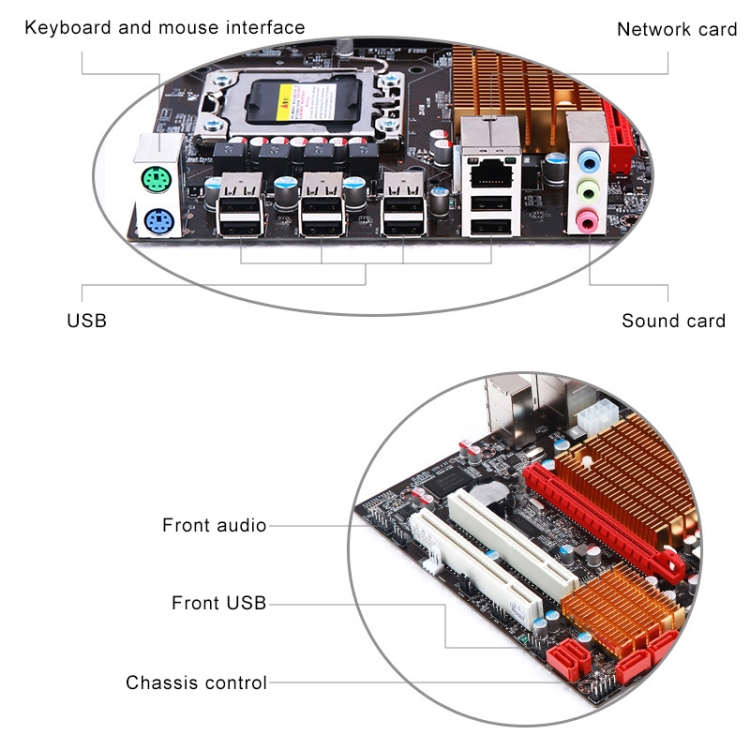

14. PS/2 interface: PS/2 mouse, PS/2 keyboard interface.
15. External port: audio interface / network card / USB interface / front COM.
16.4 SATAII interfaces.
17. Memory slot: 2 x DDR3 DIMM.
18. Micro ATX form factor.
19. Power socket: one 4-pin, one 24-pin.

Note:
You should not put the case on the chassis, no screws. In order to prevent the goods from meeting your needs, you can also return the goods. When testing the installation, you need to gently screw up.
