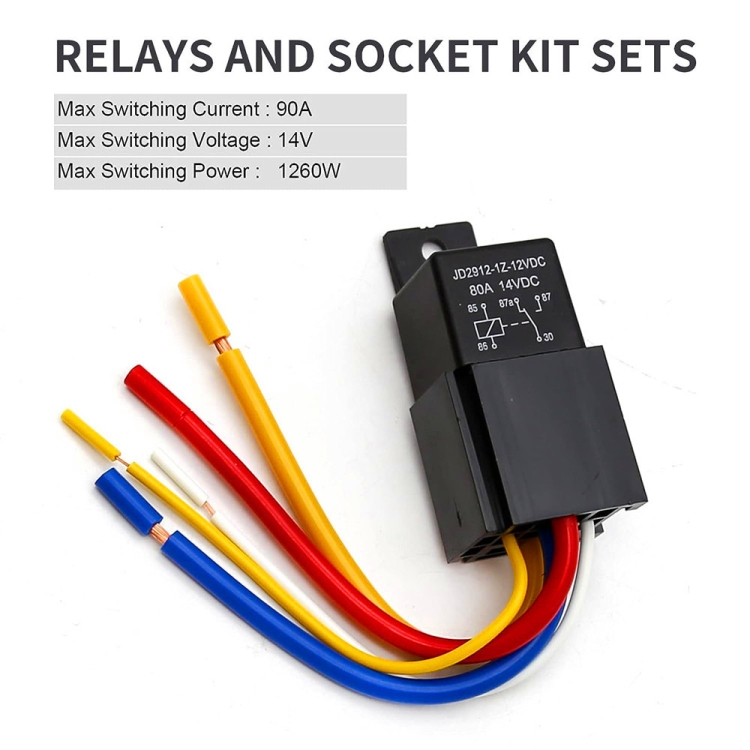

JD2912 80A 12V 5 Pin Car Relay with Wire SPDT Socket Plug

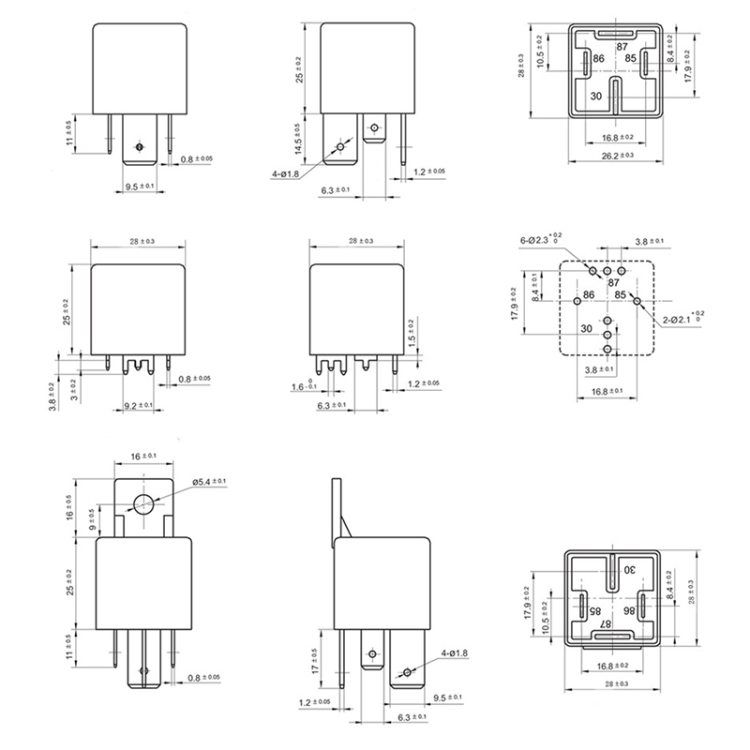

1. Overall dimensions: 28 x 28 x 25.0mm

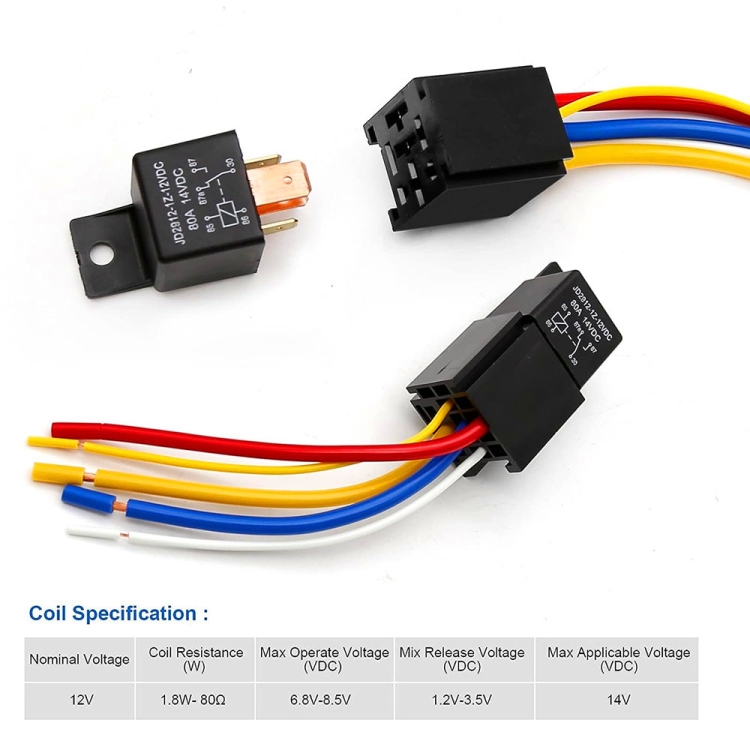

2. Coil power: 1.8W
3. Contact form: 1a, 1b, 1c
4. Contact capacity: 1a:80A 14VDC / 1b:60A 14VDC / 1c:80A/60A 14VDC
5. Coil voltage: 6VDC, 9VDC, 12VDC, 24VDC, 48VDC, 36VDC, 72VDC
6. Contact resistance: less than or equal to 50 milliohms
7. Insulation resistance: greater than or equal to 100 milliohms
8. Lifespan:
– Electrical: 1 x 100000 times
– Mechanical: 1 x 10000000 times
9. Dielectric withstand voltage: 500VAC between open contacts, 500VAC between coil contacts
10. Ambient temperature: -40 degrees Celsius to +125 degrees Celsius

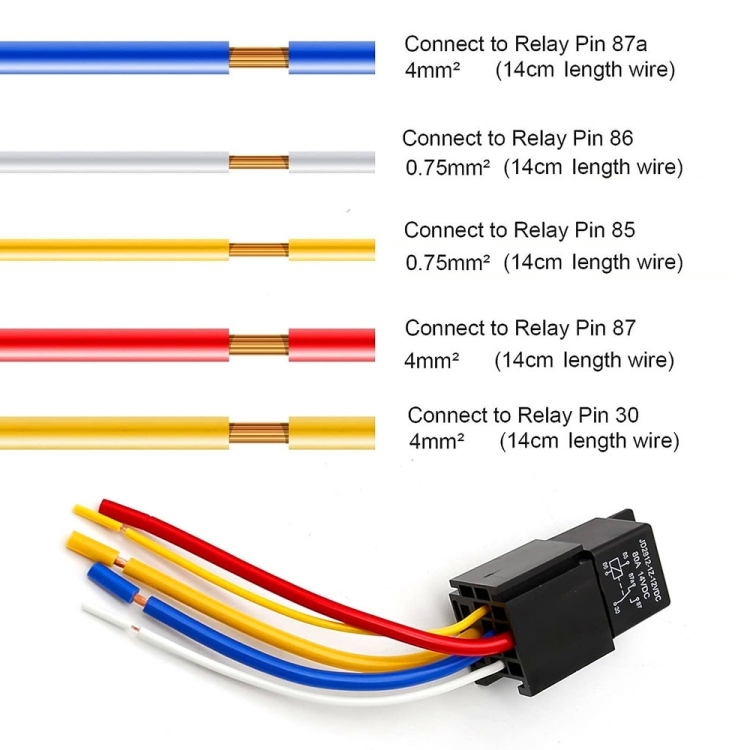

11. Installation form: quick connection type and socket type
12. Product features: large capacity, can switch 80A current, and can provide standard contact forms: 1 set of normally open, 1 set of normally closed, and 1 set of switching.
13. Product use: automobile control device
14. Simple and convenient installation, easy to replace and use.
