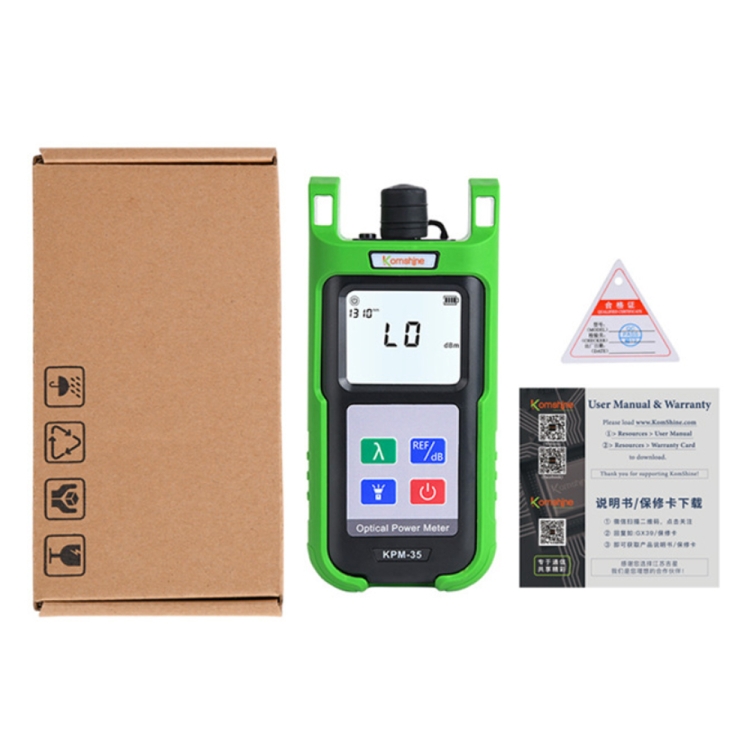

Komshine High-Precision Optical Power Meter Optical Cable Line Tester

1. Wavelength range: 800~1700nm
2. Probe type: InGaAs
3. Power measurement range: -70 ~ +6 dBm / -50 ~ +26dBm

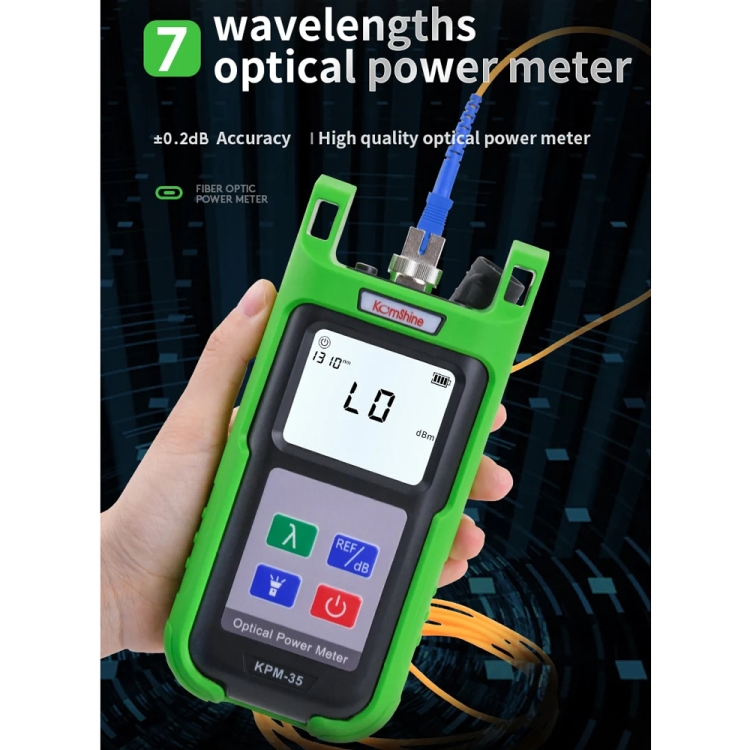

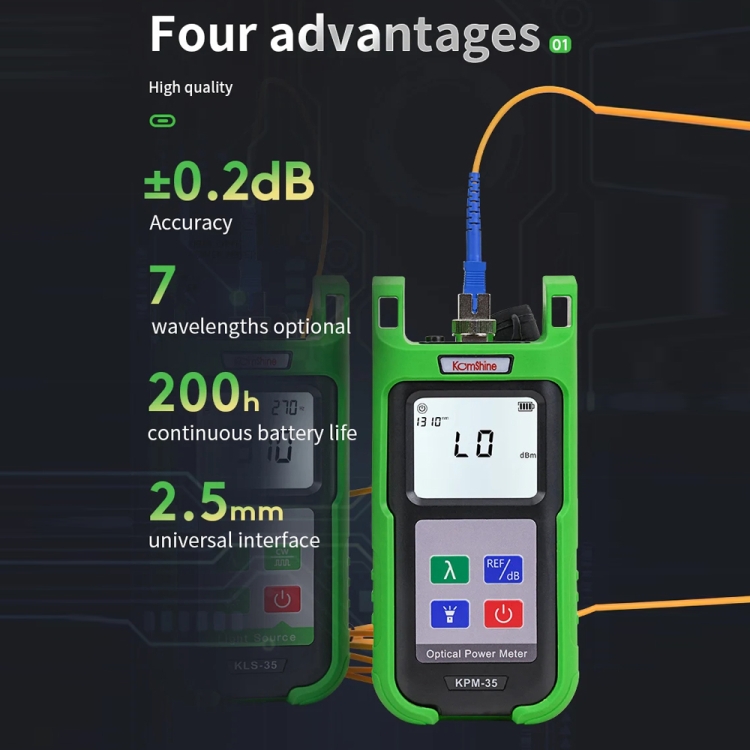

4. Accuracy: 0.2dB

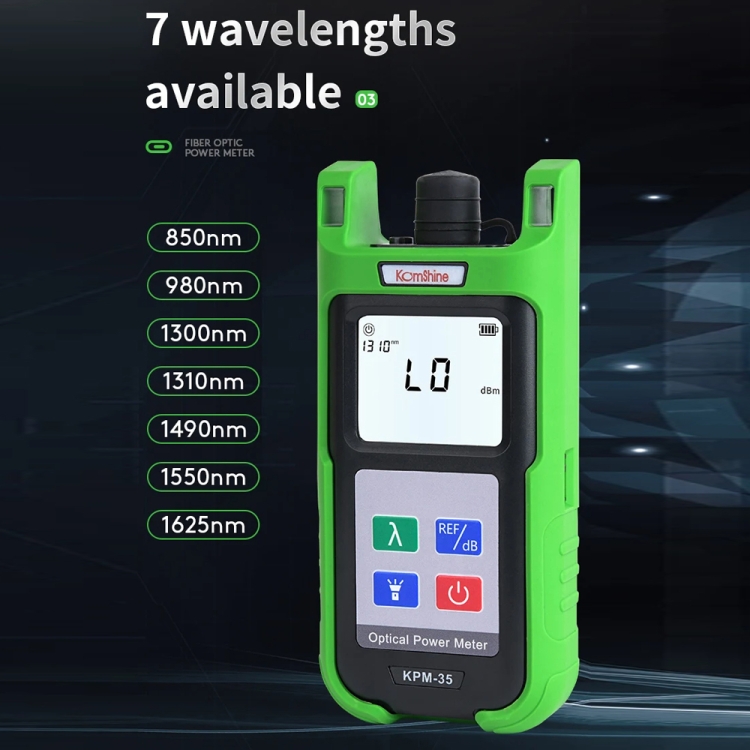

5. Standard wavelength: 850, 980, 1300, 1310, 1490, 1550, 1625nm
6. Power supply: 3 AA 1.5V batteries (not included)
7. Display resolution: 0.01dB
8. 2.5mm universal interface design
9. Test parameters can be adjusted manually and independently according to actual test requirements.

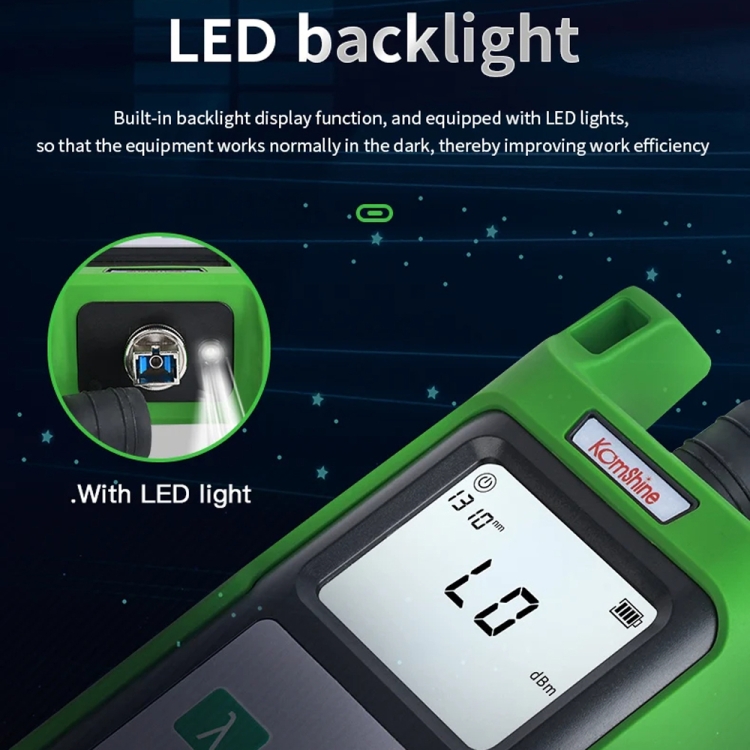

10. It has a backlight display function and is equipped with LED lights so that the device can work normally in the dark, thereby improving work efficiency.

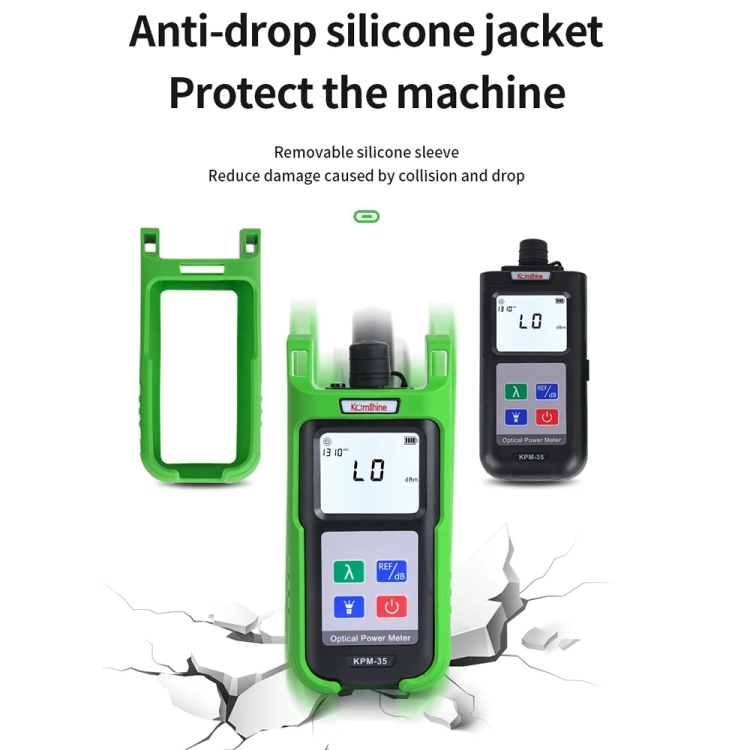

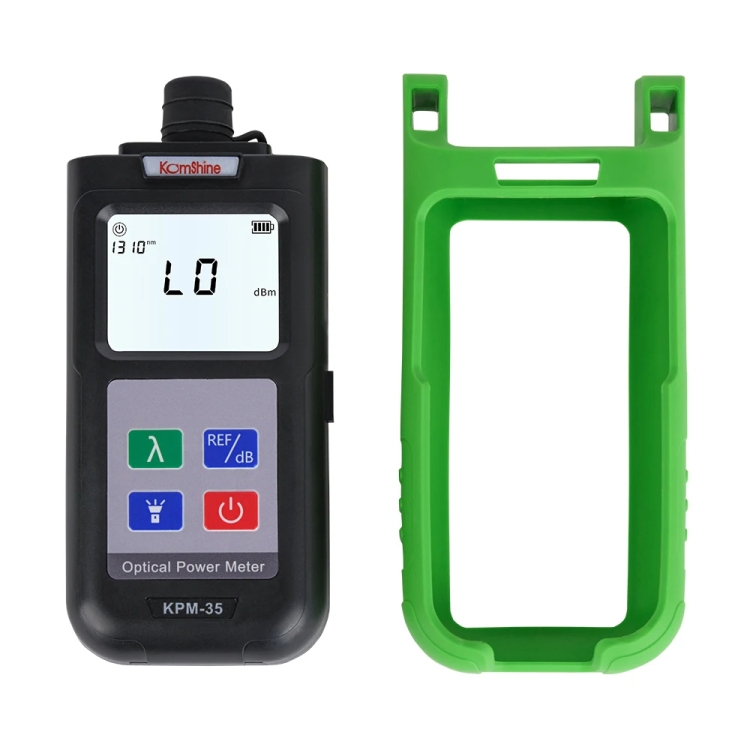

11. Removable silicone cover to reduce injuries caused by collisions and falls
12. Ergonomic design, one-handed operation
13. Type A: -70dBm～+6dBm (mainly used in telecommunications, mobile, China Unicom, etc.)
14. Type C: -50dBm～+26dBm (mainly used in radio and television, monitoring, etc.)
15. Size: 160x85x45mm
16. Net weight: 220 grams
