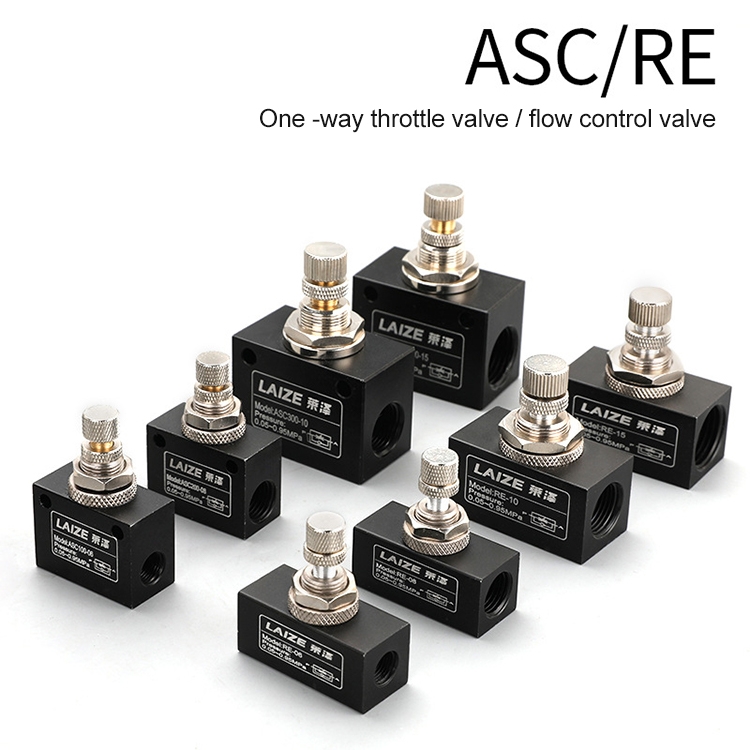

LAIZE Pneumatic Speed Regulating One-way Throttle Valve
Price range: AED 191.92 through AED 202.40
Description
1. The structure is light and compact.

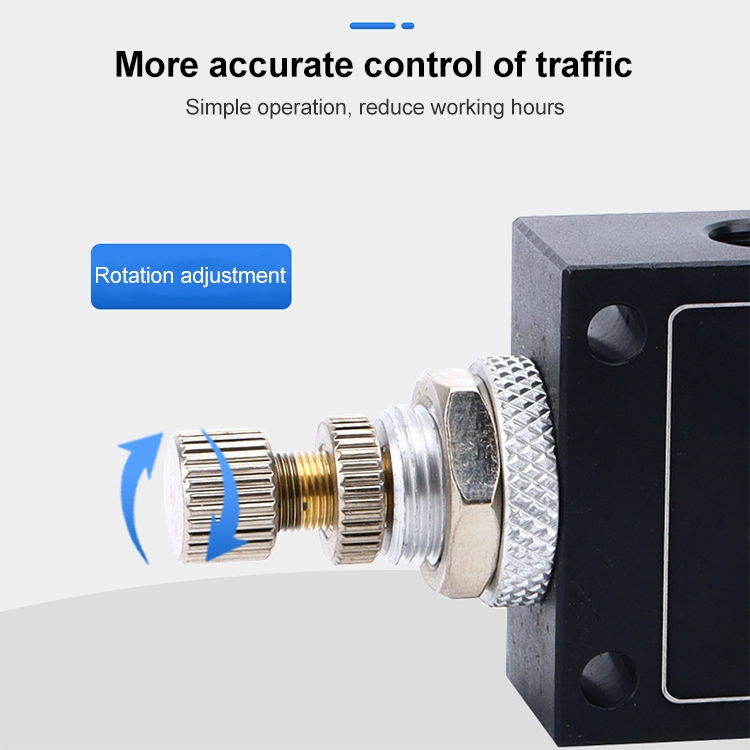

2. Exhaust throttling, sensitive adjustment and high precision.
3. Multi-position installation, easy to install and use.

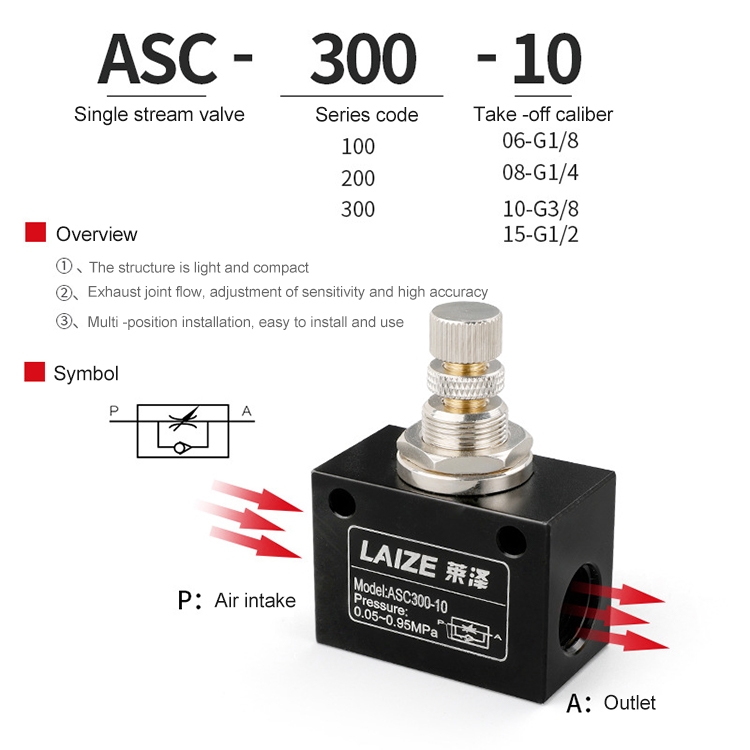

4. One-way throttle valve parameters:
Diameter:
ASC100-06 DN06mm
ASC200-08 DN08mm
ASC300-10 DN10mm

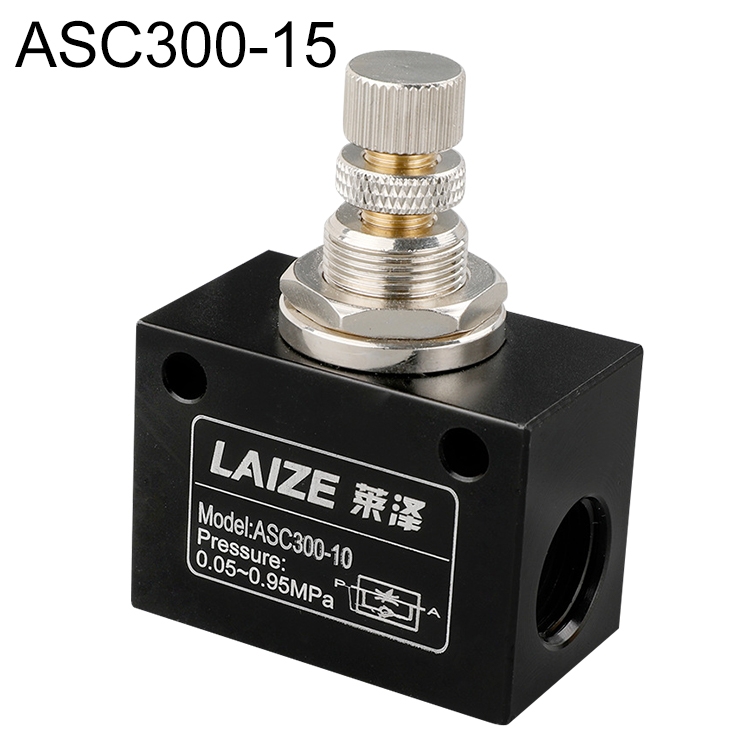

ASC300-15 DN15mm
Pressure: 1MPa
5. Flow valve parameters:
Diameter:

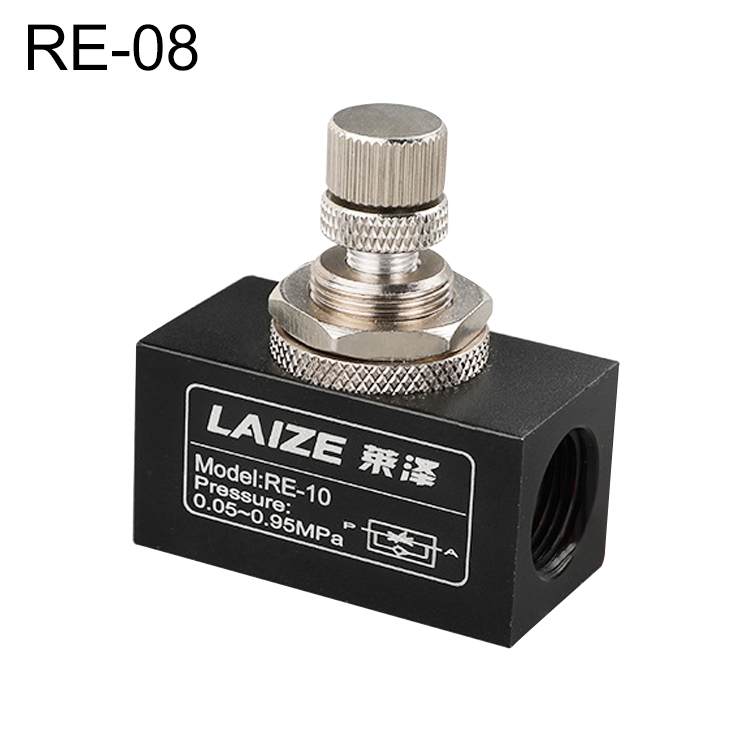

RE-06 DN06mm
RE-08 DN08mm
RE-10 DN10mm
RE-15 DN15mm
Pressure: 0.8MPa

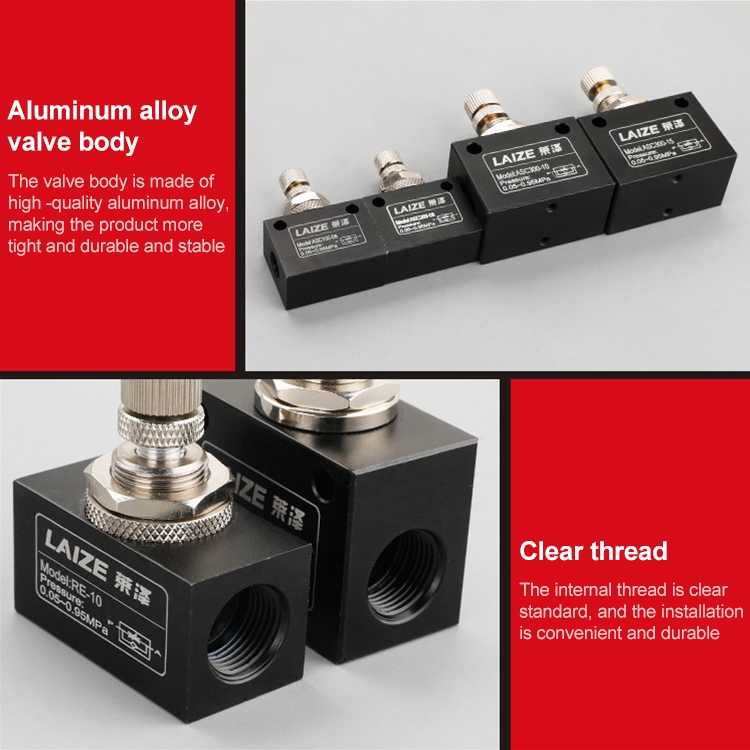

6. Material: aluminum alloy
Specifications
Additional information
| Weight | 1.009 kg |
|---|---|
| Dimensions | 12.0 × 10.0 × 8.0 cm |
| Option | ASC100-06 DN06mm, ASC200-08 DN08mm, ASC300-10 DN10mm, ASC300-15 DN15mm, RE-06 DN06mm, RE-08 DN08mm, RE-10 DN10mm, RE-10 DN15mm |
