LM2596-ADJ DC-DC Adjustable Step-Down Power Module 4V-40V To 1.23-35V 3A Stereotype Board

1. Stable operation at 3A at room temperature (test conditions 29°C, humidity 50%), if working for a long time it is recommended to add a heat sink

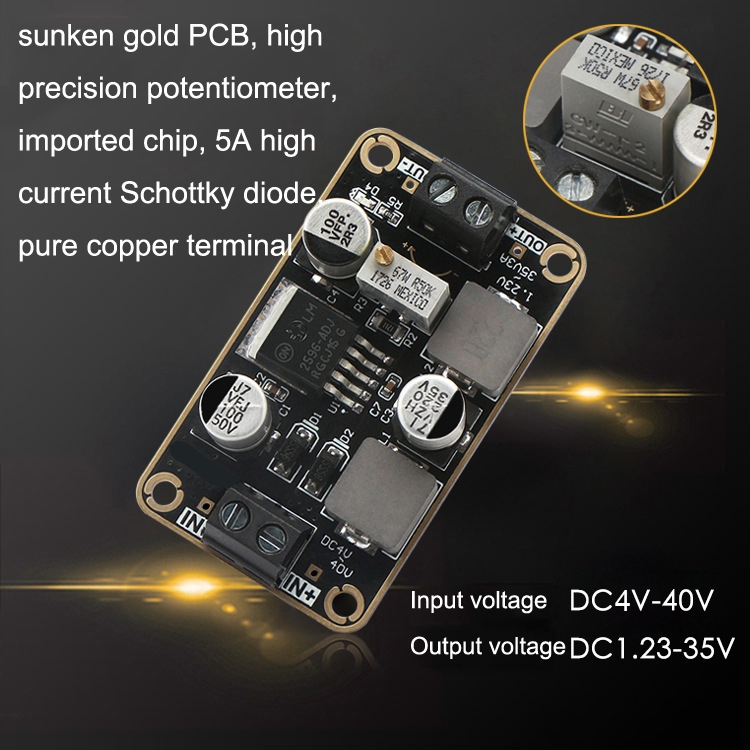

2. High Q high current shielded inductor, low ESR high capacity capacitor, sunken gold PCB
3. High precision potentiometer, imported chip, 5A high current Schottky diode, pure copper terminal
4. Input voltage: DC4-40V
5. Output voltage: DC1.23-35V
6. Output power: 15W
7. Breakdown voltage: over 45V input
8. Start-up voltage: 4V
9. Fault protection: reverse connection, undervoltage, overcurrent, overheat protection
10. Operating temperature: -40 to 85 degrees C
11. Output current: 3A
12. Output ripple: 4mV
13. No-load current: about 7mA

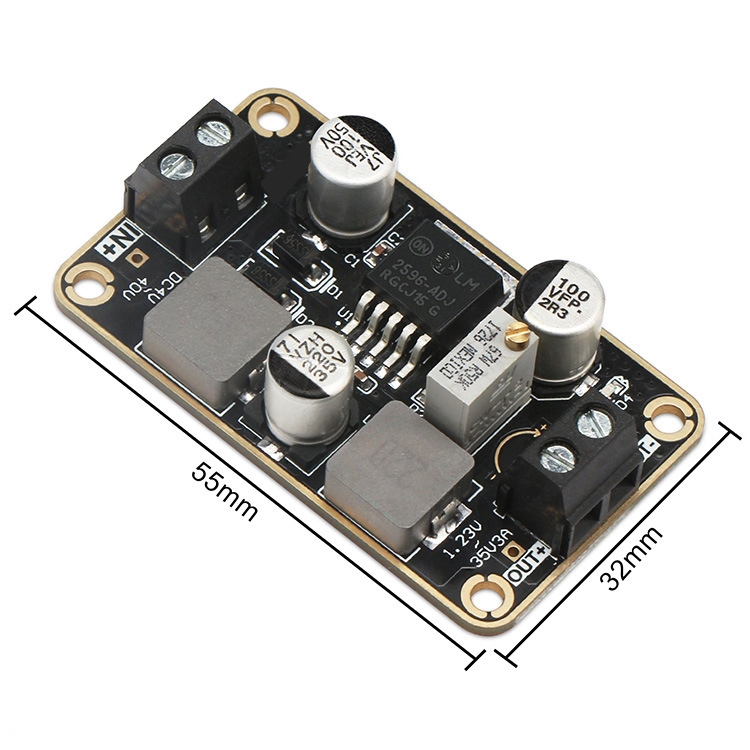

14. External dimensions: 55x32x13mm
15. Net weight: 20g
