Motorcycle LED Turn Signal Relay

1. Material: plastic
2. Compatible models: universal
3. The blinking frequency of the turn signal can be adjusted

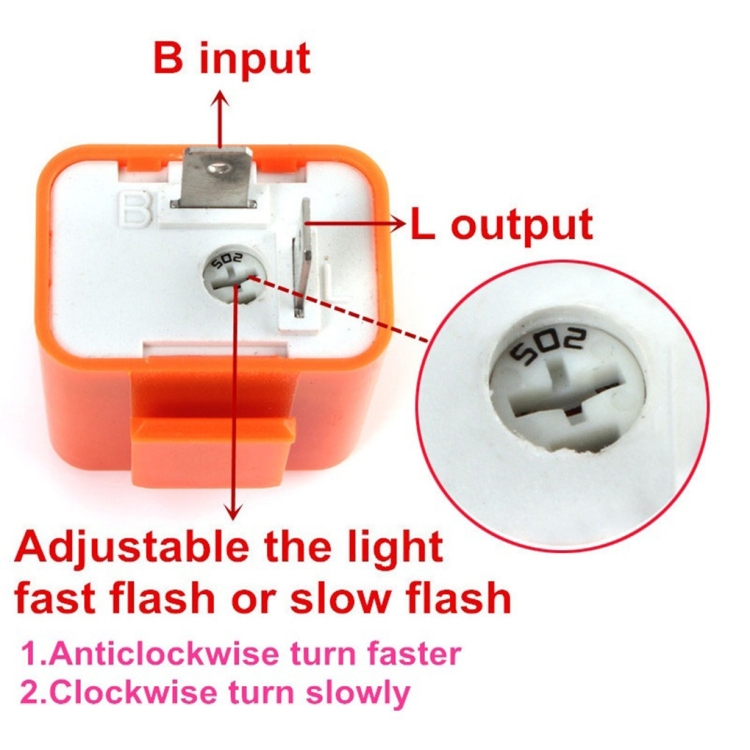

4. Use: 3rd gear frequency, turn counterclockwise to speed up, turn clockwise to slow down

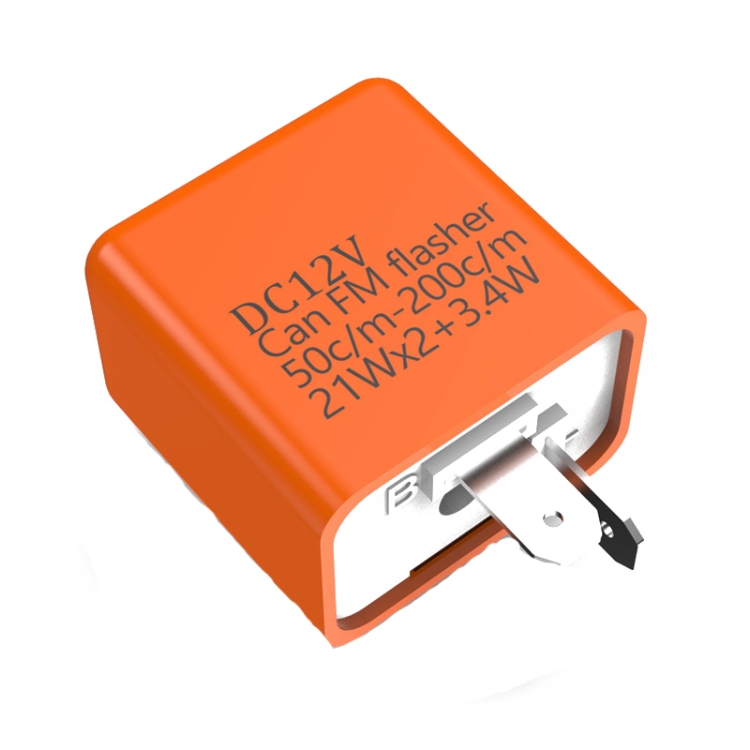

5. Voltage DC12V, flashing frequency 50C/m-200C/m, working power 21W x 2+3.4W
6. When installing, be sure to align the pins correctly. The function of the flash cannot be realized if the pins are in the wrong position.
7. If the four lights are on at the same time after changing the flasher, you need to unplug the turn indicator on the instrument panel.
8. Pin B is the input, pin L is the output, B is connected to the positive pole of the power supply, L is connected to the positive pole of the lamp, and the negative pole of the lamp is grounded
9. Adopt advanced SMD chip technology, with short circuit automatic protection, overload automatic protection, reverse connection automatic protection, which can make the bulb work more stably (without buzzer)
10. Unit weight: 0.015kg

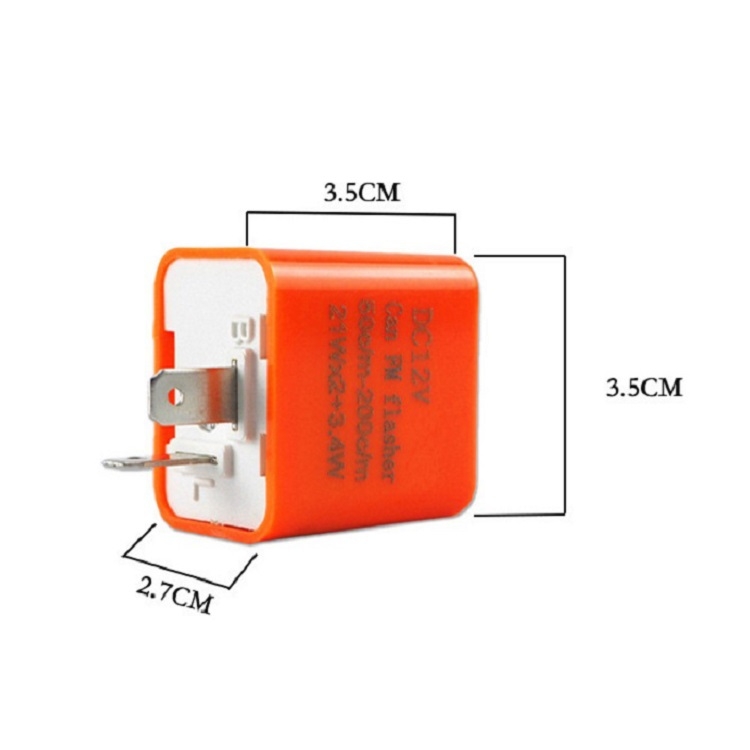

11. Dimensions: 3.5 x 3.5 x 2.7cm
