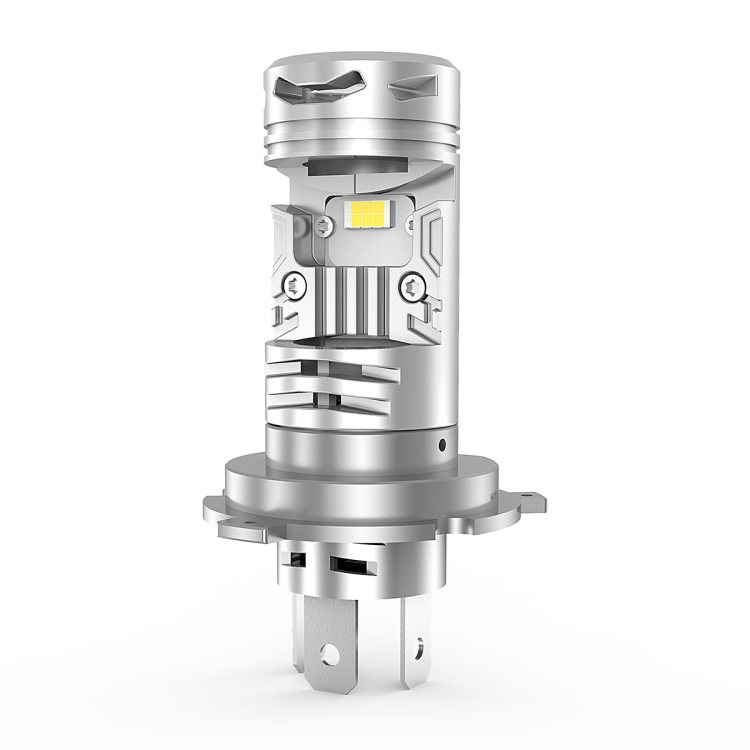

N8 H4 30W Car LED Mini Lens Headlight

1. With a unique lens design, the light pattern has a low beam tangent effect, the light pattern is concentrated, and astigmatism is rejected, making driving safer.

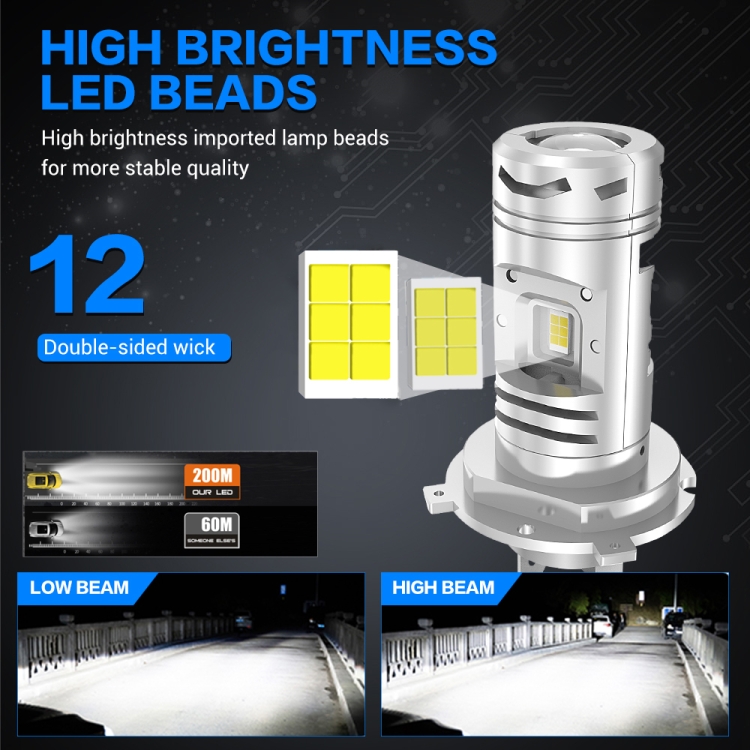

2. Using 6 large CSP chips, it provides up to 300% brightness and 6000K white light vision.

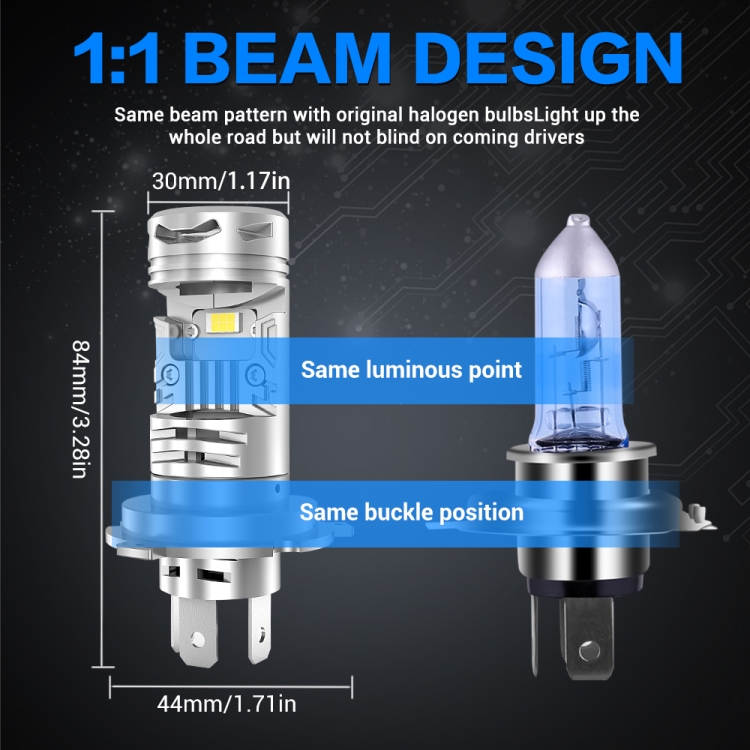

3. Plug and play, almost 1:1 mini design, with an external drive structure and ultra-thin and ultra-short heat sink, it is suitable for most car shells and original sockets, without changing the original car lampshade, and the installation is more convenient and beautiful.
4. The drive solution adopts an external constant current intelligent temperature control module (intelligently controls the current to maximize the LED effect, protect the car lights and improve driving safety).

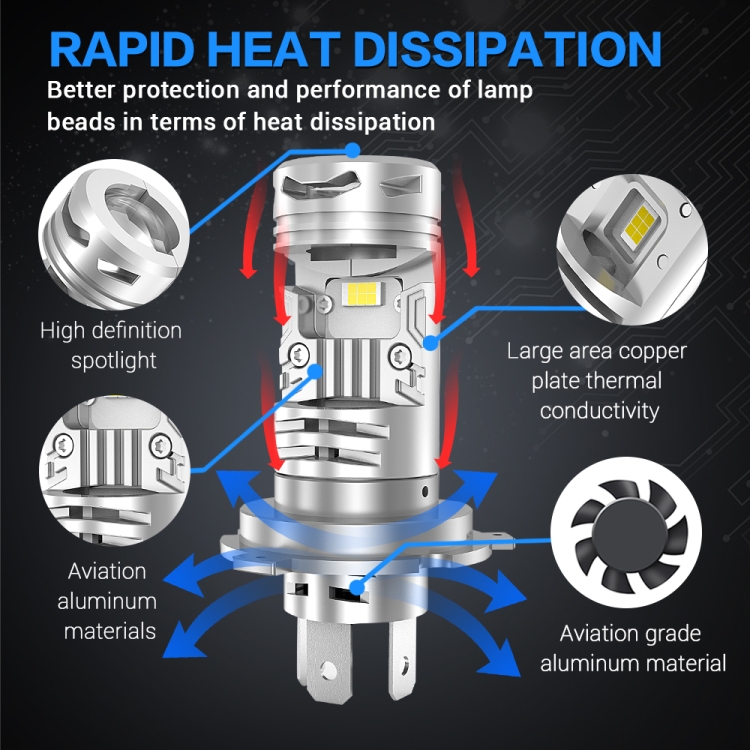

5. The lamp body is made of die-cast aluminum, and the lamp bead substrate is composed of high-quality copper sheets, which has better thermal conductivity. The substrate is closely combined with the aluminum lamp body and fully contacted, which can quickly and efficiently transfer the temperature of the lamp bead to the bottom fan, greatly improving the heat dissipation effect. The bottom uses a hydraulic fan, which has less noise and makes the product life up to 30,000 hours.
6. Parameters:
Lamp beads: 6 CSP-LED large chips
Color temperature: 6000K
Brightness: 4000LM
Power: 30W
Material: aviation aluminum alloy
Lifespan: more than 30000H
Voltage: wide voltage 10-32V
Working temperature: low temperature -40 degrees Celsius to high temperature 85 degrees Celsius
Heat dissipation principle: aviation aluminum double copper substrate heat dissipation; hydraulic fan heat dissipation

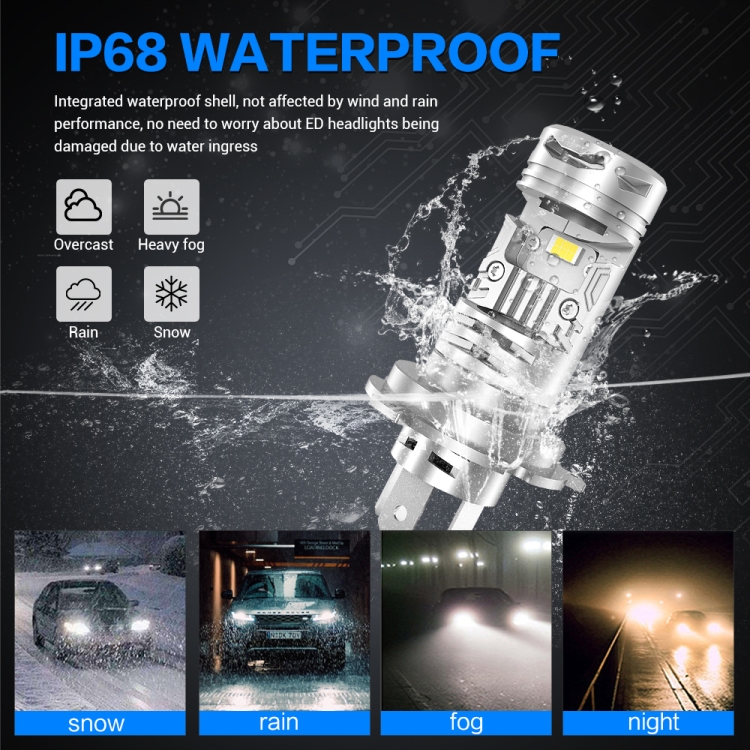

Waterproof grade: IP68
