NEJE E30130 5.5W 450nm Laser Engraver Module Kits

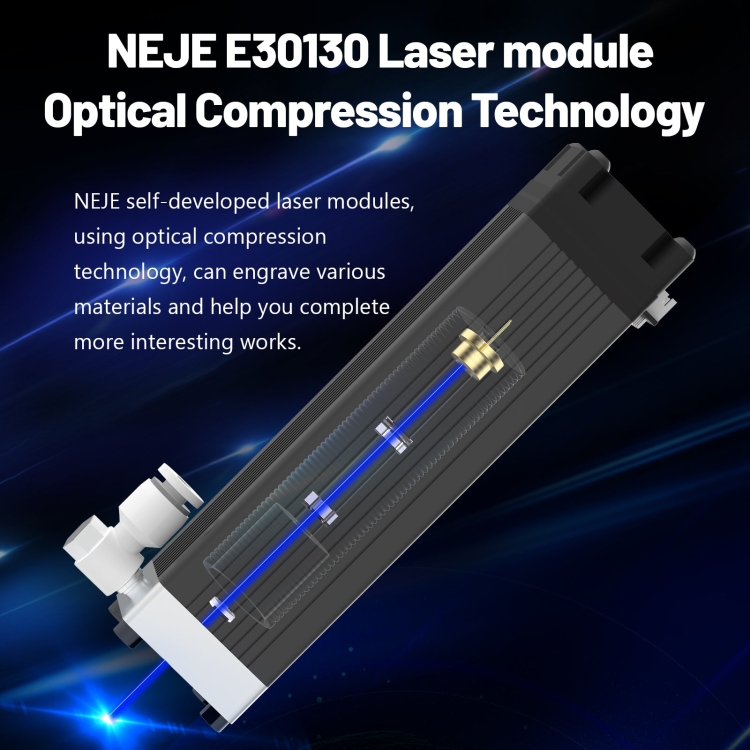

1. Cylindrical lens optical compression technology
2. Fixed focus
3. Thread enhanced heat dissipation process

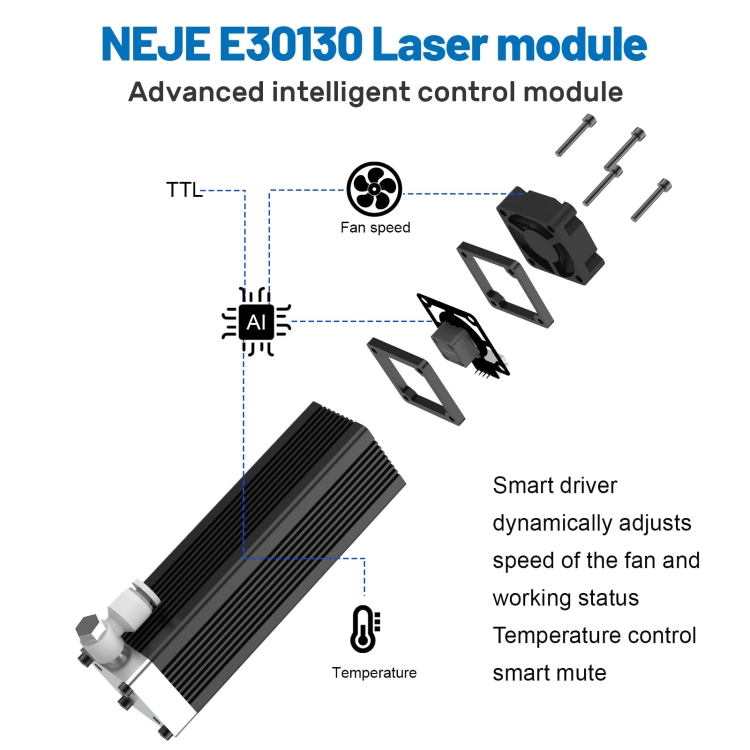

4. Intelligent drive, silent design

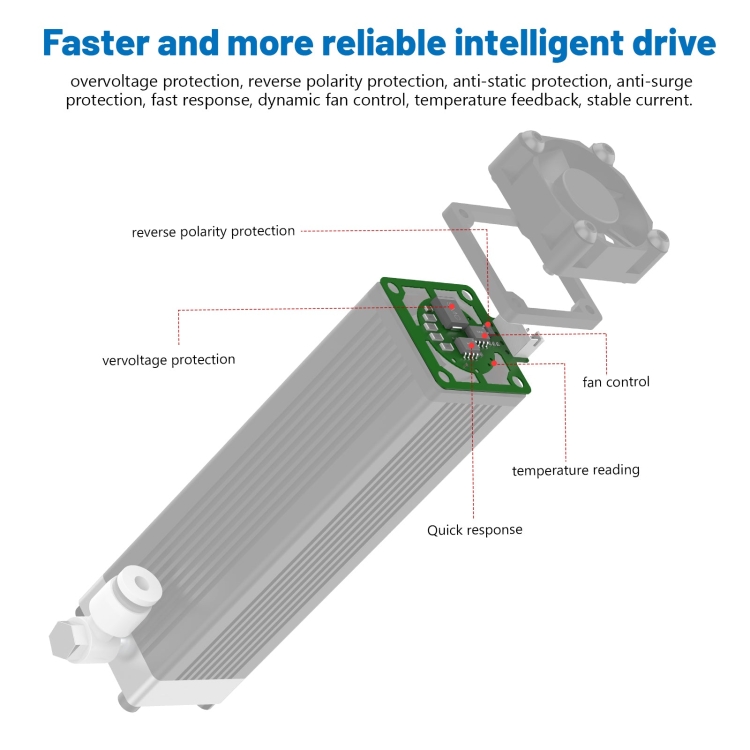

5. Anti-surge and anti-static design
6. Equipped with inner cavity air-assisted design, supporting 1.5MPa clean air pressure
7. Double ball high-speed cooling fan design, super durable life

Specification
1. Focus: 0.05×0.05mm

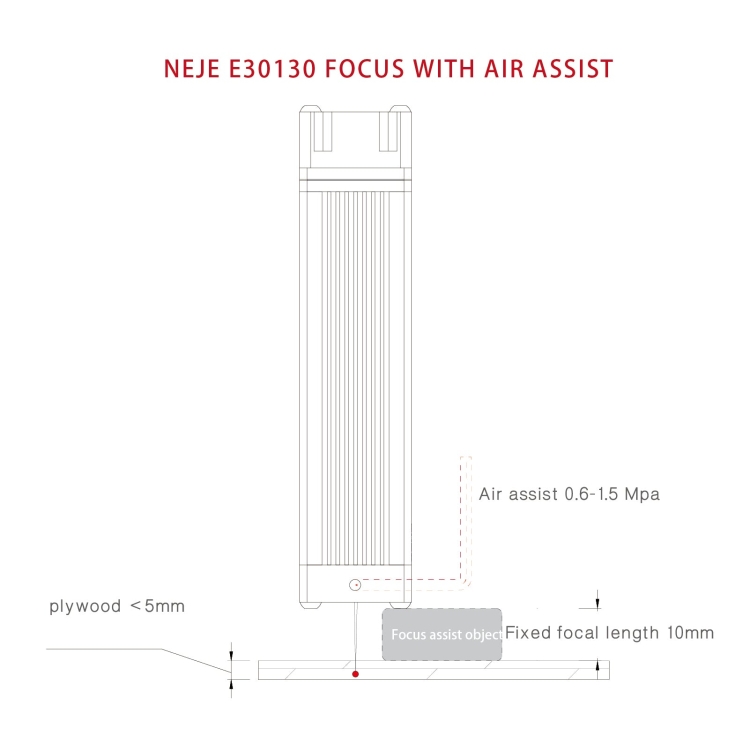

2. Focus method: fixed ( about 10mm from the bottom )
3. Optical power: CW 5.5W+, Pulse 7.5W
4. Wavelength: 450nm
5. Weight: 210g
6. Module Size: 30x30x130 mm
7. Input: DC 12V 3A
8. Interface: 4Pin PH2.0
9. Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 3 Plus, NEJE 2s Max, NEJE 2s Plus, etc…
10. Power Control: PWM Power Modulation
11. Temperature control: 45 degrees Celsius

Package Included
1 x Laser Engraving Module
1 x Sliding fixture
1 x 4 Pin Cable(30cm)
1 x 2pin yellow and black signal cable + 3pin input cable
1 x NEJE Interface adapter board
1 x 2.5mm L-shaped wrench
1 x 5mm L-shaped wrench
1 x Air Assist
