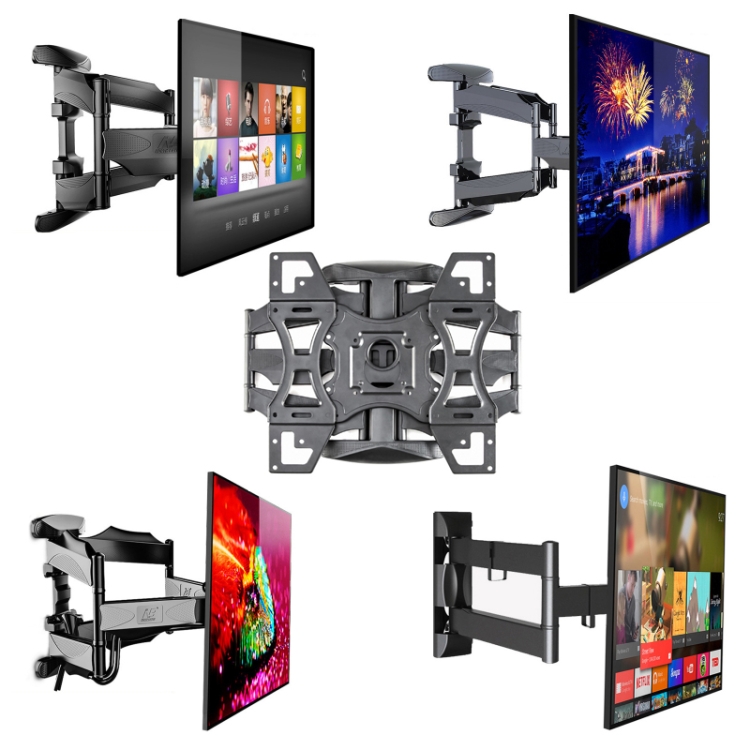

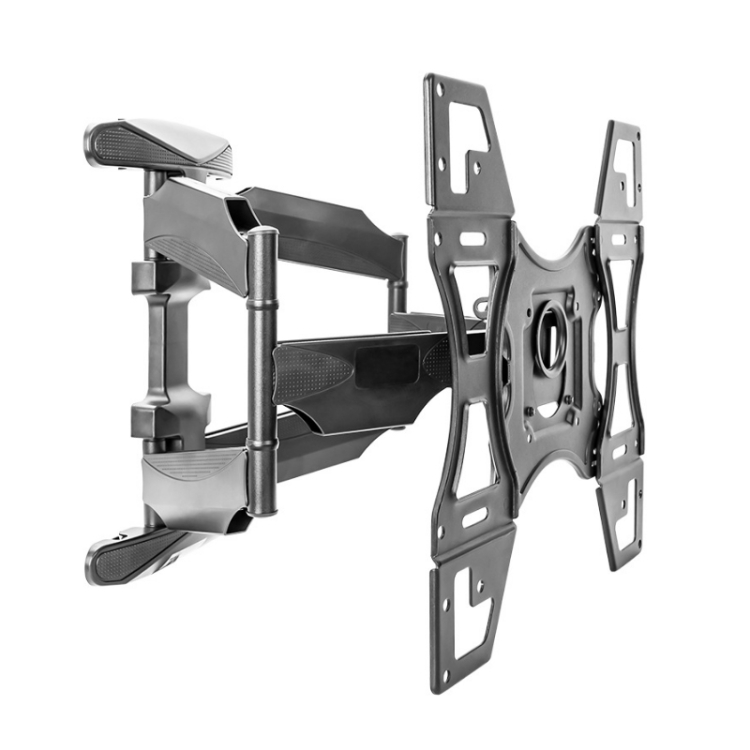

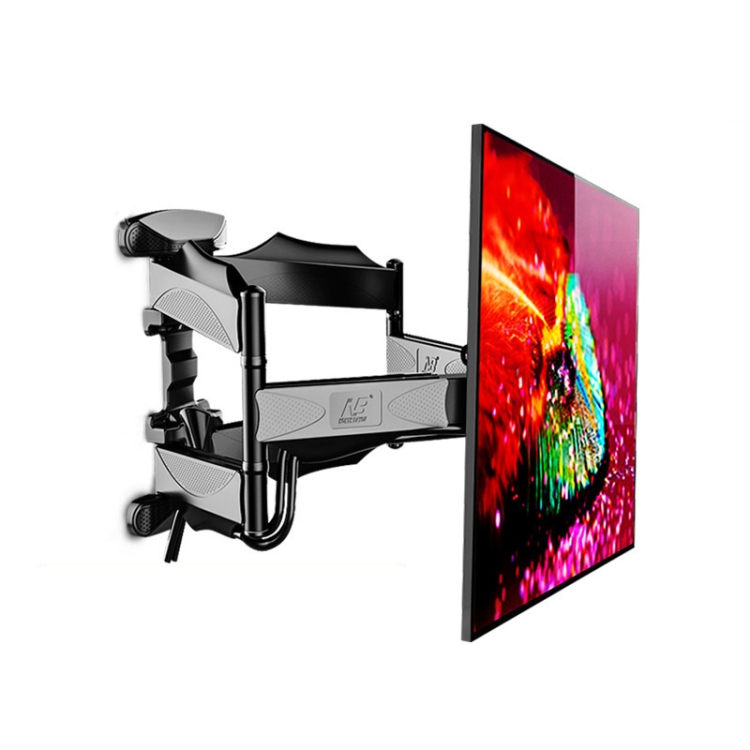

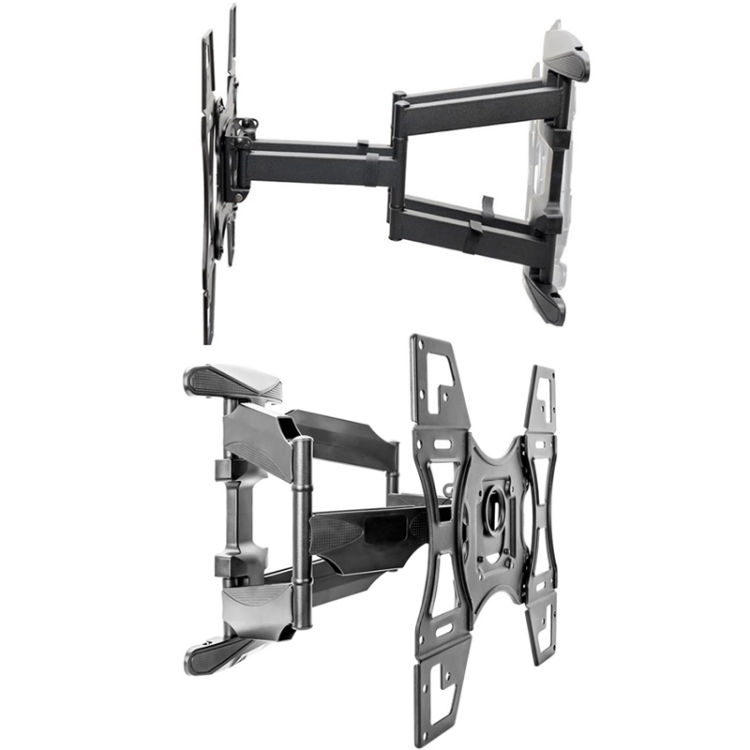

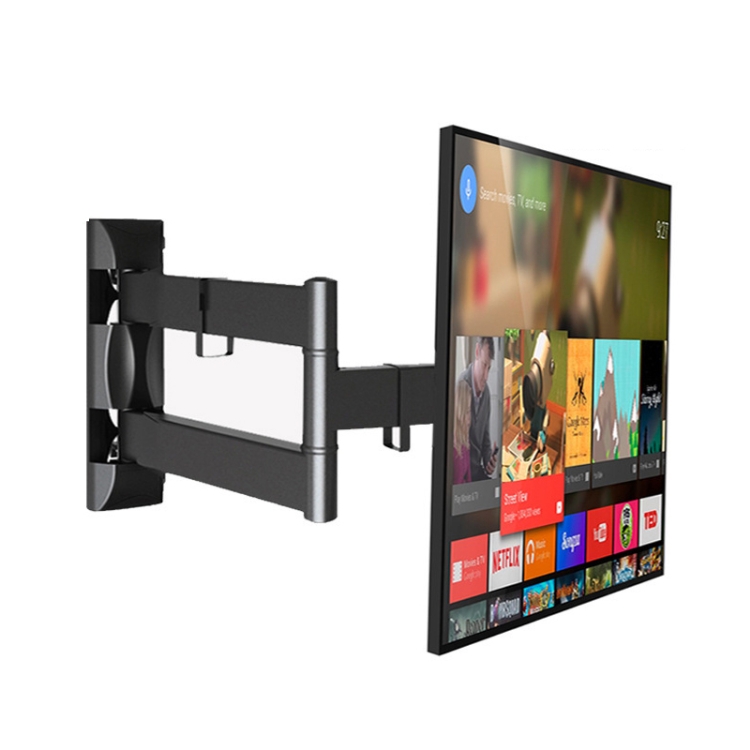

NORTH BAYOU Telescopic Swivel TV Monitor Wall Mount Bracket

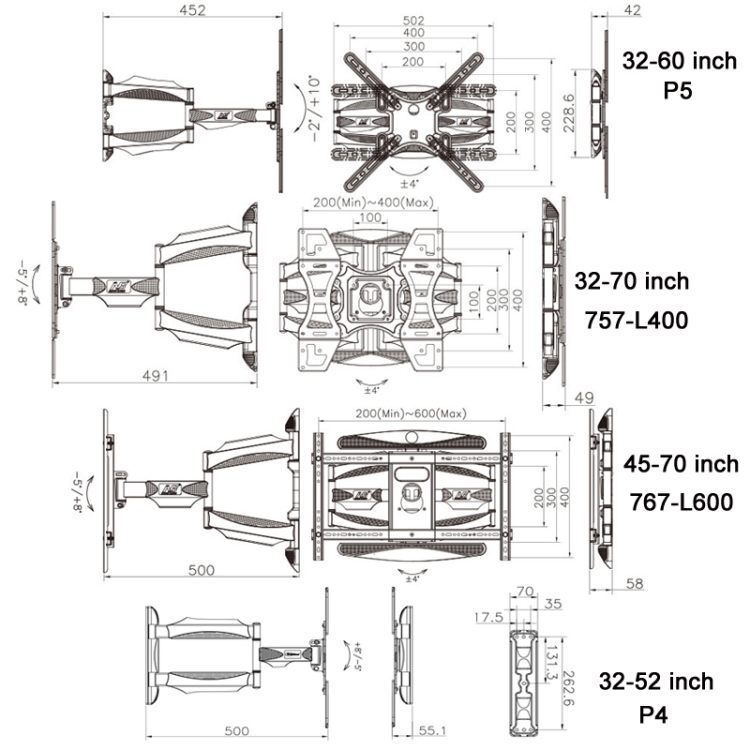

32-60 inches:
1. Material: SPCC steel plate
2. Up and down tilt angle: plus 10 degrees; minus 2 degrees
3. Left and right rotation angle: 50 degrees/80 degrees
4. Weight range: 80lbs (36.4kg)
5. Mounting holes: 100x100mm; 200x100mm; 200x200mm; 300x300mm; 400x200mm; 400x400mm (horizontal x vertical)

32-70 inches:
1. Material: SPCC steel plate
2. Up and down tilt angle: plus 8 degrees; minus 5 degrees
3. Left and right rotation angle: 50 degrees/80 degrees
4. Weight range: 100lbs (45.5kg)
5. Mounting holes: 100x100mm; 200x100mm; 200x200mm; 300x300mm; 400x200mm; 400x300mm; 400x400mm (horizontal x vertical)

45-70 inches:
1. Material: SPCC steel plate
2. Up and down tilt angle: plus 8 degrees; minus 5 degrees
3. Left and right rotation angle: 50 degrees/70 degrees
4. Weight range: 100lbs (45.5kg)
5. Mounting holes: 200x200mm; 300x200mm; 300x300mm; 400x200mm; 400x300mm; 400x400mm; 600x400mm (horizontal x vertical)

32-52 inches:
1. Material: SPCC steel plate
2. Up and down tilt angle: plus 8 degrees; minus 5 degrees
3. Left and right rotation angle: 50 degrees/90 degrees
4. Weight range: 60lbs (27.3kg)
5. Mounting holes: 100x100mm; 200x100mm; 200x200mm; 300x300mm; 400x200mm; 400x300mm; 400x400mm (horizontal x vertical)

Describe:

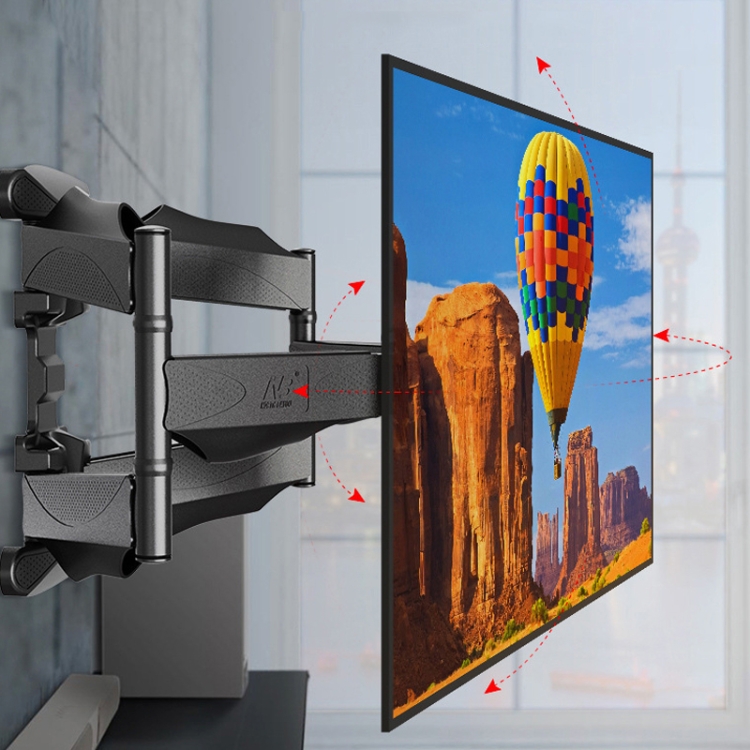

1. Flexible adjustment of front and rear stretching, easy to remove and plug U disk, video cable and TV cleaning

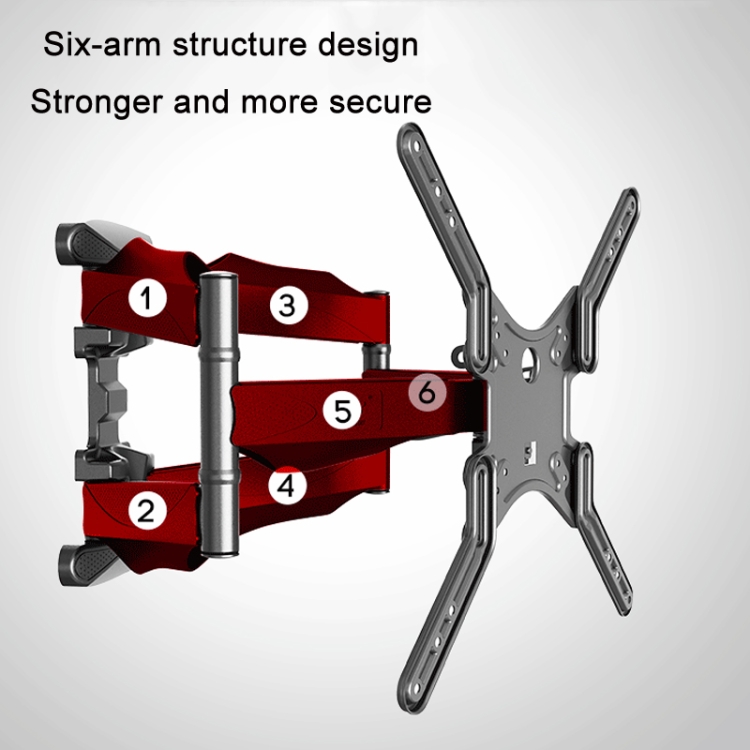

2. Six-arm structure design, stable and safer

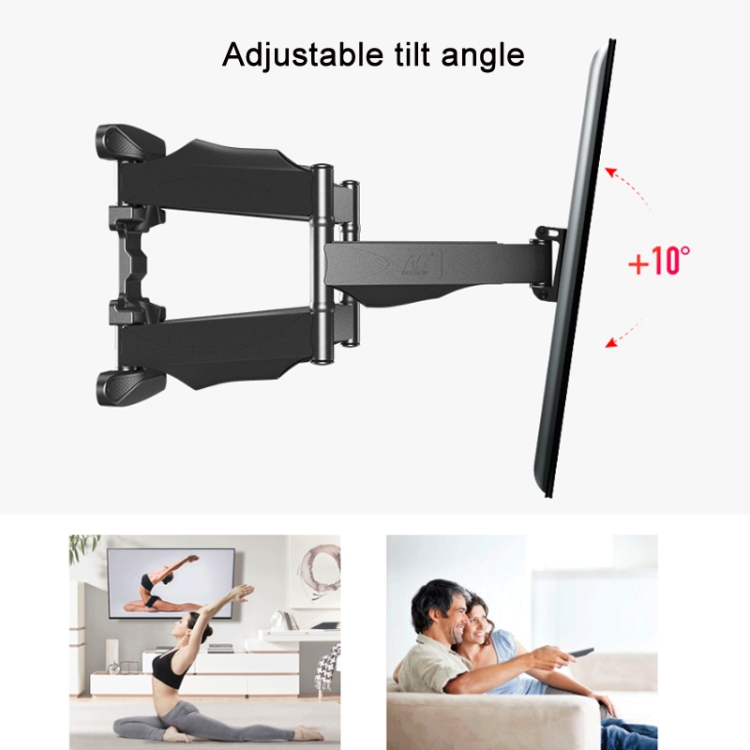

3. The tilt angle can be adjusted at will, and it is comfortable to use
4. With a humanized wire cover design, it can effectively block the installation marks on the wall
