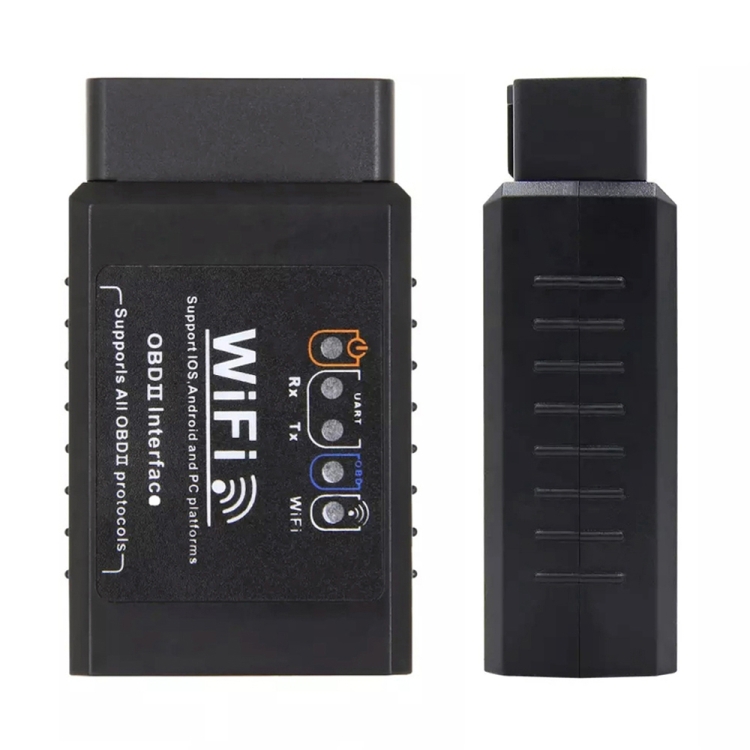

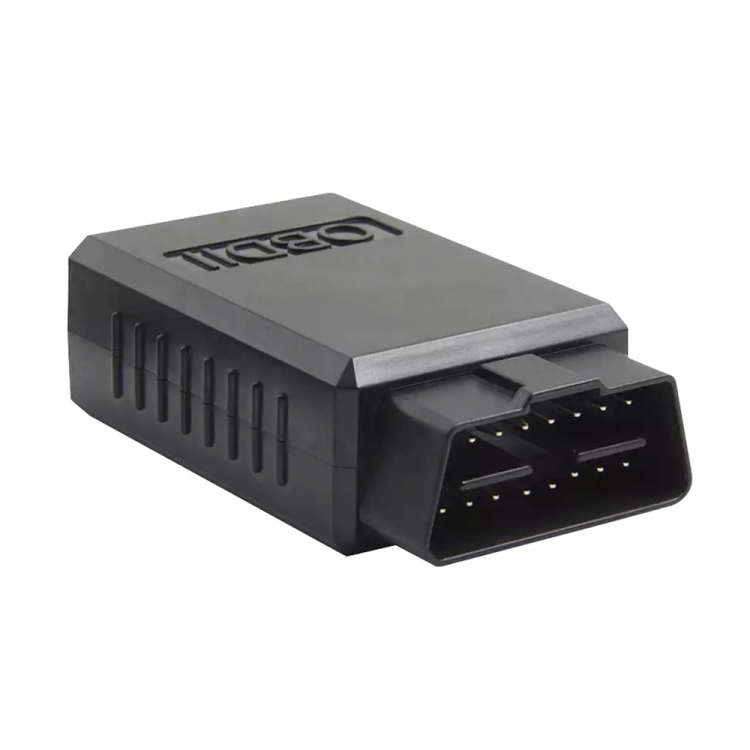

OBD2 WIFI Mini Car Detector Car Fault Diagnostic Tool

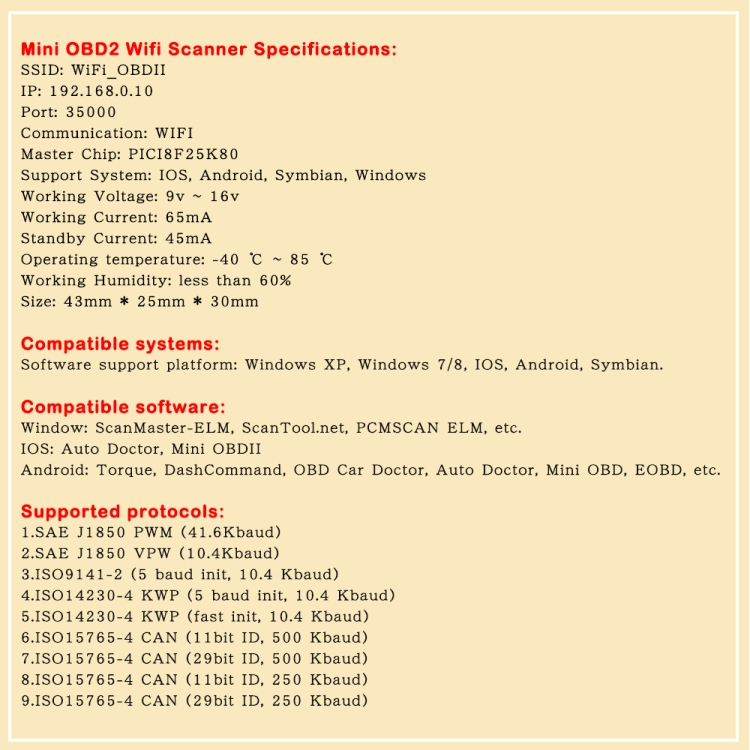

1. Working Voltage: 9V-16V
2. Working Current: 65mA
3. Standby Current: 45mA
4. Operating temperature: -40 degrees C – 85 degrees C
5. Working Humidity: less than 60%
6. Compatible systems:
Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian
7. Compatible software:
– Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
– IOS: Auto Doctor, Mini OBDII

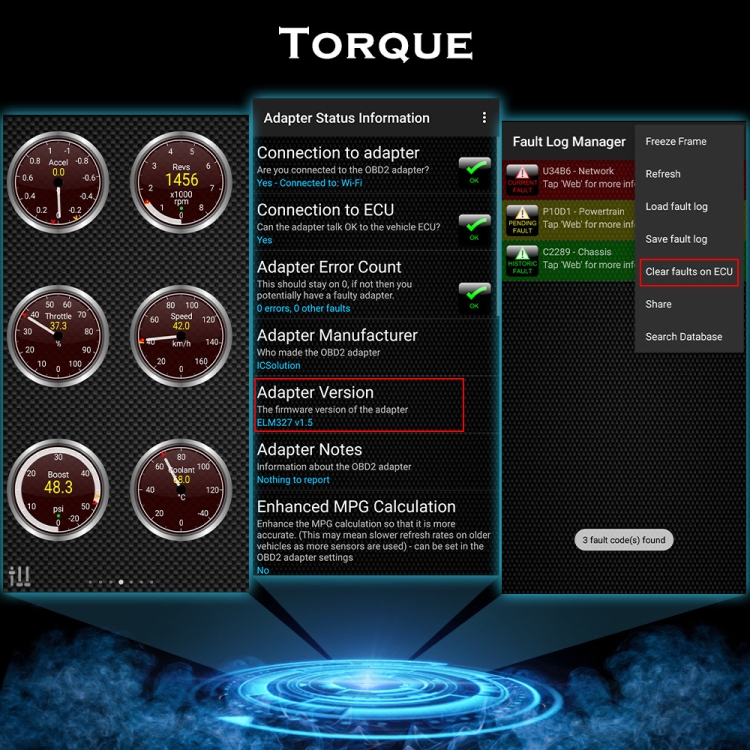

– Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc
– Symbian: OBDScope
8. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
9. Clear trouble codes and turn off the MIL (Check Engine light)
10. Display current sensor data, including:
– Engine RPM
– Calculated Load Value
– Coolant Temperature
– Fuel System Status
– Vehicle Speed
– Short Term Fuel Trim
– Long Term Fuel Trim
– Intake Manifold Pressure
– Timing Advance
– Intake Air Temperature
– Air Flow Rate
– Absolute Throttle Position
– Oxygen sensor voltages / associated short term fuel trims
– Fuel System status
– Fuel Pressure
– And the others
