PA-476CH 2 Levels Adjustable PIR Motion Sensor for Home Security
Roll over image to zoom in
Click to open expanded view

PA-476CH 2 Levels Adjustable PIR Motion Sensor for Home Security

    AED 130.42 AED 130.42

    In stock

    Add to wishlist
    SKU: S-MDC-0375 Category: Tags: , ,

    AED 130.42 AED 130.42

    Add to wishlist

    Standard Delivery Timeframe: 3-7 Working Days

    Description

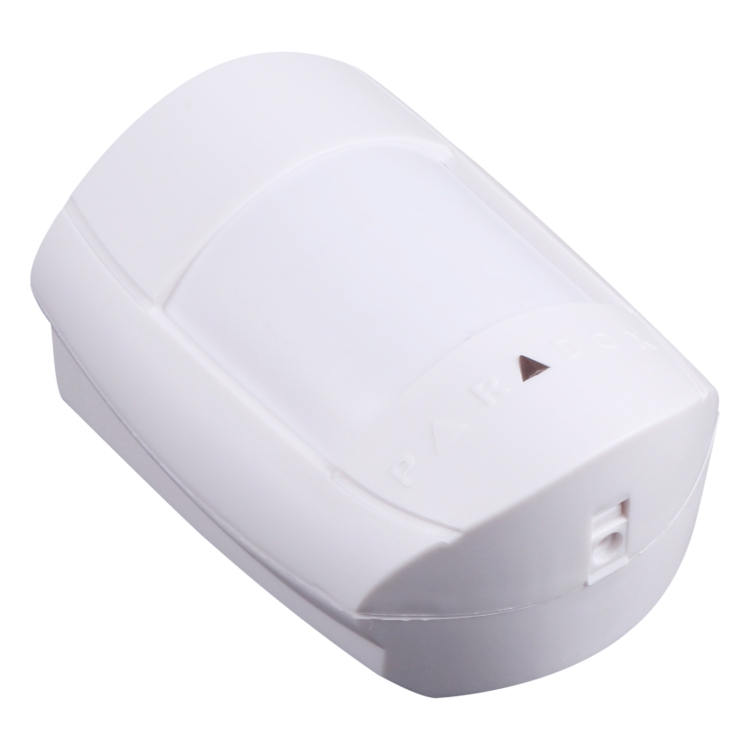

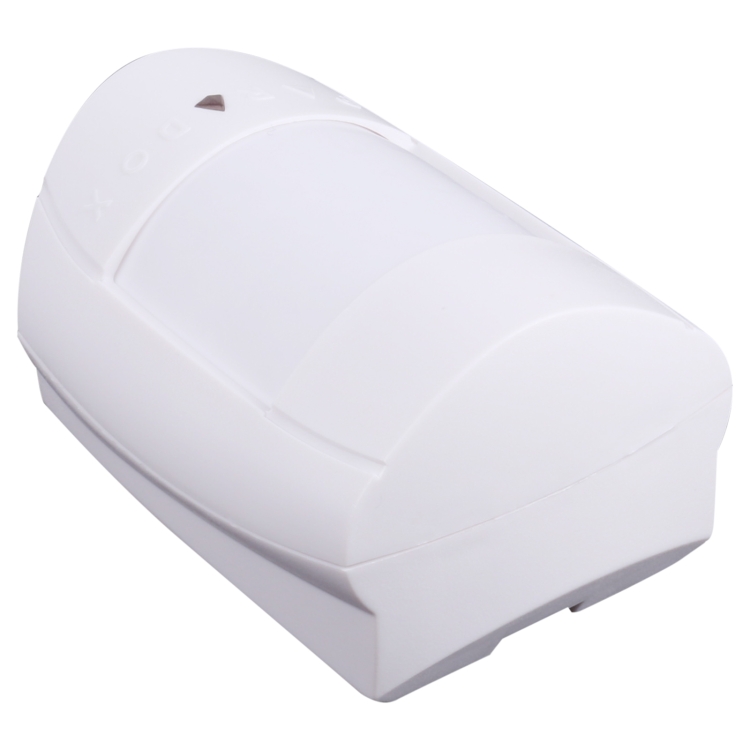

    High performance passive infrared motion detector, compact size and streamlined design is ideal for the security application. Auto pulse signal processing, 2 levels adjustable. Auto temperature compensation.

    Specifications:
    1. Auto pulse signal processing, 2 levels adjustable
    2. Temperature compensation
    3. 2nd generation Fresnel lens
    4. Optional other lenses
    5. High density SMD design
    6. Additional Connector for EOL resistor
    7. Fire resistant case
    8. Sensor: Low noise, high sensitivity, dual element, PIR Sensor
    9. Pulse Count (Sensitivity): Two levels auto pulse signal processing, 1~3 pulses or 2~6 pulse selectable
    10. Temperature Compensation: Auto
    11. Startup Time: 60 seconds after power up
    12. Detection Speed: 0.2~7m/sec
    13. Lens: Second generation Fresnel lens
    14. White Light Immunity: Yes
    15. Coverage: 12m x 110
    16. Zones: 9+5+5+3=22
    17. Installation Height: 1.1~3.1m adjustable
    18. Alarm Indication: Green LED constant light 3 seconds (can be disabled)
    19. Alarm Output: N.C., rating DC 28V, 0.15A
    20. Anti-Tamper Switch: N.C., opens when cover removed, rating 0.15A, 28VDC
    21. Power Input: DC 9~16V, 18mA
    22. Operating Temperature: -10C~50C
    23. Operating Humidity: 95%
    24. Size: 100 x 70 x 45mm

    Specifications

    Additional information

    Weight0.114 kg
    Dimensions10.0 × 7.0 × 6.0 cm
