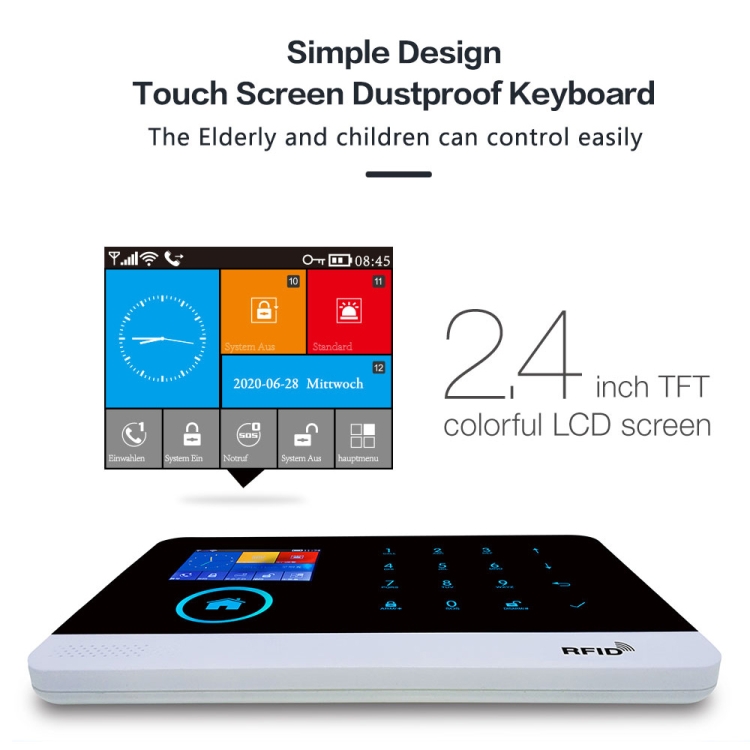

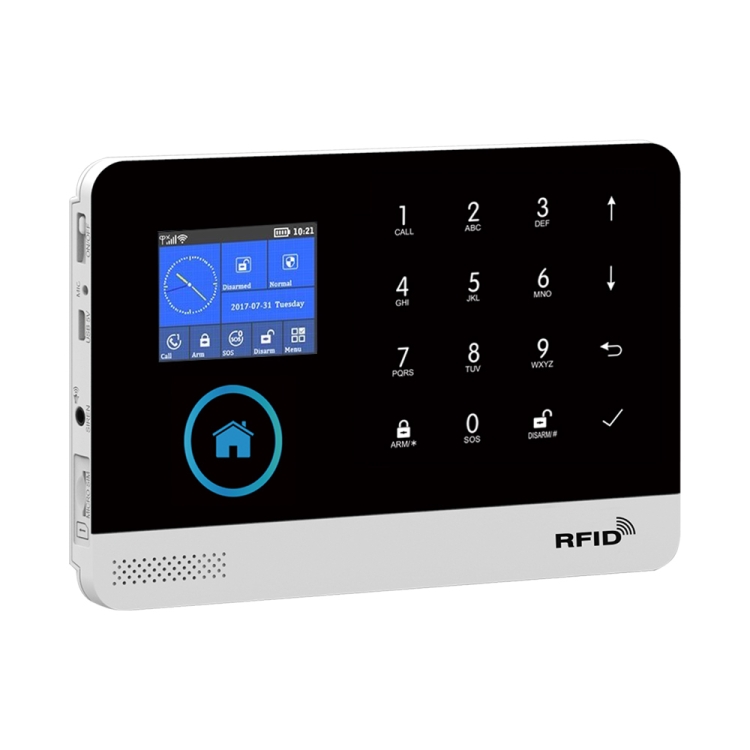

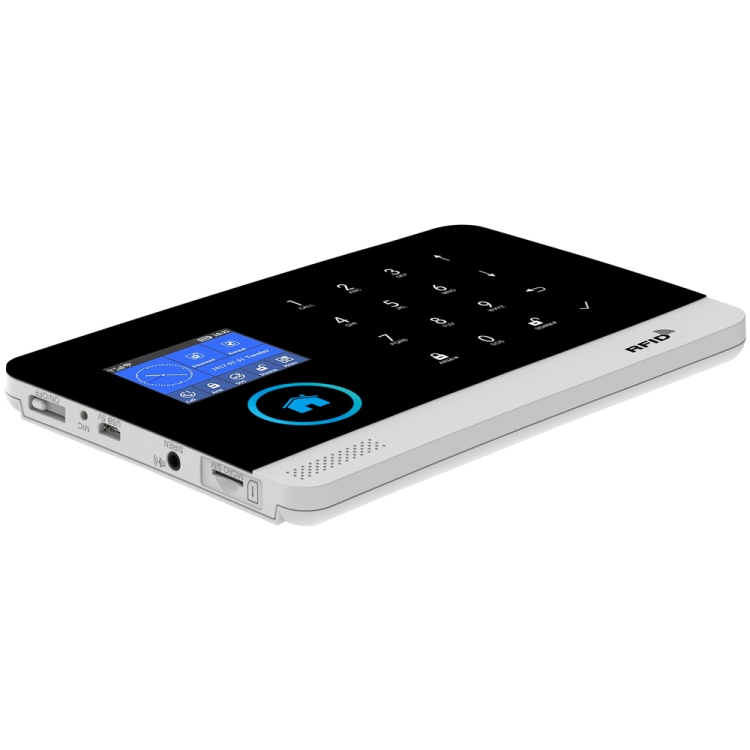

PG-103-GSM WiFi + GSM Touch Screen Intelligent Alarm System

1. WiFi+GSM alarm system, supports multiple alarm notification channels, like APP push/ SMS/ voice phone call, etc.
2. Support APP remote arm/disarm, parameter setting and accessory management.
3. Based on uCOS – III operation system with multi-task function
4. Built-in powerful CPU master based on 32-bit Cortex-M3 core.
5. Reserved remote GPRS TCP/UDP protocol channel, compatible with multiple alarm center network protocol to facilitate network alarm.
6. Support the AC power failure, backup power shortage, tamper alarm and other extended alarm.
7. Support phone/SMS/APP remote arm/disarm/recording/take picture/monitoring.
8. Support main brands cameras linking alarm, remote recording, monitoring,checking.

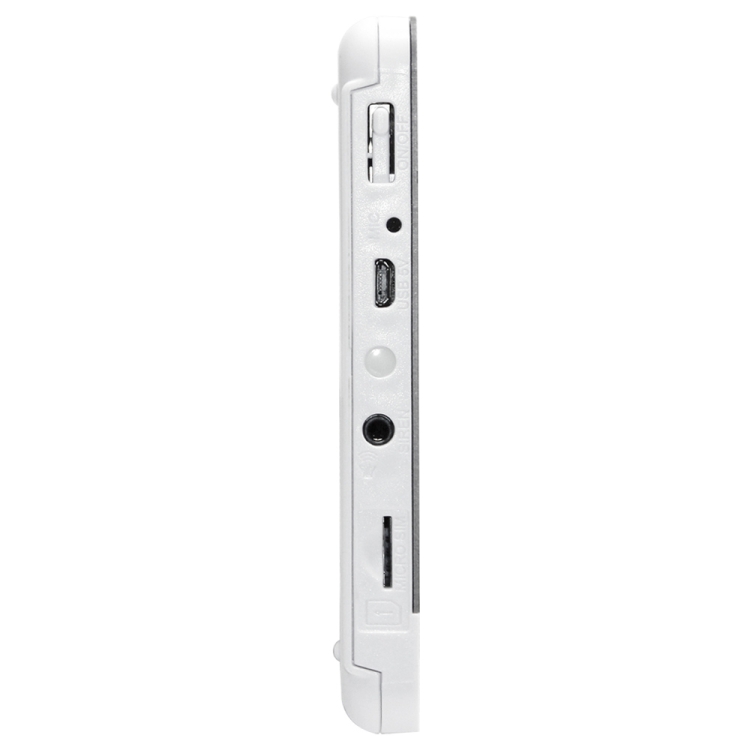

9. Power input : DC 5V (micro USB standard interface power supply)
10. Working current: <120mA
11. Alarm current: <500mA
12. Wireless frequency: 433MHZ
13. Wireless coding: EV 1527
14. GSM bands: 850/900/1800/1900MHZ
15. Wi-Fi bands: IEEE802.11b/g/n RF standard
16. Standby battery: 3.7V/1Ah lithium-ion
17. Temperature range: -10~ 55 Celsius Degrees
18. Humidity range: < 80%RH (No freezing)
19. Product Size: 18.5×12.5×1.5cm
