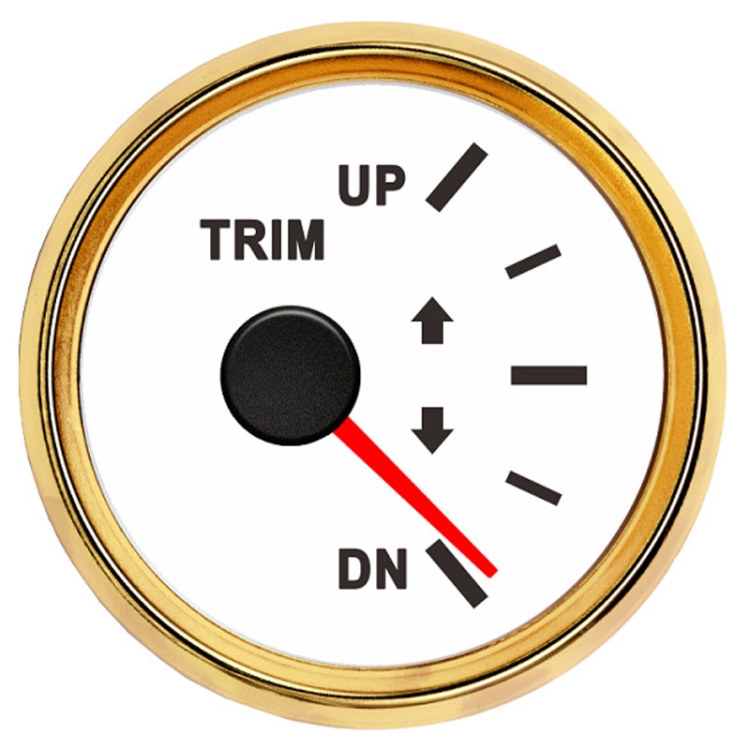

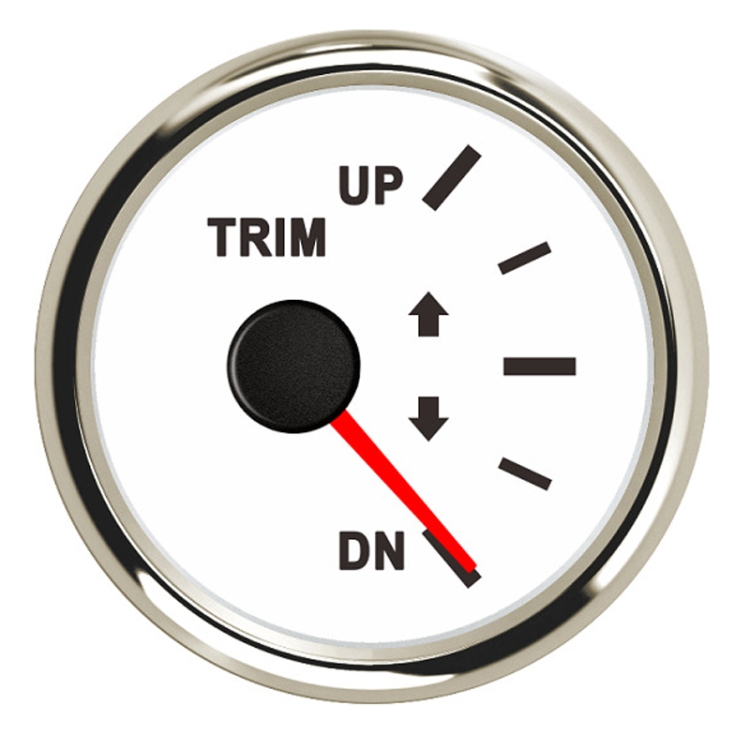

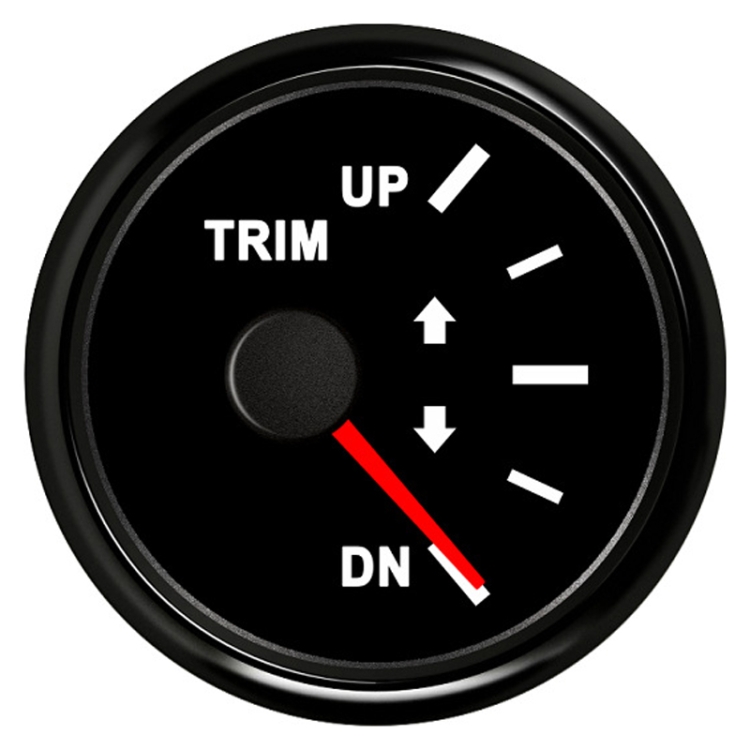

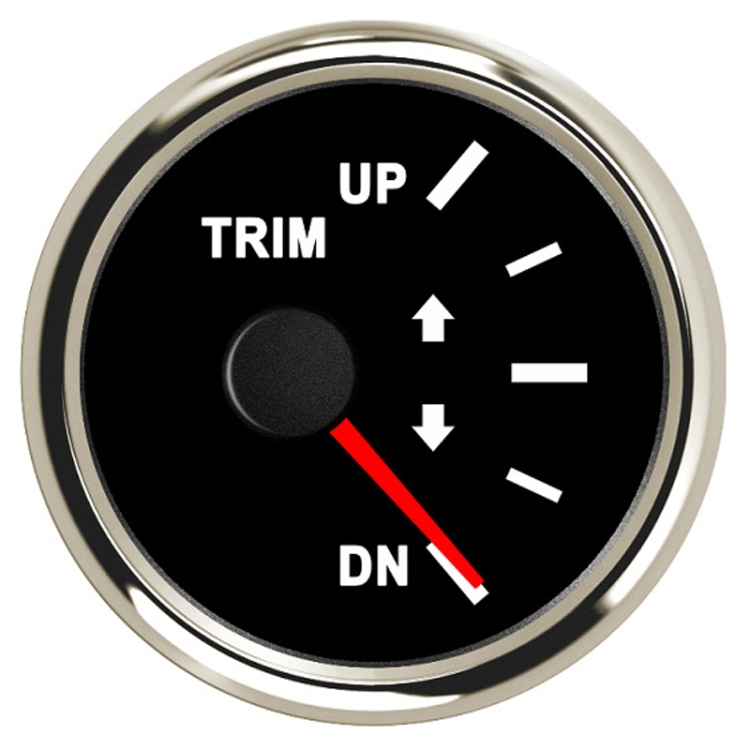

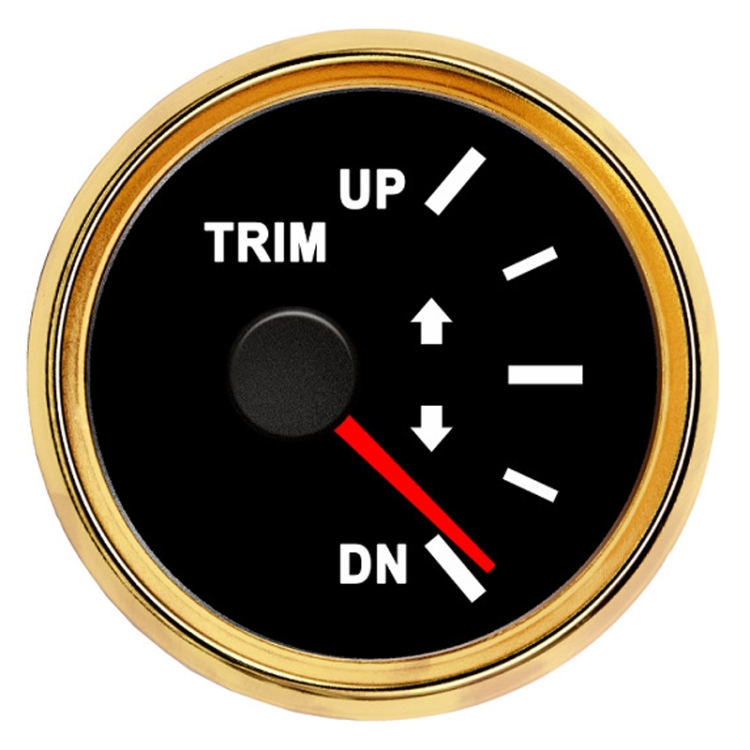

PMM2 DN52mm 12/24V 0-190Ohm Marine Balance Table Lift Table
AED 193.88
Estimated Delivery: 5 Feb – 11 Feb (3–7 working days)
Description
1. Front cover material: SUS316, anti-fog curved glass
2. Connection method: plug-in connection
3. Indication range: UP-DOWN
4. Operating voltage: 9-32V
5. Operating current: 60mA or less
6. Input signal: 0-190 ohms (European standard)
7. Protection level: IP67, can work normally in the position of 1m underwater

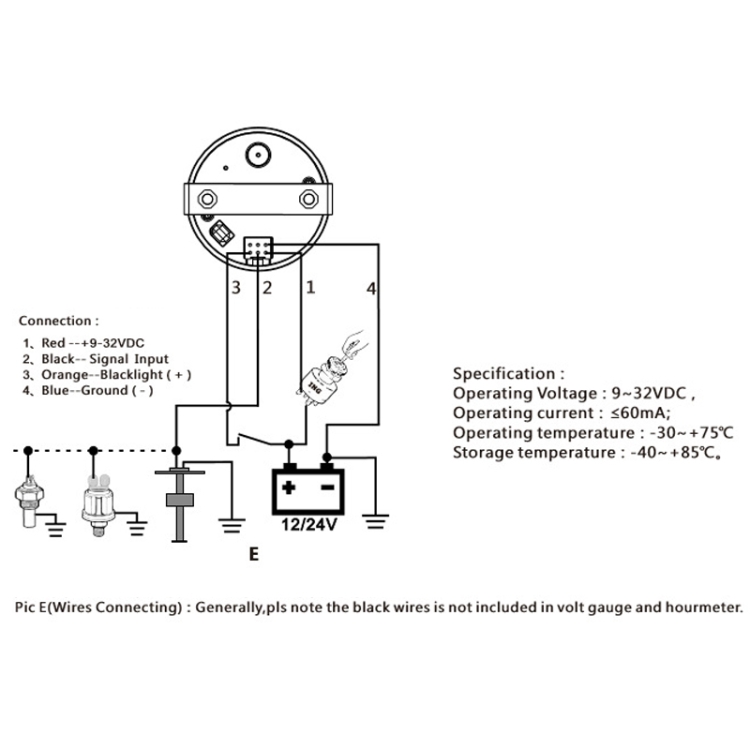

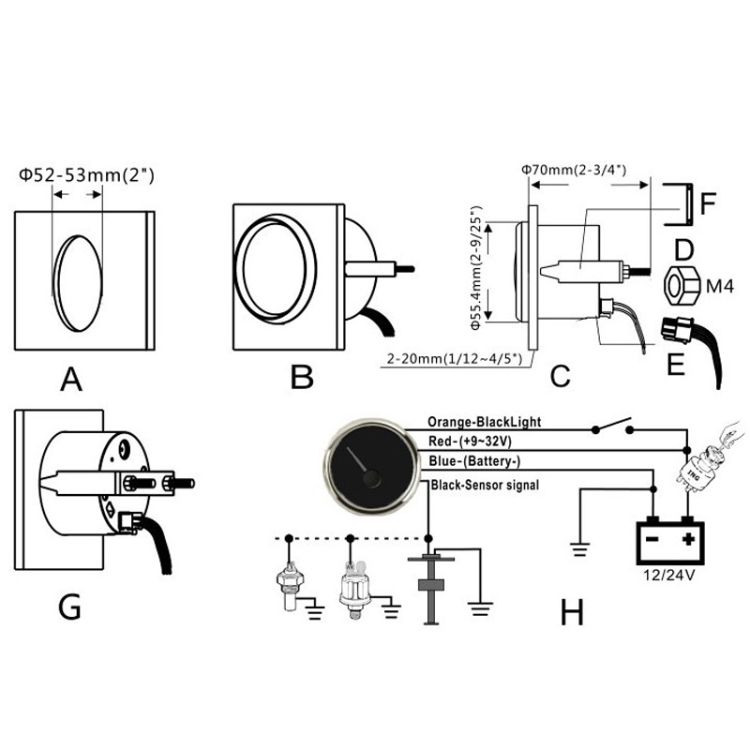

8. Wiring: red wire to the positive power supply, blue wire to the negative power supply, black signal wire to the sensor, orange wire backlight wire to the positive power supply
9. Features: exquisite and compact, durable, waterproof and dustproof, easy to install

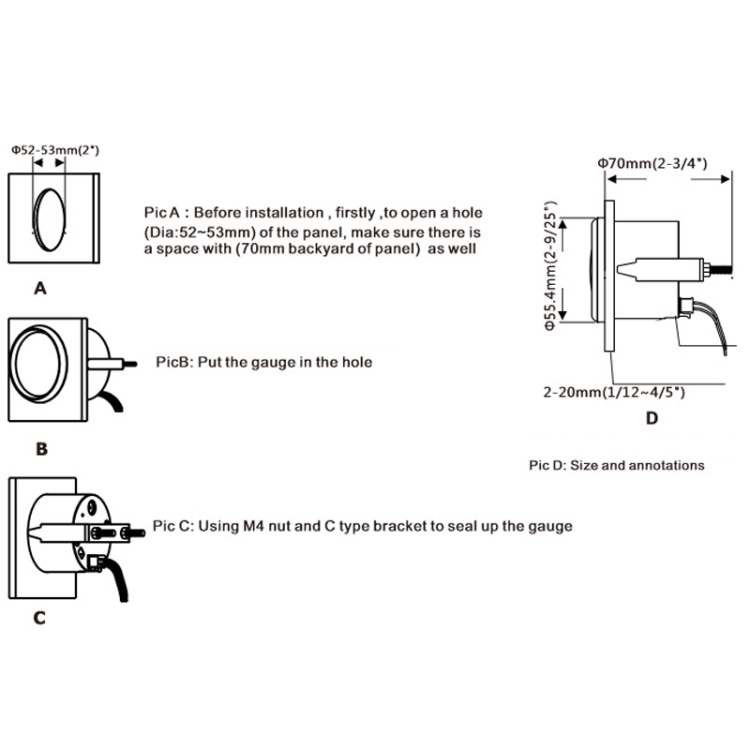

10. Installation size: about 52mm
Specifications
Additional information
| Weight | 0.204 kg |
|---|---|
| Dimensions | 10.0 × 8.0 × 8.0 cm |
| è§„æ ¼ | BN, BS, WS, WG, BG |

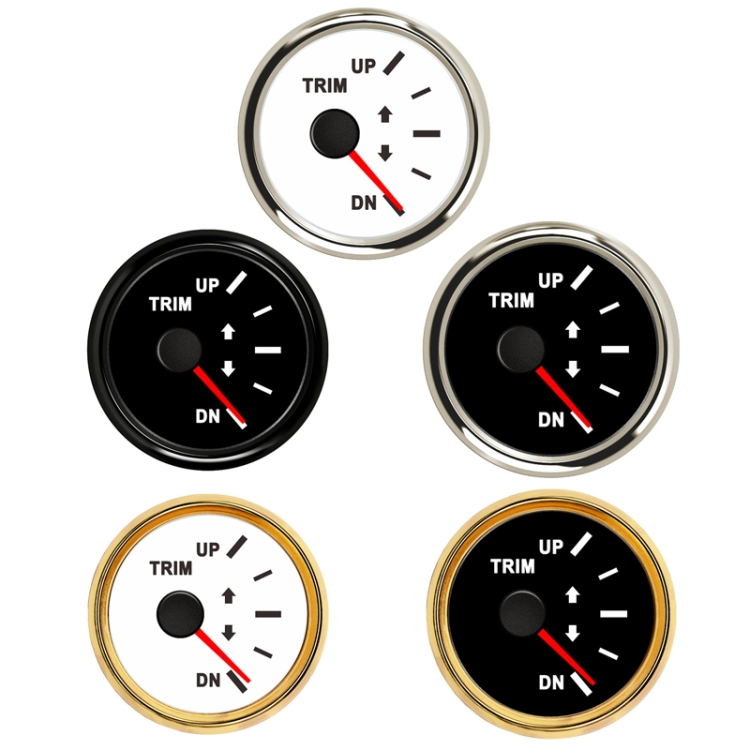

| Option | PMW2 BN, PMW2 WS, PMW2 BS, PMW2 WG, PMW2 BG, PMM2 BN, PMM2 BS, PMM2 WS, PMM2 WG, PMM2 BG |
