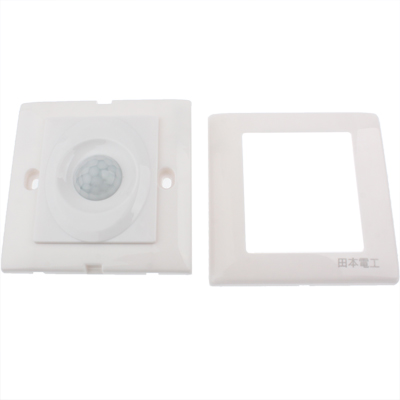

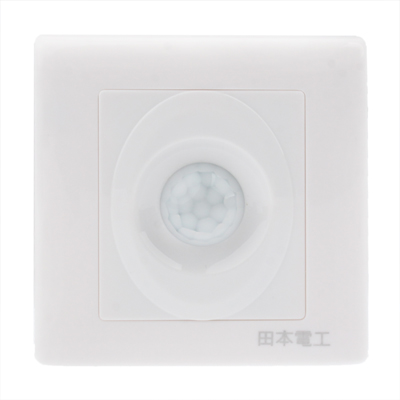

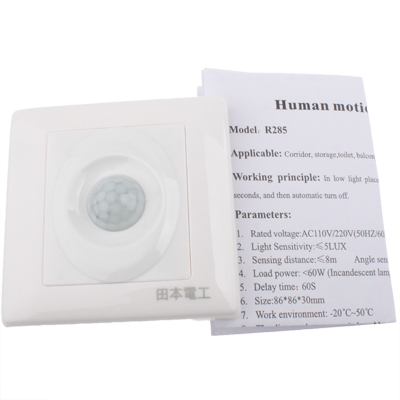

R285 Two-Wire System Wall Human Motion Sensor Switch (AC110V / 220V)

1) Rated voltage: AC110V / 220V (50Hz / 60Hz)

2) Light Sensitivity: <=5LUX

3) Sensing distance: <=8m, sensor angle: 100 degree

4) Load power: <60W

5) Delay time: 60S

6) Size: 86x86x30mm

7) Work environment: -20 – 50 Celsius degree

8) The distance between switch and lamps: 0.5M

9) Installation height: 1 – 2M

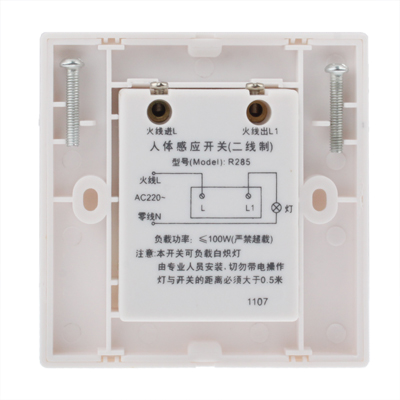

10) This product adopts the international standard 2 wire connection mode

11) The distance between light and switch should more than 0.5 meter

12) In low light places and anybody move, switch turn on, about 60 seconds, and then automatic turn off
