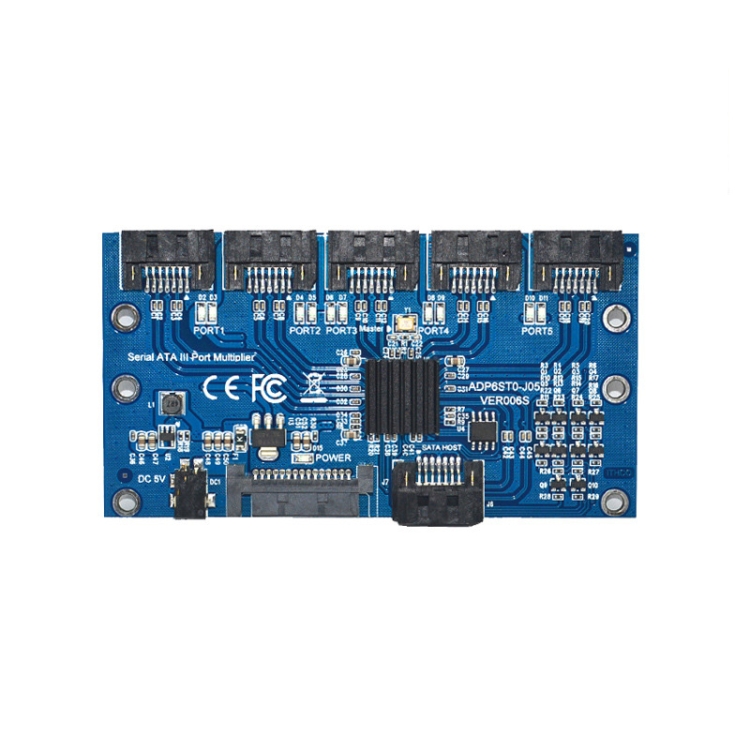

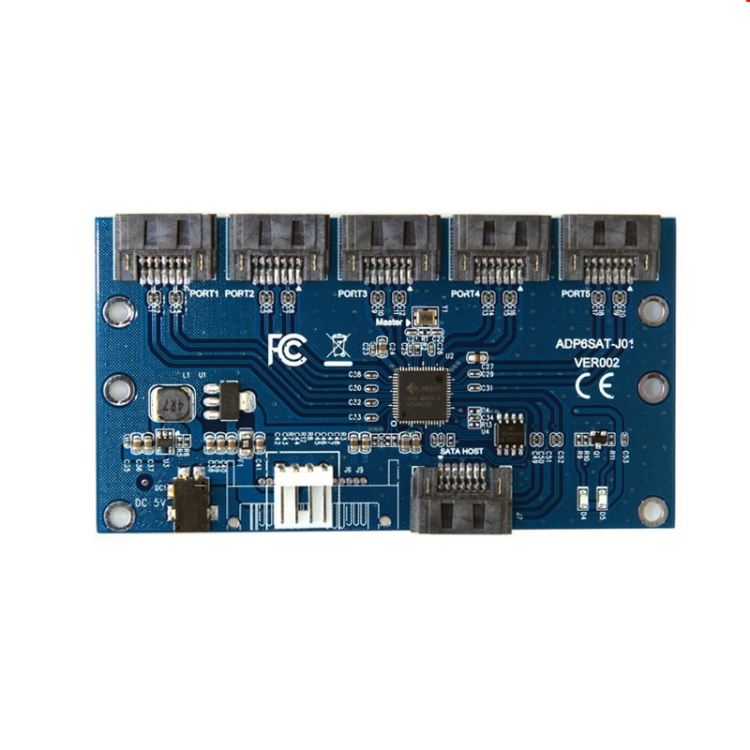

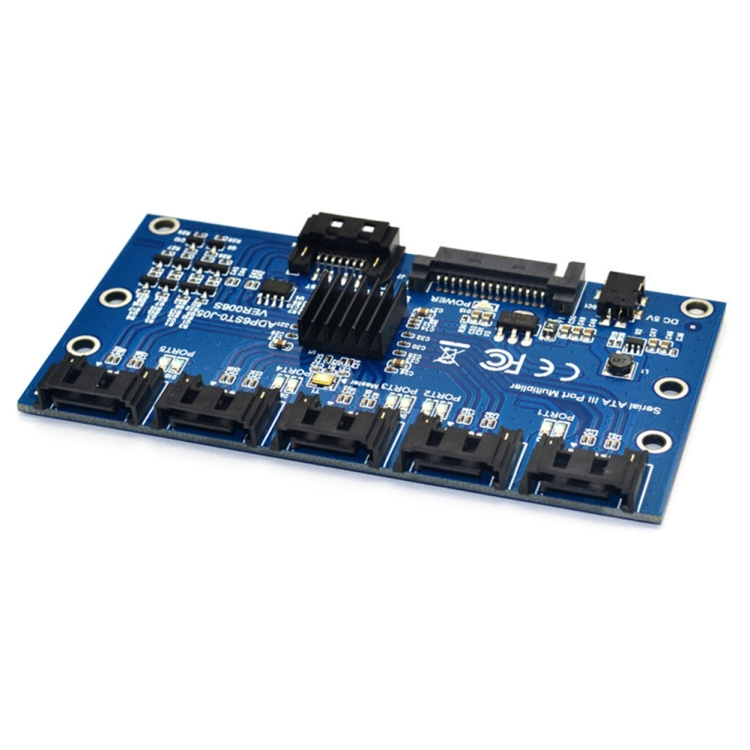

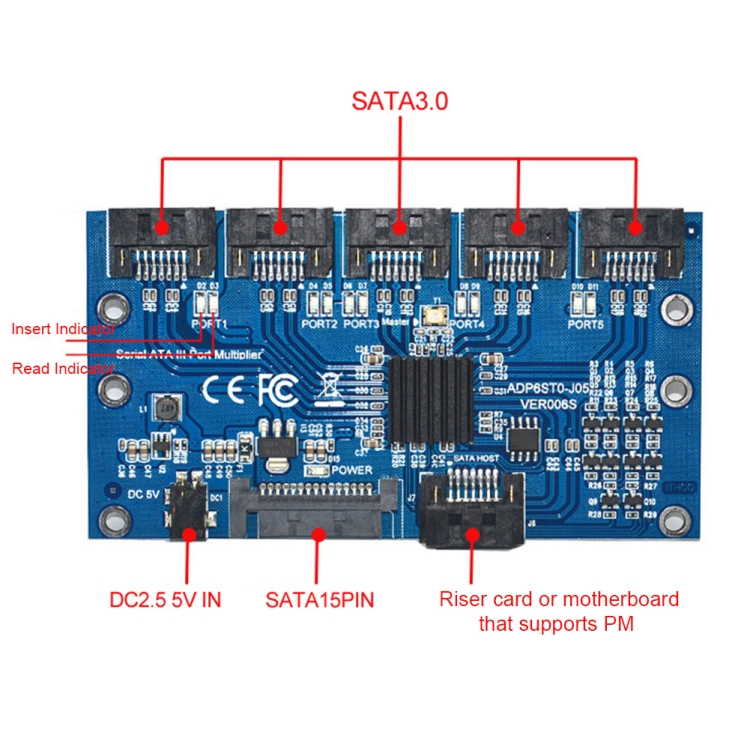

SATA Expansion Card 1 to 5 Port Riser Card

Feature:
1. Supports 6-port 6.0Gbps SATA III interface
2. Output swing control and automatic impedance calibration for SATA III PHY.
3. Supports asynchronous signal recovery.
4. Supports spread spectrum clocking.
5. Supports partial / slumber power saving mode.
6. Automatically speed negotiation.
7. Supports BIST and loopback mode.
8. Supports staggered spin-up (Optional).
9. Supports Hot-Plug.
10. Supports asynchronous notification.
11. Supports ATAPI drives.
12. Supports command-based and FIS-based swit.

Specification:
Product name: SATA3.0 1 to 5 expansion card
Product master: JMICRON JMB575
Product interface: SATA 7PIN
Support system: for WINXP, WIN7, WIN8, WIN10

Warm Tips:
1. This extension card must support the PM (SATA PORT MULTIPLIER) function of the motherboard or the extension card to recognize 5 hard disks.
2. The main motherboard SATA does not support this function. If it is not supported, only one card can be recognized.
3. You must plug in the SATA or DC2.5 power supply to the expansion card.

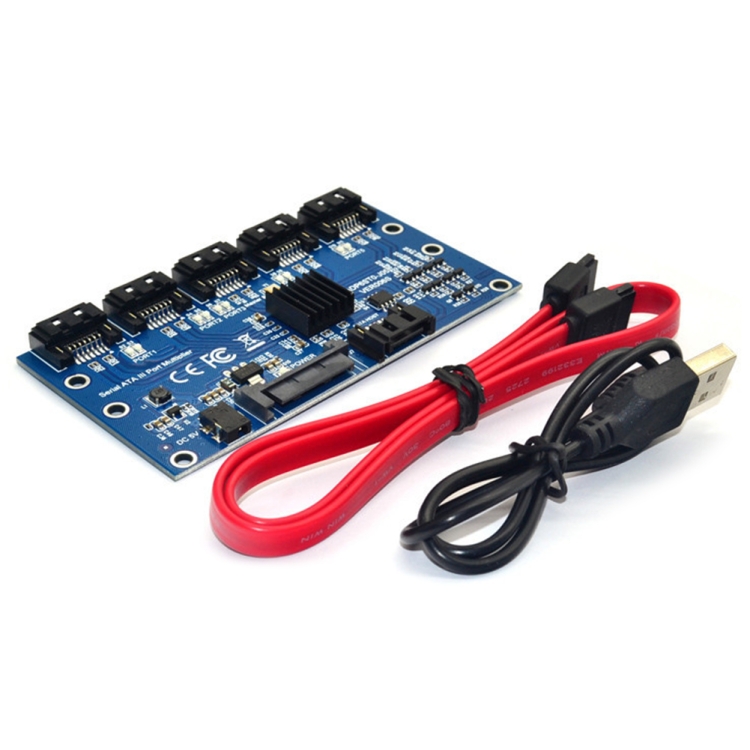

Include:
1 x SATA Expansion Card
1 x USB-DC Power Cable
