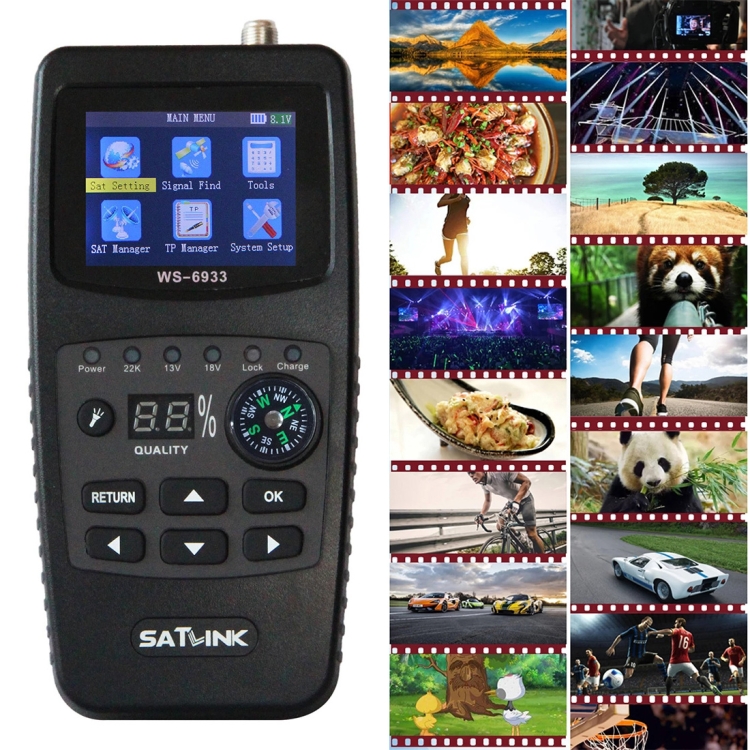

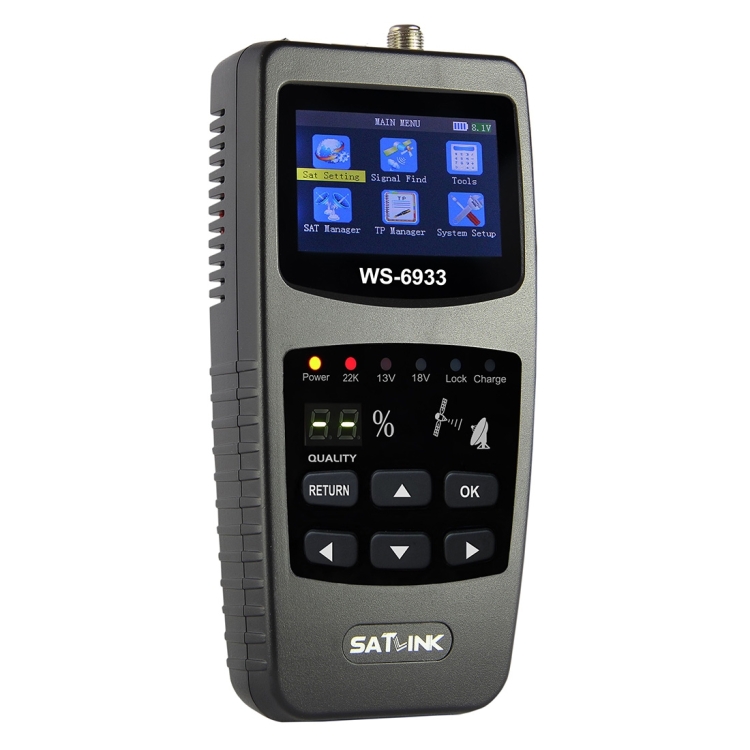

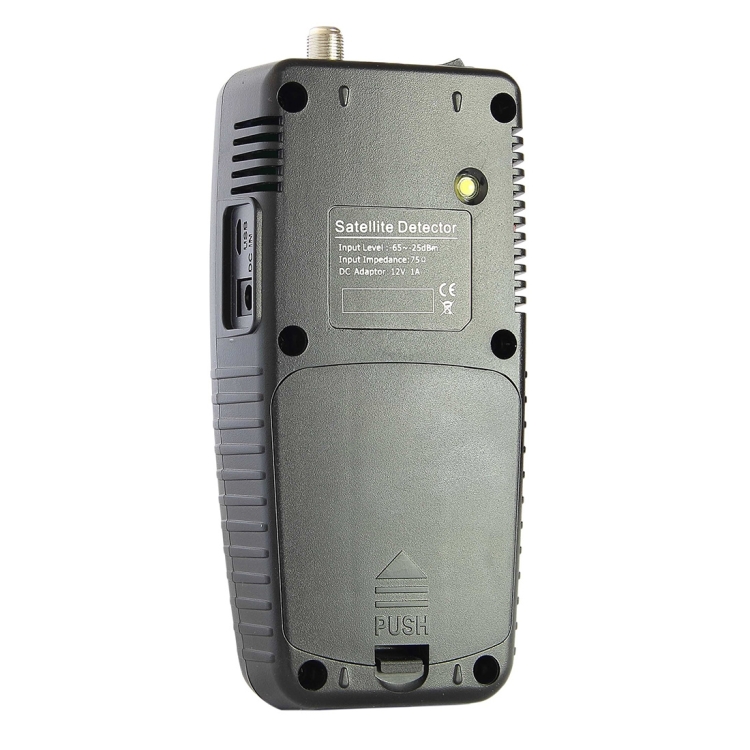

SATLINK WS6933 Portable Digital Satellite Finder Meter, 2.1 inch LCD Colour Screen, DVB-S2/S Signal Pointer
AED 431.33 AED 431.33
Description
1. 2.1 inch LCD screen display, 240(RGB)x320 TFT positive transflective, 36.72(W)x48.96(H)MM2 active area.
2. Input frequency 950~2150MHz.
3. Input Level -65~ -25dBm, input impedance 75 ohm.
4. Measurement type: Signal strength, quality; ber; pwr.
5. Sound for locking dignal.
6. Support DISEQC 1.0 /1.1 and 22khz tone.
7. LNB Power Supply: 18/13V(Max 300mA).
8. Beep Integrated.
9. 7.4V/800mAh lion battery included, max operating time: 3 hours.
10. DC adapter: Output: DC12V/1A, Input: 100-240VAC 50/60Hz, USB port for software upgrades, data protocol: USB to RS-232.
11. Band switch control: 22KHz.
12. Demodulation type: QPSK, 8PSK.
13. Power consumption: Max. 5W.
14. Connector type: F type.
Specifications
Additional information
| Weight | 0.714 kg |
|---|---|
| Dimensions | 23.0 × 21.0 × 6.0 cm |
| Color | EU Plug, AU Plug, UK Plug, US Plug |
| Option | SP-2100, WS6906, WS6916, WS6933 |
